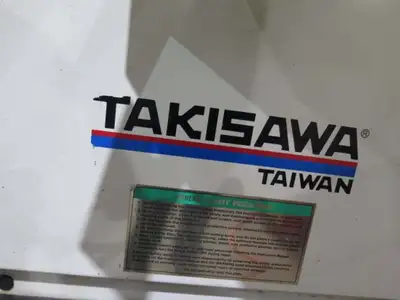

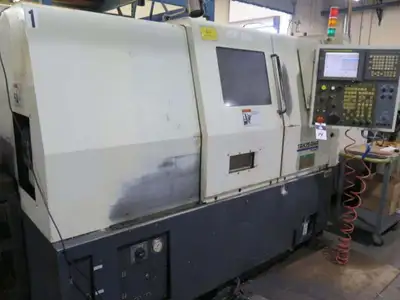

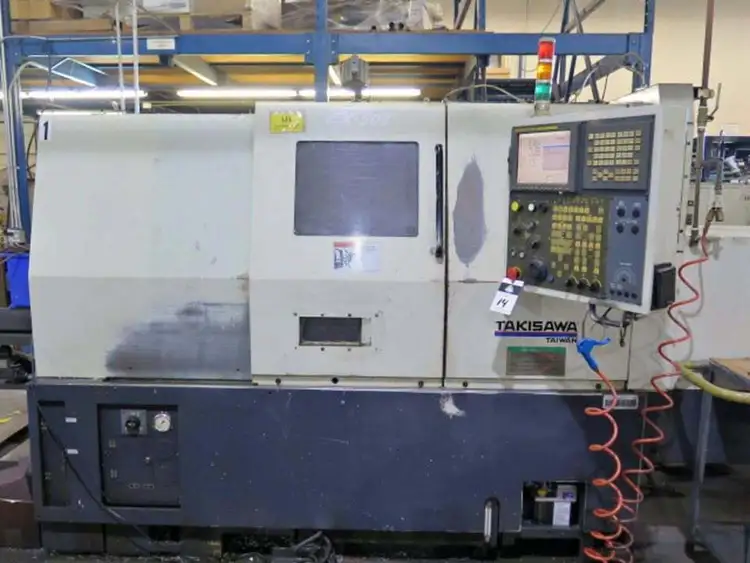

2008 TAKISAWA EX 508
Have one to sell?
ConditionUsed
1 available
Swing: 16.5"
Max. Turning Diameter: 11.8"
Max. Turning Length: 15.3"
Spindle Specs:
-Headstock: 2
-Speeds: 4,000 RPM
-Min. Indexing Angles: 0.001
-Spindle Nose: JIS A2-6
-Thru Hole: Main - 2.48" / Sub - 1.81"
Sub Spindle Specs:
-Travel: 23.6"
-Rapid Traverse: 944 IPM
-Feed rate: 944 IPM
-Jog Feed rate: 0 - 49.6 IPM

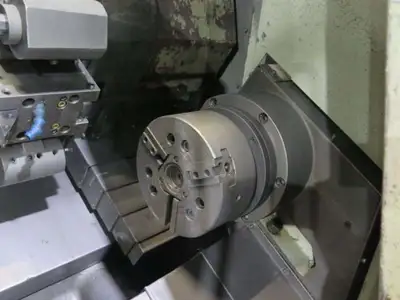

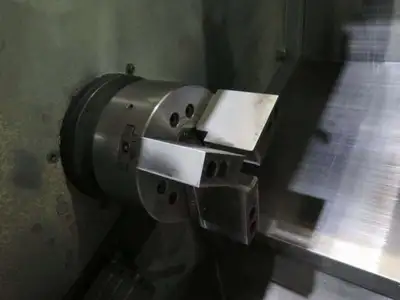

-8" 3-Jaw Chuck

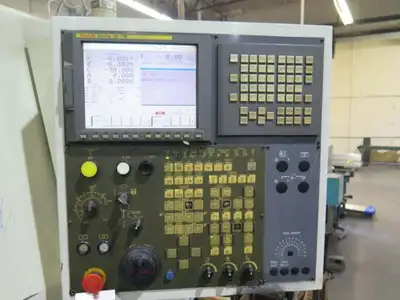

Fanuc Series 18i-TB

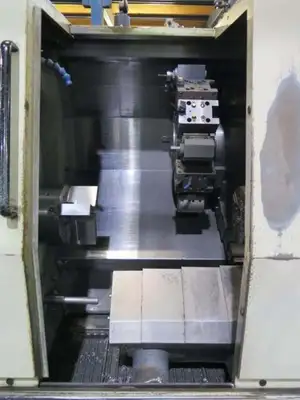

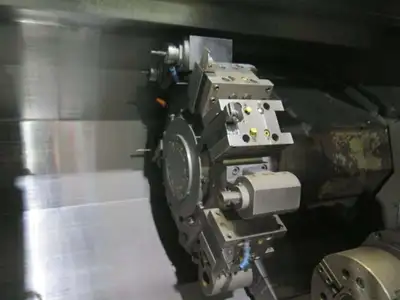

Turret: 12-Station Drum Type
Two (2) Pedals
Habor Oil Cooler
Chip Conveyor
Main Spindle: S20 Collets
Sub Spindle: 16C Collets
Live Toolholders: Straight, 90°
Static Toolholders: Boring Bar, Turning
Electrics: 220 Volts, 3 Phase, 50-60 Cycle, 10 Amps
