2020 HAAS VF-3SSYT

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-3SSYT
Year:
2020
Stock #:
X2X1845
Status:
For Sale

Description

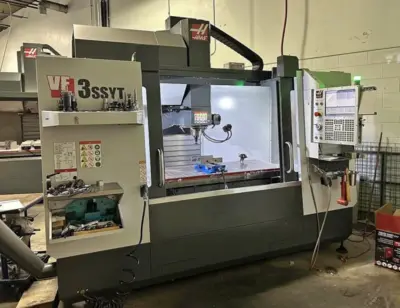

Vertical machining center, used; X: 40", Y: 26", Z: 25", 30 hp, 12,000 RPM, 24-tool ATC, CAT 40 taper, 54"x25" table. Max load 1,750 lbs, rapid traverse 1,400 IPM. Includes vice.

X40"1,016 mm
Y26"660.4 mm
Z25"635 mm
Power30 hp22.4 kW
RPM12,000 RPM12,000 RPM
# ATC2424
TaperCAT 40CAT 40
Table-W25"635 mm
Table-L54"1,371.6 mm
# Axis33
ControlCNC (HAAS)CNC (HAAS)
Dimensions154" x 102" x 109"154" x 102" x 109"
Weight16,500 Lbs16,500 Lbs

Max. Table Load Capacity 1,750 Lbs
Rapid Traverse Rate X, Y & Z 1,400 IPM

Vice Included
