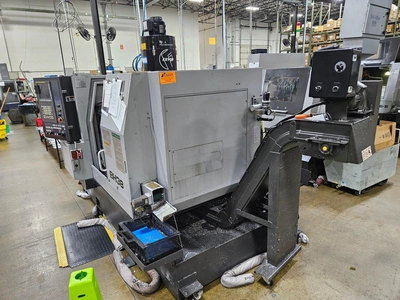

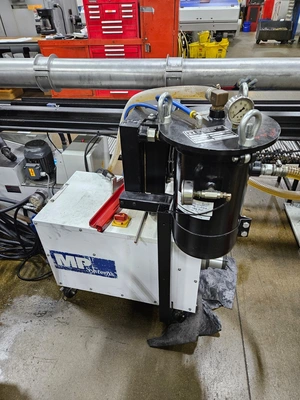

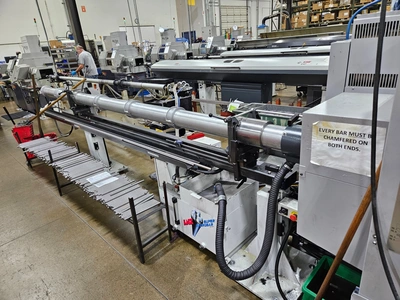

2010 TSUGAMI BH-38 W/ BARFEEDER
Have one to sell?
ConditionUsed
1 available

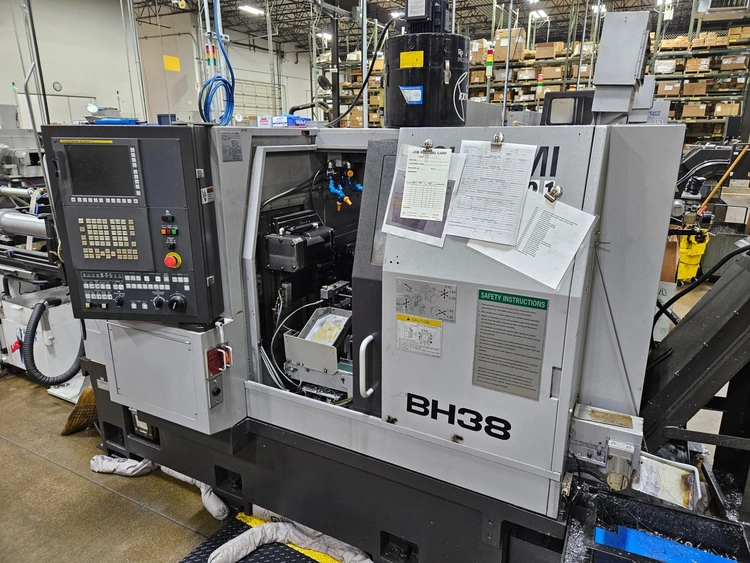

For sale: Used TSUGAMI BH-38Y Swiss Type Automatic Screw Machine. Features an 8-38.1 mm barstock capacity, max 250 mm machining length, and 8-axis configuration. Equipped with FANUC 31i-B control. Handles up to 20 tools.
Machining Range / Capacity
Working barstock diameter: φ8 to φ38.1 mm
Max. machining length: 250 mm
Main Spindle
Speed: 200 to 5,000 min⁻¹
Indexing: 5°
Back Spindle
Speed: 200 to 7,000 min⁻¹
Indexing: 5° (Optional: 2 positions)

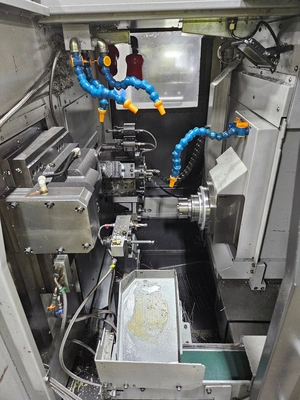

Tooling - Front Tool Post
Max. drilling diameter: φ16 mm
Max. tapping size: M14
Cross drill speed: 200 to 5,000 min⁻¹ (optional)
Tool size: 20 mm × 20 mm × 125 mm
Tooling - Turret
Stations: 12
Max. drilling diameter: φ38 mm
Max. tapping size: M12
Max. rotary tool drilling diameter: φ10 mm
Max. rotary tool tapping size: M6
Rotary tool speed: 200 to 5,000 min⁻¹
Tool size: 20 mm × 20 mm × 125 mm
Tooling - Back Tool Post
Max. drilling diameter: φ10 mm
Max. tapping size: M6
Tool size: 16 mm × 16 mm × 125 mm
Tooling Capacity
Total tool storage capacity: 20 tools (5 front, 3 back, 12 turret)
Axes Configuration
Controlled axes: 8
Axes: X1, Y1, X2, Z1, Z2, X3, Y3, Z3
Rapid Traverse Rates
X1, Y1, X2, Z1, Z2: 24 m/min
X3, Y3, Z3: 18 m/min
Motors
Main spindle: 7.5 / 11 kW
Back spindle: 3.7 / 5.5 kW
Coolant pump: 1.0 kW
Lubricating oil pump: 1.4 kW
Other motors: 0.39 / 0.62 kW (50/60 Hz), 3 W
Power / Air Requirements
Power supply: 45 KVA
Compressed air: 0.5 MPa or more
Air consumption: 100 NL/min
FANUC 31i-B
Live Tooling
