2006 HAAS TL-2
Have one to sell?
ConditionUsed
1 available

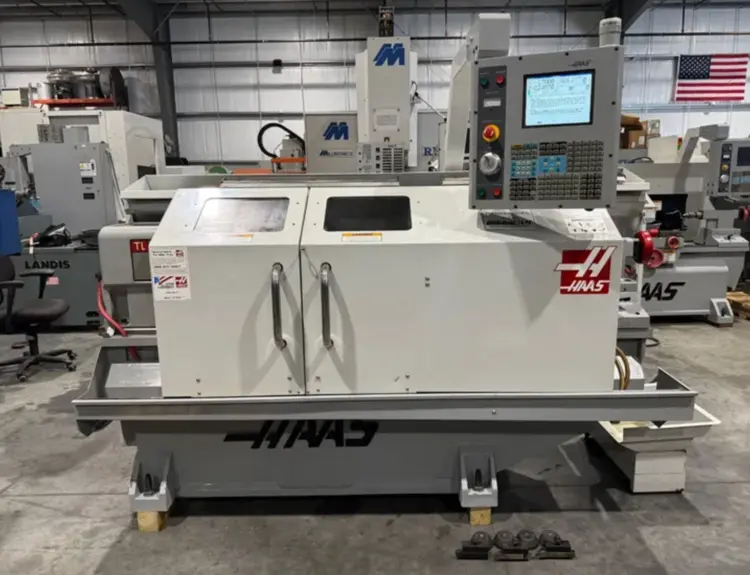

CNC lathe, used: Max 20" swing, 16" cutting diameter. Equipped with HAAS CNC control, tailstock, live center, 10" BTC chuck, coolant system, tool post, and 4 holders. Servo time: 14,074 hrs, spindle: 760 hrs.
Maximum swing- 20”
Swing over cross slide- 11”
Maximum cutting diameter- 16”
Maximum cutting length- 48”
Distance between centers- 48”
X axis travel- 8”
Z axis travel- 48”
Rapids on X axis- 450 I.P.M.
Rapids on Z axis- 450 I.P.M.
Spindle nose- A2-6
Max spindle speed- 1800 R.P.M.
Spindle bore- 3.00”

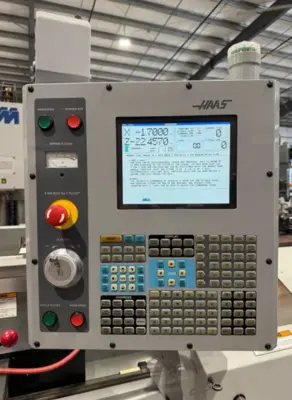

HAAS CNC control
Machine hours- Servo time-14,074, Motion time-6,347, Spindle time 760
Control options- DNC, Quick code, Brushless bar feeder interface, intuitive programming system

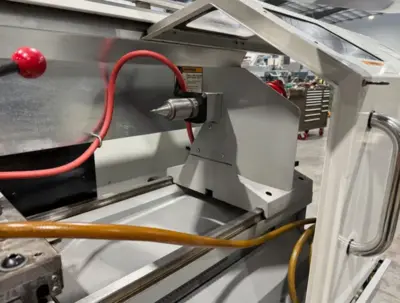

Tailstock

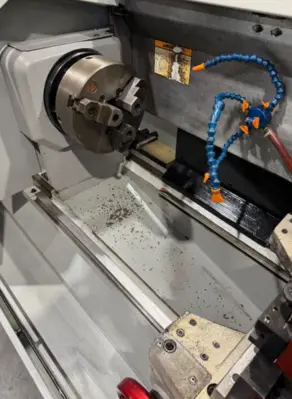

BTC 10” “Set-Tru” 3 Jaw Chuck
Live center

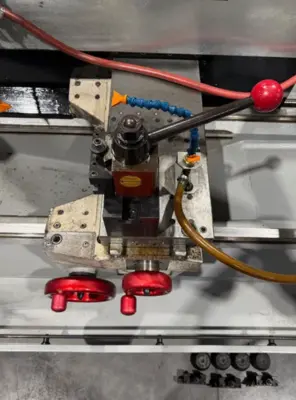

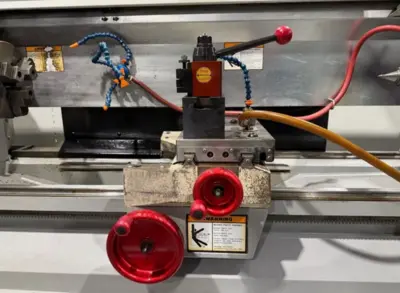

Dorain tool post & (4) holders
Coolant tank & pump

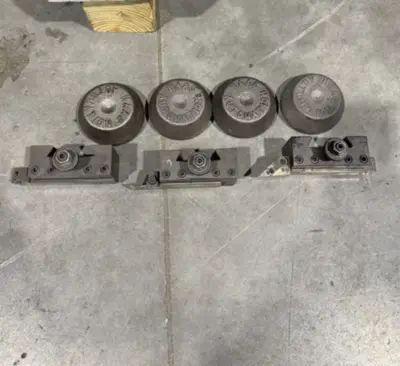

(4) Leveling pads
Splatter shield
