Used 2006 HANKOOK PROTEC 9NC | Oil Field & Hollow Spindle Lathes
Have one to sell?
ConditionUsed
1 available

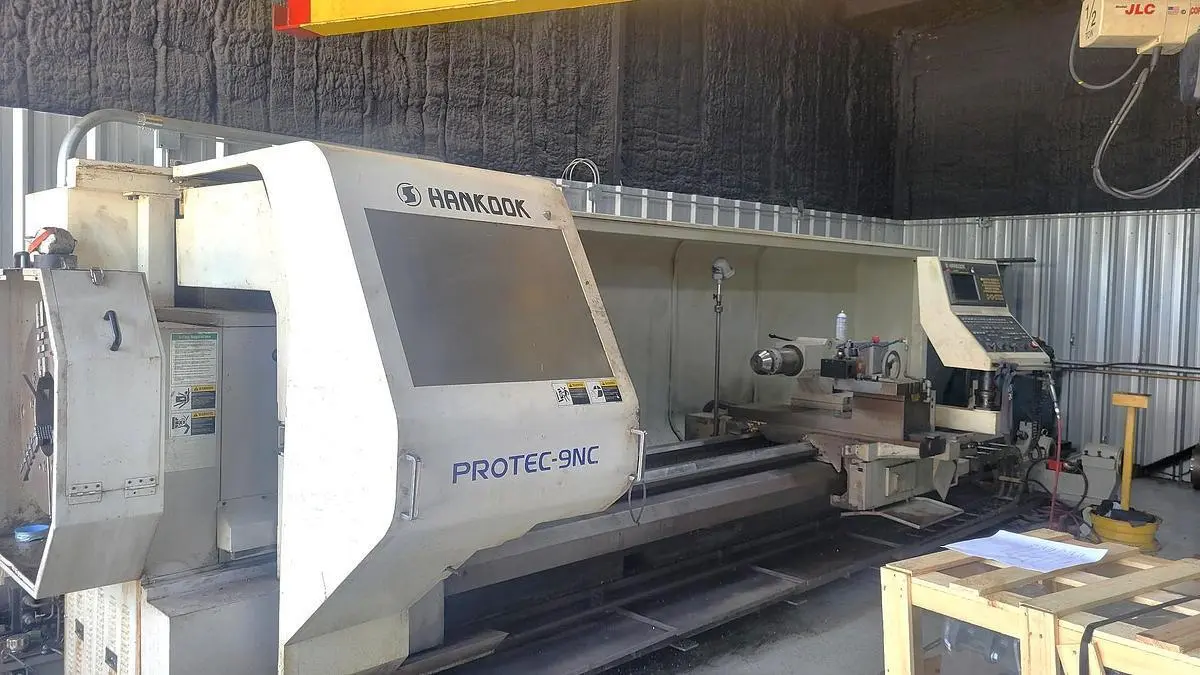

Hankook PROTEC 9NC oil field lathe, 2006 model, used. Features: Fanuc 21i-TB control, 25" manual chucks front/rear, max swing 37.43", spindle speed 3-630 RPM, chip conveyor, 10" spindle bore, enclosed with slide doors. Includes remote jog handle.

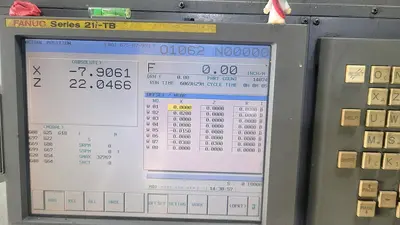

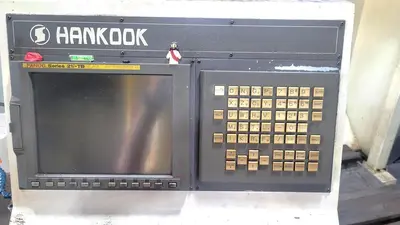

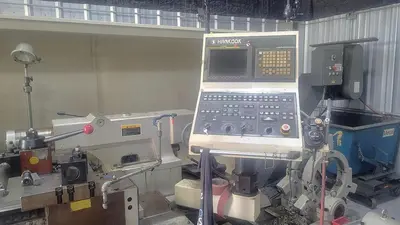

Machine Control Fanuc 21i-TB Control
Chuck Size (2) 25" Manual Chucks on Front & Rear
Maximum Swing 37.43"
Maximum Turning Diameter 37.43"
Maximum Swing Over Cross Slide 24.8"
Maximum Turning Length 151"
Distance Between Centers 157.6"
Maximum Bar Capacity 10"
Maximum Load Between Centers 11,000 lbs.
X-axis travel 21.1"
Z-Axis Travel 151"
Spindle Nose / Spindle Bore A2-15" / 10"
Spindle Speed 3 - 630 RPM
Spindle Motor 35 HP - 2 Speed
Number of Turret Positions Tool Post
Rapid Traverse Rates X / Z 157.6 IPM / 236 IPM
Tailstock Quill Travel / Quill Diameter 9.85" / MT #6
Machine Dimensions LxWxH 255" x 87" x 73"
Machine Weight 20,200 lbs
10" Spindle Bore/Bar Capacity
Chip Conveyor
25" 4 Jaw Manual Chuck on Front

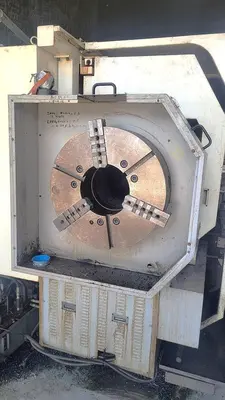

25" 3 Jaw Manual Chuck on Rear

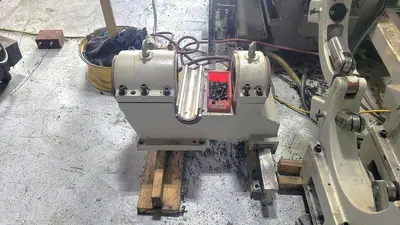

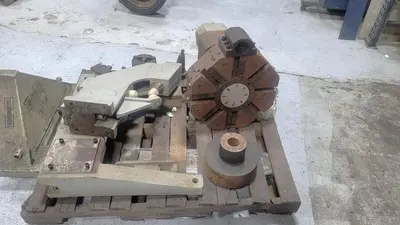

8 Station Turret that Mounts on Cross Slide

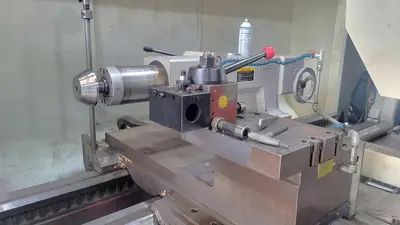

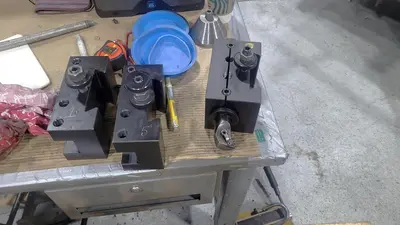

Dorian Tool Post Mounted on Cross Slide
Heavy Duty Tailstock

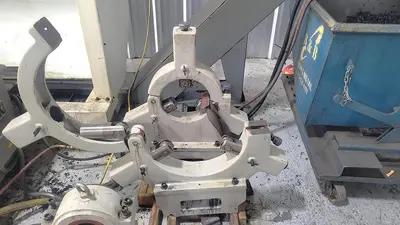

(2) Roller Type Steady Rests

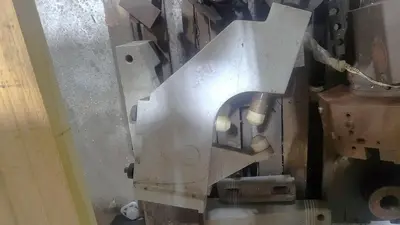

(1) Follower Rest

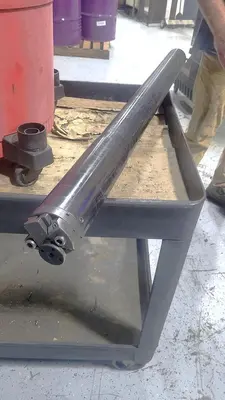

Long Boring Bar Attachment
Remote Jog Handle

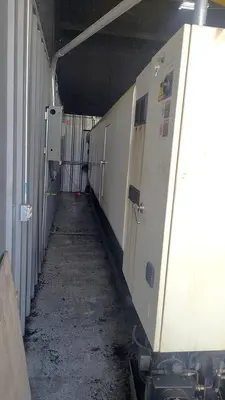

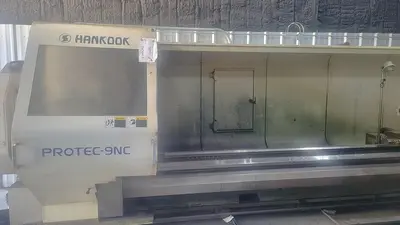

Enclosed with Slide Doors
Work Light
Coolant System with Tank & Pump
Hard Disk Interface
RS 232 Port Interface

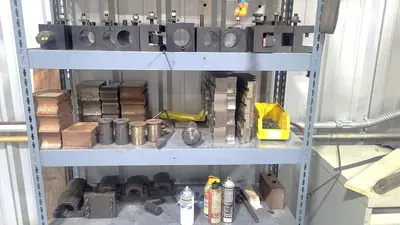

All Available Tooling
All Available Manuals
