Used 2021 HAAS GR-510 | Gantry Machining Centers (incld. Bridge & Double Column)
Have one to sell?
ConditionUsed
1 available

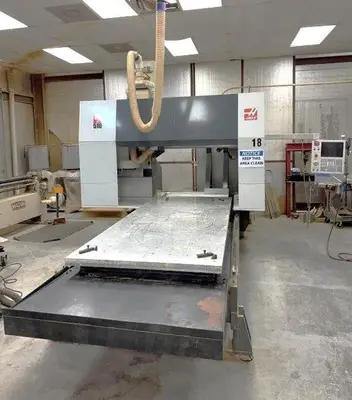

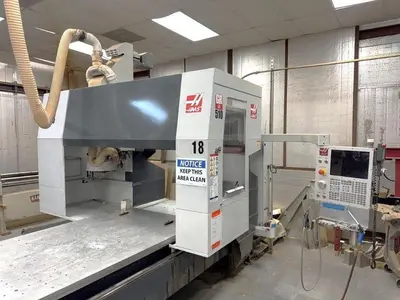

2021 HAAS GR-510 used gantry machining center, featuring 121" X, 61" Y, and 24" Z axes. Equipped with 15 power and 8100 RPM, Taper 40. Table measures 53"W x 122"L.
Control Haas CNC Control
Table Size 122" x 53"
Maximum Weight on Table 6,000 lbs.
Distance Between Columns 62"
X-Axis Travel 121"
Y-Axis Travel 61"
Z-Axis Travel 24"
Distance Spindle Nose to Table Top 4" - 24"
Spindle Taper CAT 40
Spindle Speeds 10,000 RPM
Spindle Motor 15 HP
Number of Tool Positions 10 Station Tool Changer
Maximum Tool Diameter 3.5"
Rapid Traverse Rates X / Y / Z 800 IPM / 2100 IPM / 1100 IPM
Machine Dimensions 208" x 114" x 125"
Machine Weight 20,000 lbs.
Haas Wireless Probing Package
Extended 24" Z Axis Travel
10,000 RPM Greased Packed Spindle
10 Station Tool Changer
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Visual Part Programming System
Remote Jog Handle - XL Touch Screen
Aluminum Table Design
Early Power Failure Detection Module
Coolant System with Tank & Pump
Media Display M130
Haas Connect
Haas Drop
Wifi for Haas Machines
Media Display
Ethernet Interface
**ONLY 1,700 Spindle Run Hours Approx**
**Price new at $231,975 as equipped**
