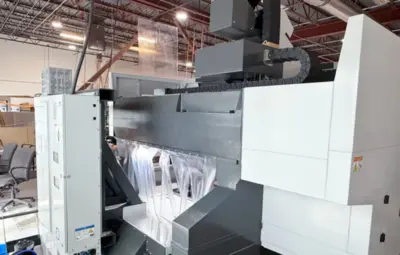

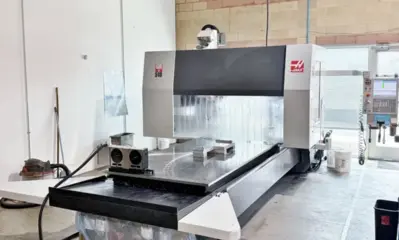

Used 2022 HAAS GR-510 | Gantry Machining Centers (incld. Bridge & Double Column)
Have one to sell?
ConditionUsed
1 available

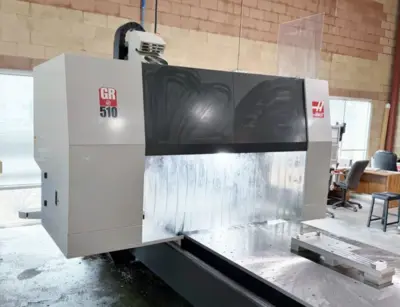

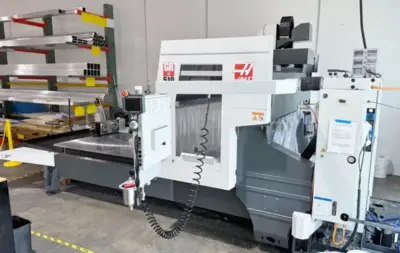

Boost your production with this 2022 used HAAS GR-510 Gantry Machining Center. Enjoy a spacious 122"x53" table and advanced features like HAAS NextGen Control, dual-platter rotary table, 20-station tool changer, and only 221 cutting hours (approx).
TABLE LENGTH 122"
TABLE WIDTH 53"
TABLE CAPACITY 6,000 lb
X-AXIS TRAVEL 121"
Y-AXIS TRAVEL 61"
Z-AXIS TRAVEL 11"
DISTANCE FROM WORK FACE TO SPINDLE 8.5"
SPINDLE SPEED 8,100 RPM
SPINDLE MOTOR 15 hp
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 20
ROTARY OR TRUNNION Yes

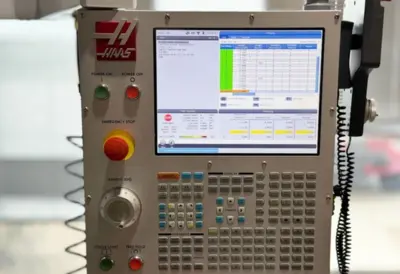

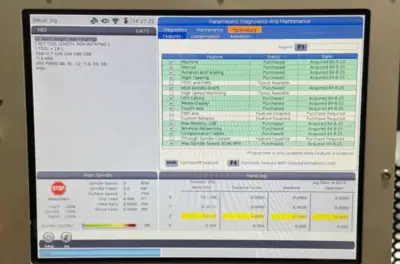

HAAS NEXTGEN CONTROL (TOUCH SCREEN)

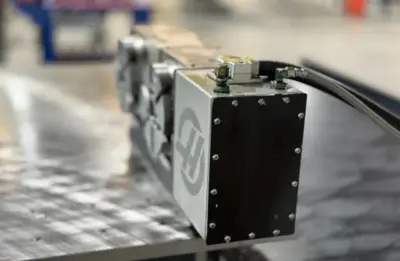

HAAS HRT160-2 DUAL-PLATTER ROTARY TABLE (NEVER USED)
4TH AXIS DRIVE & WIRING

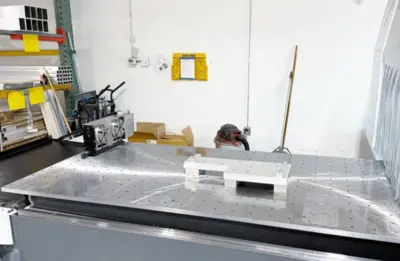

STEEL TABLE (INCH)
EXTENDED Z-AXIS CLEARANCE (6” COLUMN RISER)

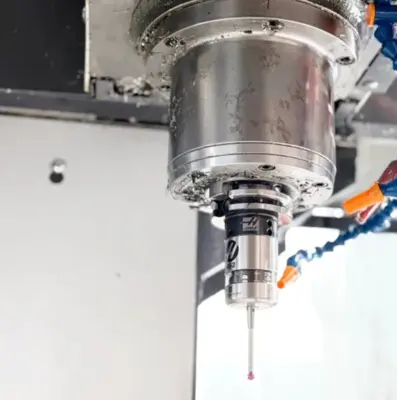

RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)

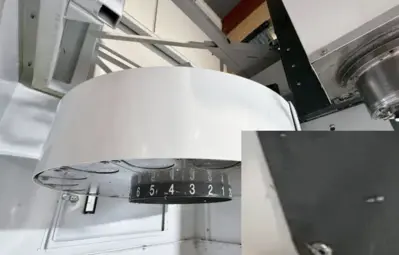

20-STATION TOOL CHANGER
AUTOMATIC AIR GUN
CHIP & COOLANT GUARD
DUAL CHIP TRAY FILTER KIT
GANTRY ROUTER COOLANT SYSTEM
MINIMUM QUANTITY LUBRICATION SYSTEM

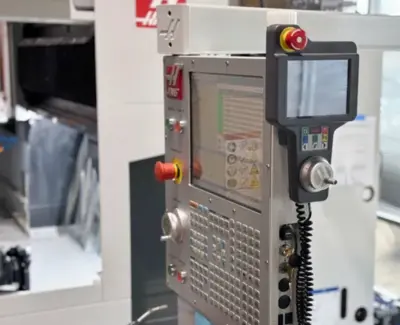

REMOTE JOG HANDLE (TOUCH SCREEN)
EARLY POWER-FAILURE DETECTION MODULE
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
COORDINATE ROTATION & SCALING
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
USB PORT
ETHERNET
1GB MEMORY
HAAS CONNECT: REMOTE MONITORING
HAAS DROP
WIFI CAMERA

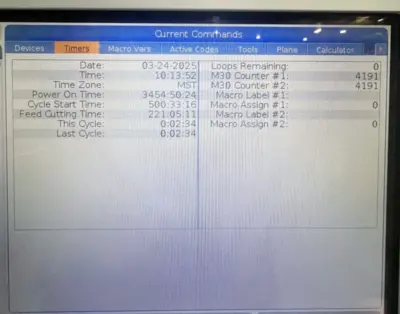

** AS OF APRIL 2025, CUTTING TIME – 221 HOURS
** MACHINE IS LIKE-NEW
** MACHINE CUT ALUMINUM ONLY
** FULL REPLACEMENT COST, AS EQUIPPED - $250,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
