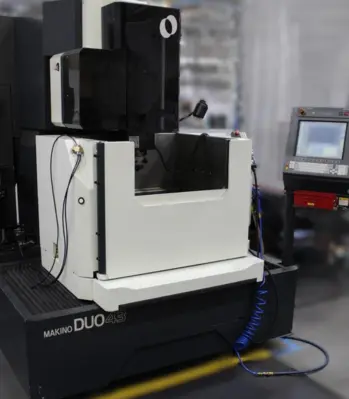

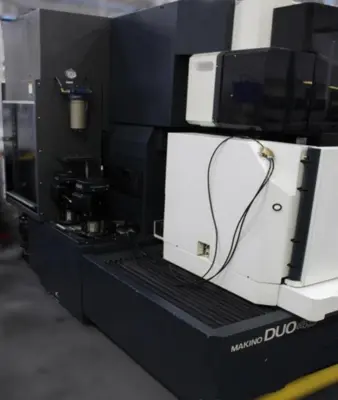

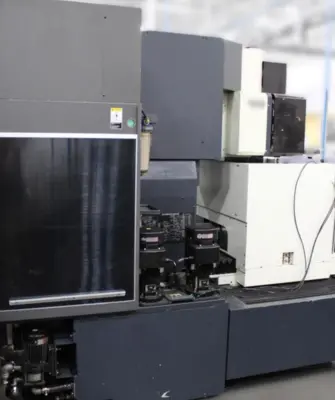

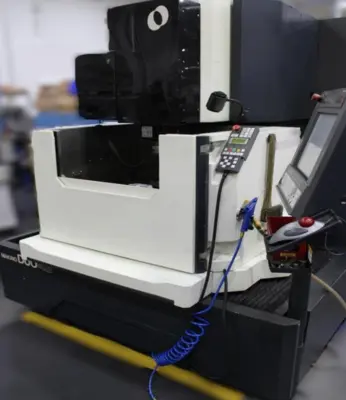

2008 MAKINO DUO43
Have one to sell?
ConditionUsed
1 available

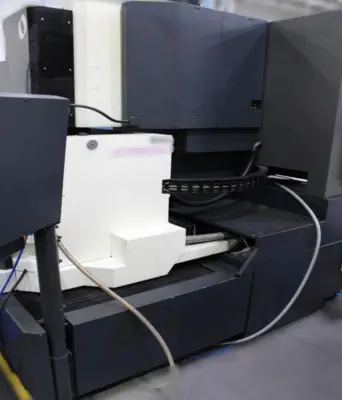

Used Wire EDM, featuring MGW-S6 control, 17.8" x 11.8" x 12.6" XYZ travel, +/-15° taper cutting, 35 lbs wire spool, and 30" per hour max speed. Equipped with auto wire threading and chiller.
X-Axis Travel: 17.8"
Y-Axis Travel: 11.8"
Z-Axis Travel: 12.6"

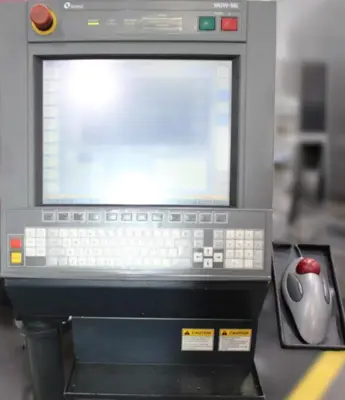

Control: MGW-S6
U/V Axis Travel: 3.97" x 3.97"
Degree Taper Cutting: +/-15 Degree / 3.93"

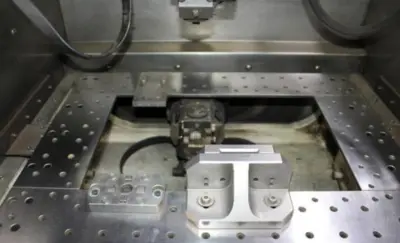

Inside Tank Dimensions: 27.9" x 22.04"
Power Requirement: 200/3/60
Max Workpiece Size: 27.95" x 22.04" x 11.81"
Max Table Weight: 1,764 Lbs

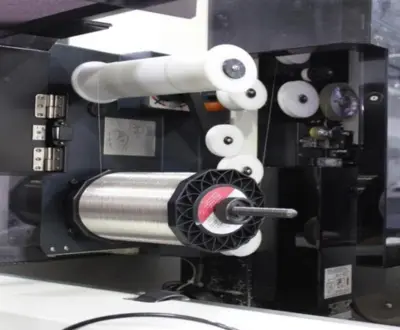

Wire Spool: 35 Lbs
Max Cutting Speed: 30" Per Hour
Glass Scale Feedback: X/Y Axis
Machine Dimensions: 74.8" x 110.8" x 88.6"
Machine Weight: 11,023 Lbs
Required Floor Space: 126.7" x 153.7"

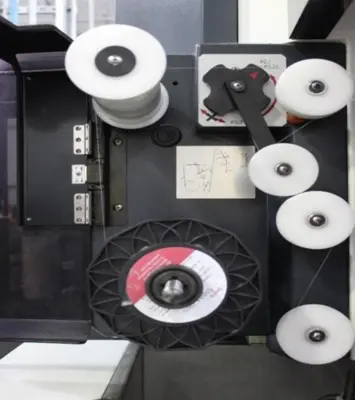

Auto Wire Threading

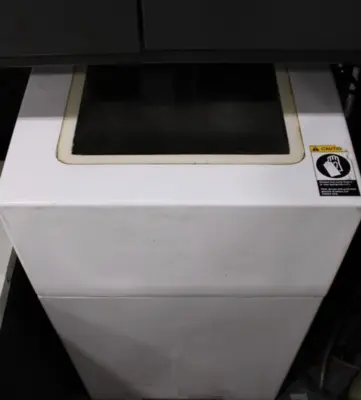

Chiller

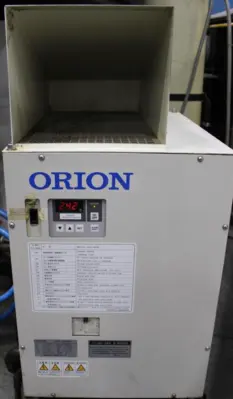

Dielectric Chiller
