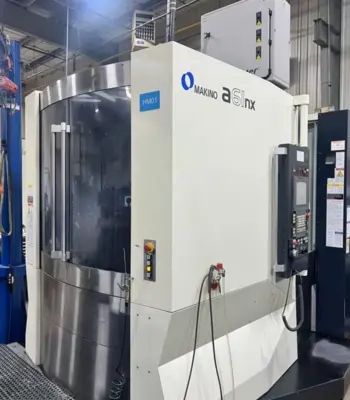

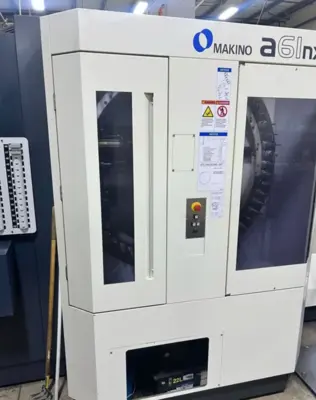

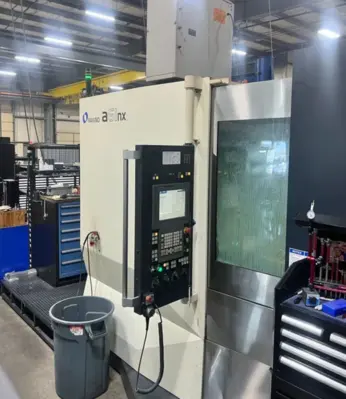

2015 MAKINO A61NX
Have one to sell?
ConditionUsed
1 available

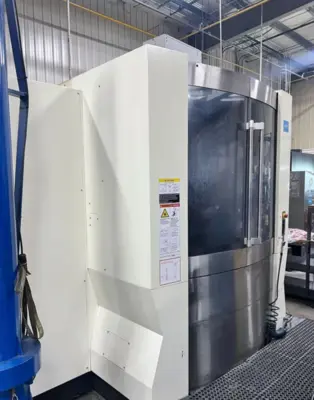

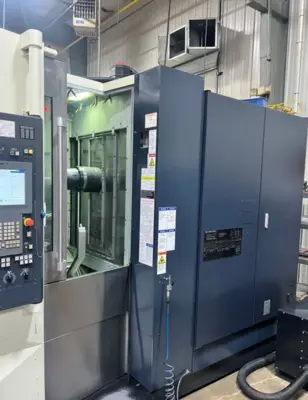

Used Horizontal Machining Center. Features 28.7"x25.6"x31.5" XYZ travel, 35 hp, 14,000 RPM spindle, CAT40 taper. Equipped with PRO 5 Control, full 4th axis, through-spindle coolant, and more. Cutting time: 10,860 hours as of June 2025.
PALLET WIDTH 19.7"
PALLET LENGTH 19.7"

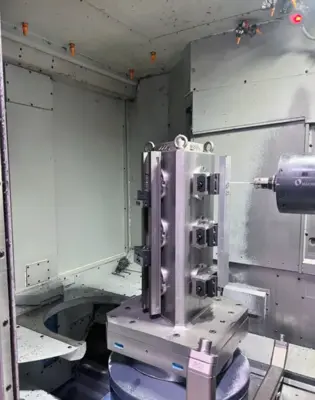

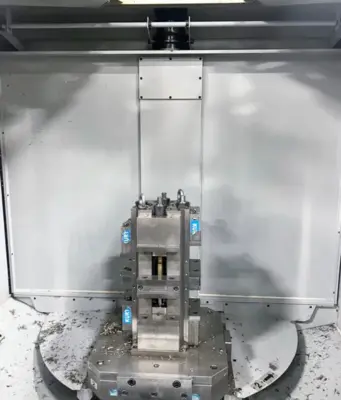

PALLET INDEXING FULL 4TH
NUMBER OF PALLETS 2
MAX WORKPIECE WEIGHT 1,212 lb
X-AXIS TRAVEL 28.7"
Y-AXIS TRAVEL 25.6"
Z-AXIS TRAVEL 31.5"
SPINDLE SPEED 14,000 RPM
SPINDLE MOTOR 35 hp
SPINDLE TAPER CAT 40
TOOL POSITIONS (ATC) 60

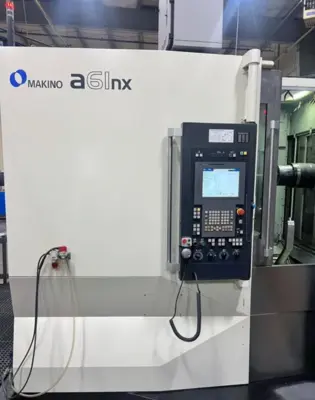

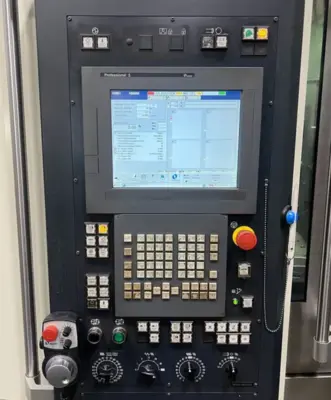

PRO 5 CONTROL
BOX WAYS
FULL 4TH AXIS
THROUGH-SPINDLE COOLANT & AIR (300 PSI)
PQI/RENISHAW OMP400 RENGAGE PROBING SYSTEM

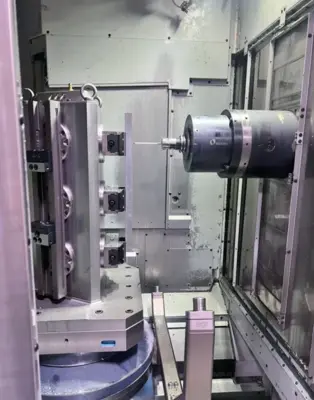

14,000 RPM SPINDLE (CAT 40)

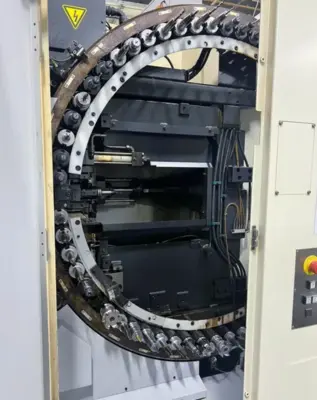

60 TOOL POSITIONS
MISTBUSTER MIST COLLECTOR

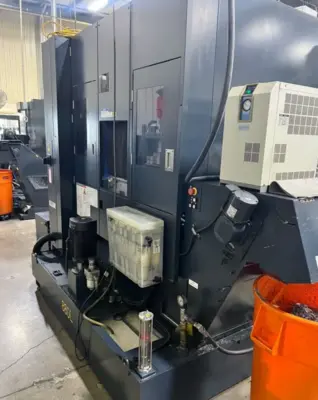

CHIP CONVEYOR (LEFT DISCHARGE)
600 MACRO CUSTOM VARIABLES
HIGH-SPEED SKIP FUNCTION
HELICAL INTERPOLATION
RIGID TAPPING
460V POWER

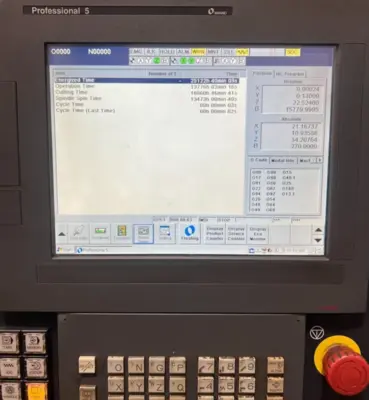

** AS OF JUNE 2025, CUTTING TIME – 10,860 HOURS
