2008 SOUTHWESTERN INDUSTRIES TRL-1840SX
Have one to sell?
ConditionUsed
1 available

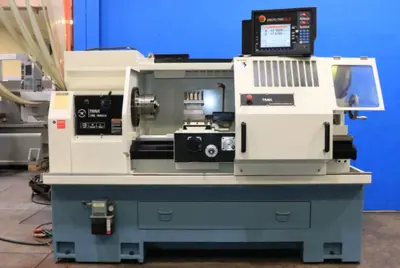

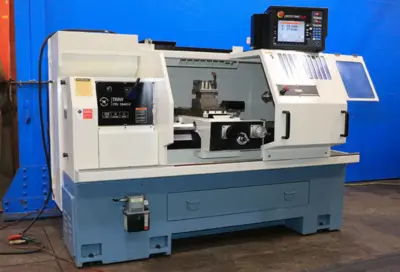

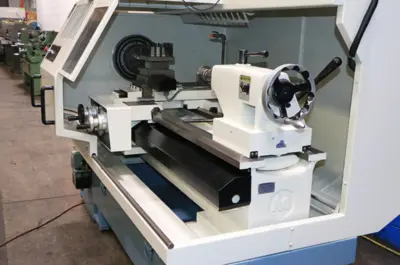

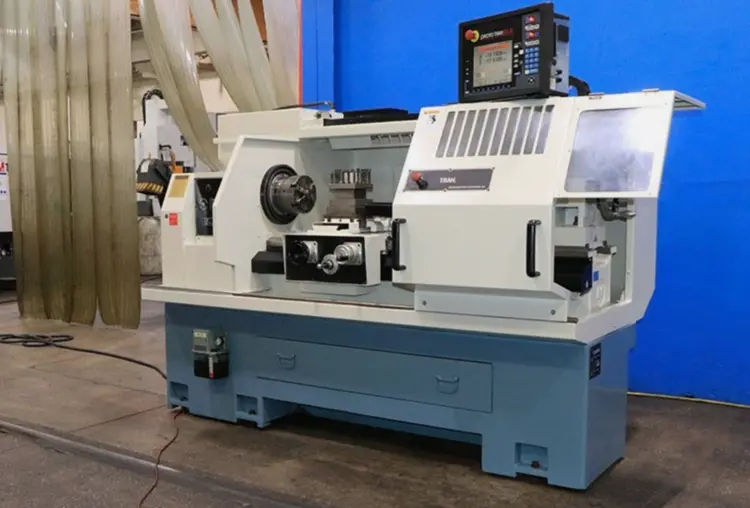

Used Southwestern Industries TRL-1840SX. This used engine lathe offers an 18.5" swing over bed, 40" longitudinal travel, and advanced CNC capabilities. Features include a 10 HP spindle drive and automatic lubrication system.
HEIGHT OF CENTERS .......................... 9"
SWING OVER BED ............................. 18-1/2"
SWING OVER CROSS SLIDE ..................... 9"
SWING OVER SADDLE WINGS .................... 17"
MAX DISTANCE BETWEEN CENTERS ............... 40.2"
CROSS SLIDE TRAVEL (X) ..................... 13"
LONGITUDINAL TRAVEL (Z) .................... 40"

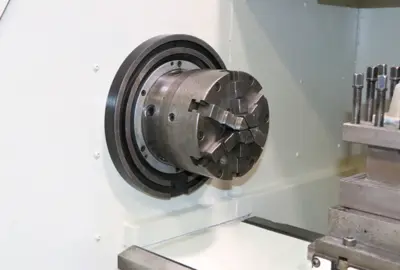

SPINDLE TAPER, CAMLOCK, SIZE ............... D1-6

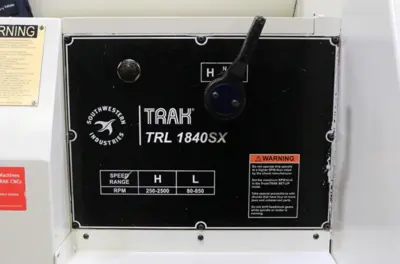

SPINDLE SPEED RANGE (3), INF VAR ........... 50 - 2500 RPM
SPINDLE BORE ............................... 2.36"
TAPER IN HEADSTOCK SPINDLE ................. #6 MT
TAPER IN HEADSTOCK SPINDLE REDUCTION SLEEVE. #4 MT

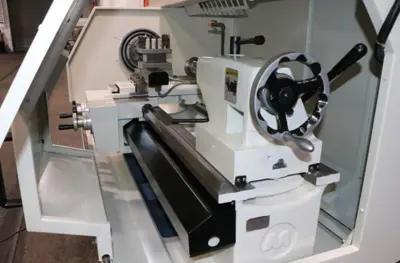

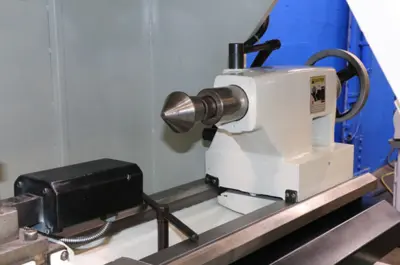

TAILSTOCK QUILL TRAVEL ..................... 6.3"
TAILSTOCK QUILL DIAMETER ................... 2.95"
TAILSTOCK QUILL TAPER HOLE ................. #5 MT
APPROX WEIGHT .............................. 4,500 LBS
APPROX DIMENSIONS .......................... 94" X 53" X 70"

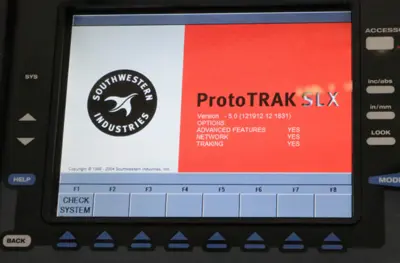

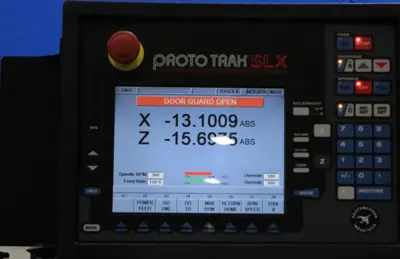

- SOUTHWESTERN INDUSTRIES-PROTOTRAK MODEL: SLX CNC CONTROL
- ADVANCED FEATURES, NETWORK, TRAKING
- TWO AXIS DIGITAL READOUT DURING MANUAL OPERATION
- CONSTANT SURFACE SPEED & PROGRAMMABLE SPINDLE SPEEDS
- SERVO MOTORS & GROUND BALLSCREWS
- AC SPINDLE DRIVE

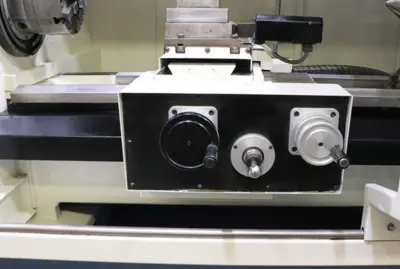

- ELECTRONIC HANDWHEELS FOR X & Z MANUAL TRAVERSE
- JOGSTICK FOR CONVENIENT JOG AT RAPID TRAVELS
- UNLIMITED NUMBER OF THREAD PITCHES & UP TO 10 LEADS

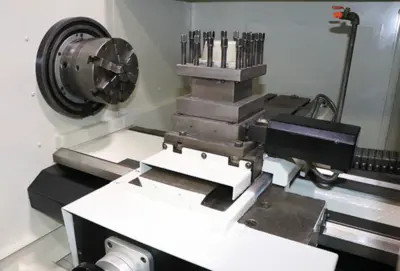

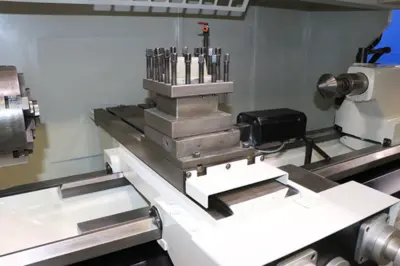

- FOUR STATION PROGRAMMABLE STAR INDEXABLE TOOLPOST

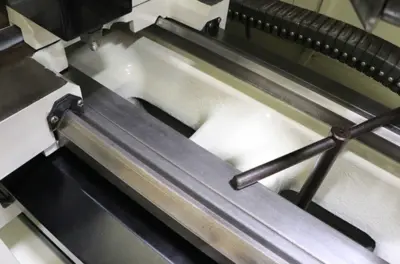

- HARDENED & GROUND BED WAYS
- AUTOMATIC CENTRAL LUBRICATION SYSTEM FOR THE SLIDE WAYS & BALLSCREWS
- COOLANT SYSTEM
- 10 HORSE POWER 3/60/230 VOLT SPINDLE DRIVE MOTOR & ELECTRICAL CONTROLS
