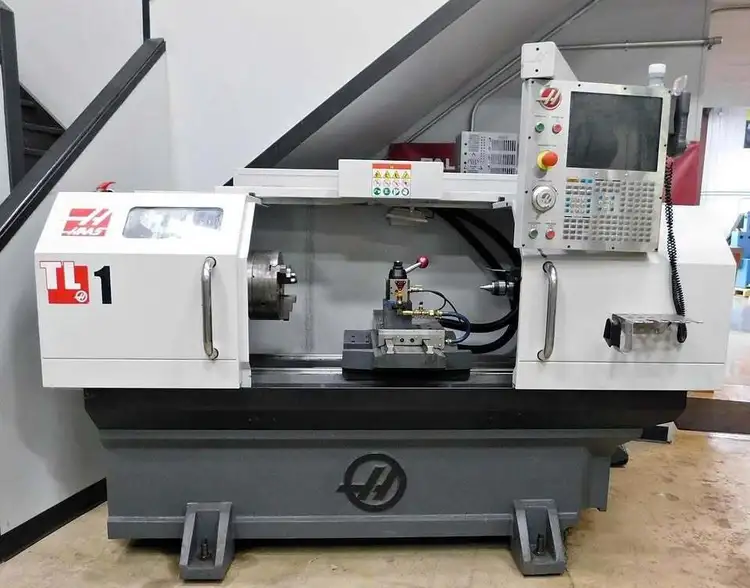

2017 HAAS TL-1
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe available. Features: 20" swing, 762 mm machining length, 8" chuck, 12 hp power, 2,000 RPM max, 16" turning dia. Includes Samchully chuck, tailstock, coolant system, and manual pulse generator.
Maximum swing 20"
Maximum swing over cross slide 9.5"
Maximum turning diameter 16"
Maximum distance between centers 30"
Maximum cutting length 30"
X axis travel 8"
Z axis travel 30"
Maximum spindle speed 1800 RPM
Spindle nose AZ-6
Spindle bore 3"
Spindle drive 10 HP

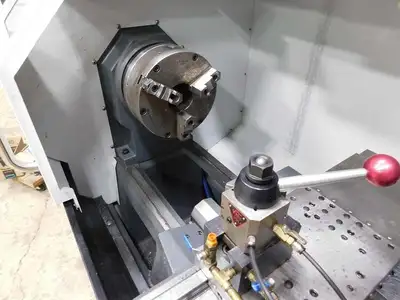

10” Samchully 3 jaw chuck

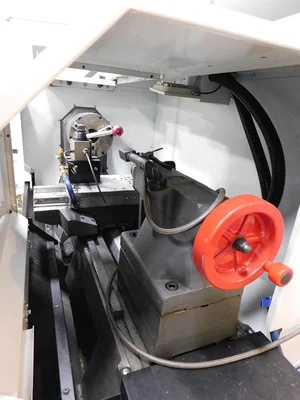

Manual tailstock
Coolant system

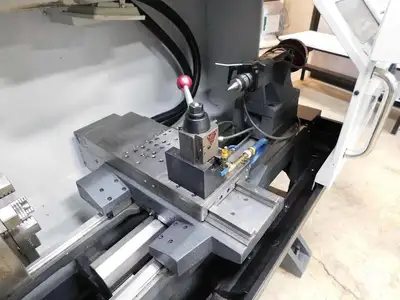

Quick change tool post
Manual pulse generator
