| X | 30" | 762 mm |
| Y | 20" | 508 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 100" x 92" x 100" | 100" x 92" x 100" |
| Weight | 8,500 pounds | 8,500 pounds |
Rapid Traverse Rate (X/Y/Z) 710 ipm
- Haas CNC Control Touch Screen

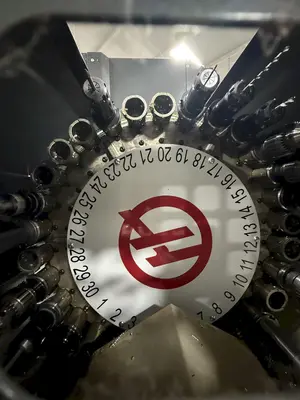

- 30+1 Side-Mount Tool Changer
- Chip Tray Filter Kit
- Automatic Air Gun
- Programmable Coolant Nozzle
- Window Air Blast
- 55-Gallon Coolant Tank
- Chip Auger
- Standard Program Memory, 1 GB
- Coordinate Rotation and Scaling
- Early Power-Failure Detection Module
- Ethernet Interface
- Haas Connect: Remote monitoring
- Haas Drop
- High-Speed Machining
- User-Definable Macros
- Media Display M-Code; M130
- Large Remote Jog Handle with Touchscreen Display
- Rigid Tapping
- Safe Run
- WiFi Connection for the Haas Control
- High-Intensity Lighting, 24V
- Table Auxiliary Air Supply
This equipment is currently unavailable. Similar equipment available now is shown below.
