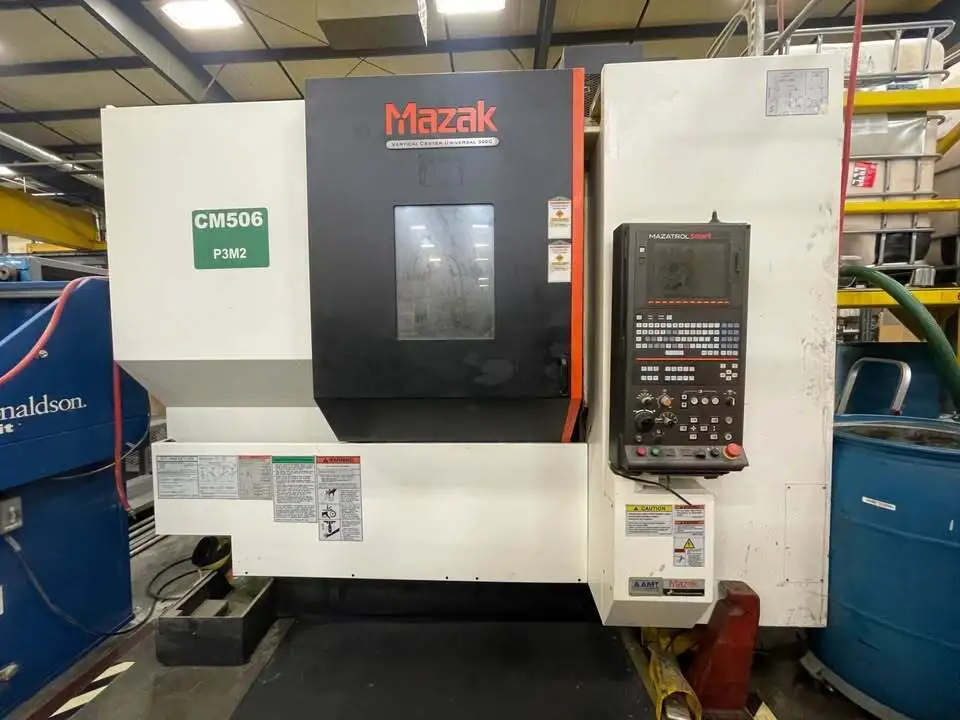

2013 MAZAK VERTICAL CENTER UNIVERSAL 500C
Have one to sell?
ConditionUsed
1 available
Table Size 19.68” x 39.37”
Maximum Workpiece Size 35.43” x 19.68”
Maximum Workpiece Height 12.00”
X-Axis Travel 39.37”
Y-Axis Travel 19.88”
Z-Axis Travel 20.07”
Table Surface Height 31.49”
Maximum Table Weight Capacity 1322 LBS
Optional Spindle Speed / Motor (30min) 12,000 RPM / 15 HP
Spindle Taper CT40
Rapid Traverse (X,Y,Z) 945 IPM
Number of Tools 30
Maximum Tool Diameter (adjacent tools) 3.15”
Maximum Tool Diameter ( no adjacent tools) 4.92”
Maximum Tool Length 10.23”
Tool Shank Type CAT #40
Machine Height 131.81”
Floor Space (w x l) 108.26” x 125”
MAZATROL SMART CONTROL
Tool Setter
Coolant Tank
