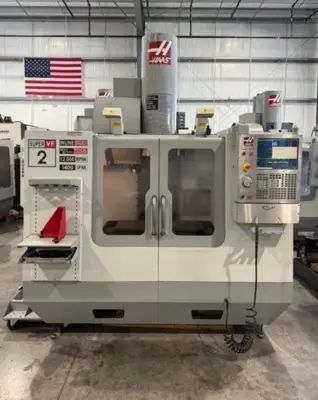

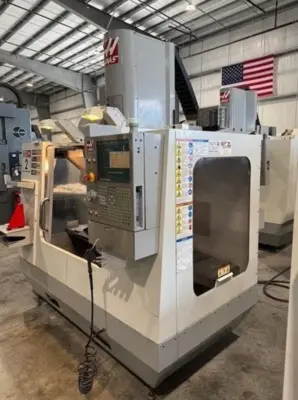

2009 HAAS VF-2SS
Have one to sell?
ConditionUsed
1 available

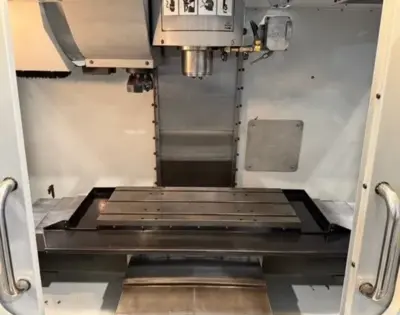

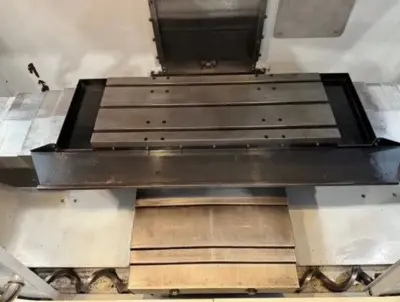

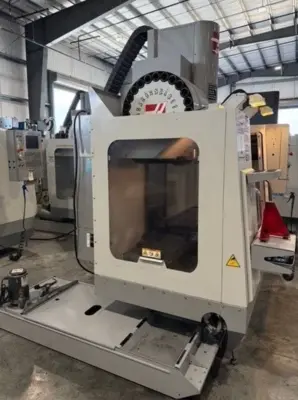

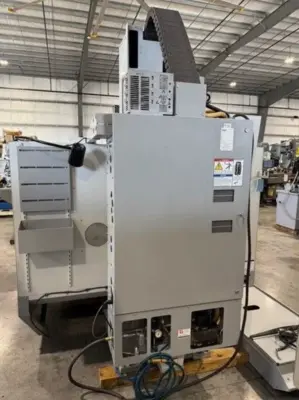

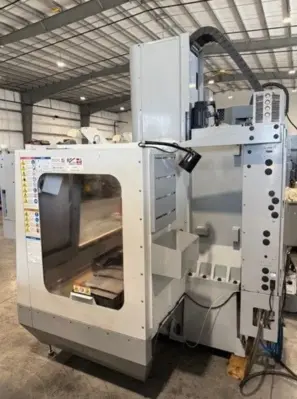

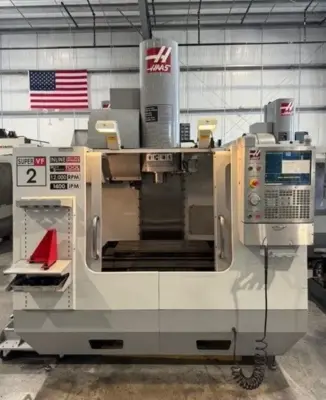

Used Vertical Machining Center. Features 30" x 16" x 20" travel, 30 hp, 12,000 RPM, CAT-40 taper, 24-tool changer, and more. Includes a programmable coolant nozzle, chip auger, and advanced control options. 20,969 power-on hours.
Maximum distance from spindle nose to table- 24”
Minimum distance from spindle nose to table- 4”
Maximum spindle speeds- 12,000 R.P.M.
Spindle taper- CAT-40
Max cutting rate- 833 I.P.M.
X,Y,Z Rapids- 1400 I.P.M.
Side mount tool changer- 24 +1 Tool capacity
Max tool diameter- 3”
Max tool length- 11”
Max tool weight - 12 Lbs.
Programmable coolant nozzle
Side mount tool changer 24 tool station

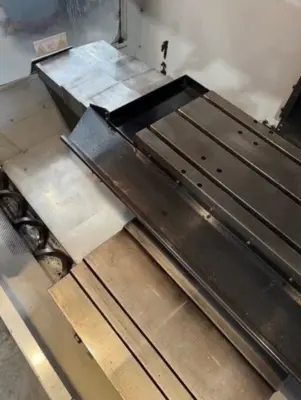

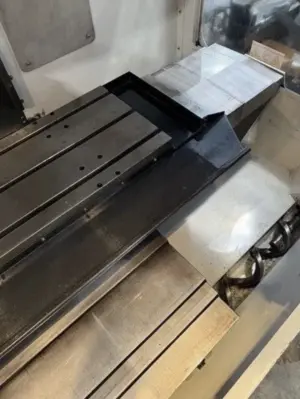

Telescopic way covers
Air gun
(4) Leveling pads

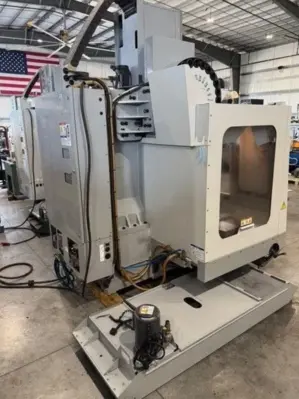

Chip Auger
BIJUR automatic lubrication system
External coolant tank & Coolant pump
Control options- Programmable coolant, Rigid tapping, DNC, Quick code, Pre-Orient Tap, HSM High Speed Machining, Advanced Tool Management
Machine hours -Power on time- 20,969, Cycle time- 4,531, Feed cutting time- 3,402
Machine is wired for 230 Volt / 3 phase / 60 HZ
