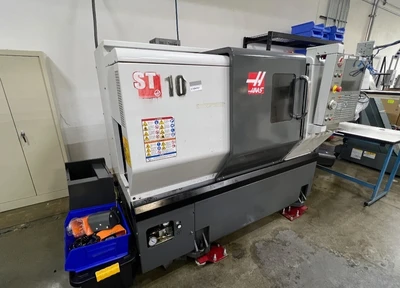

2013 HAAS ST-10
Have one to sell?
ConditionUsed
1 available
CNC Lathe in used condition. Features max part swing of 16.5", 12-station BOT turret, rapid traverse rate 1200 IPM, 6,000 RPM max spindle speed, 15 HP motor, belt chip conveyor, parts catcher, and rigid tapping probing.
Max Part Swing: 16.5"
Max Cutting Diameter: 12" (with BOT turret)
X Axis Travel: 7.9"
Z Axis Travel: 16"
Rapid Traverse Rate (X & Z): 1200 IPM
Spindle Bore: 2.31"
Spindle Nose: A2-5
Max Spindle Speed: 6,000 RPM
Bar Capacity: 1.75"
Spindle Motor: 15 HP
Weight: 7,900 lbs.
12-Station Bolt On Turret
Belt Type

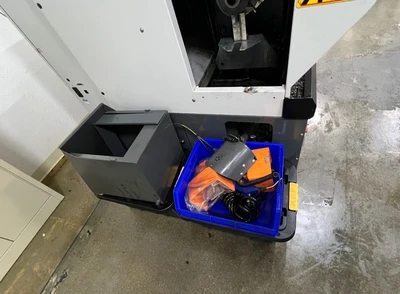

Chip Conveyor
Parts Catcher
Rigid Tapping Probing
