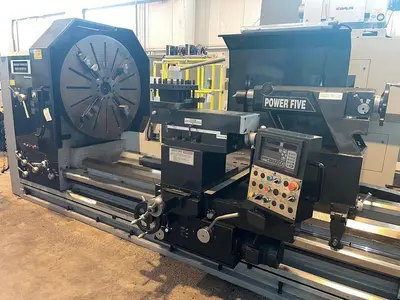

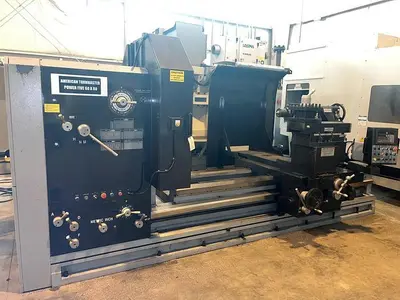

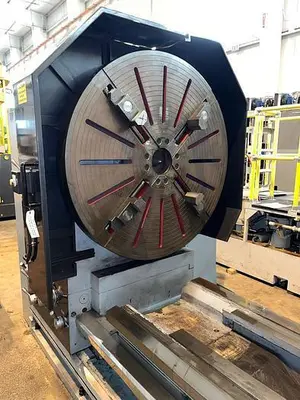

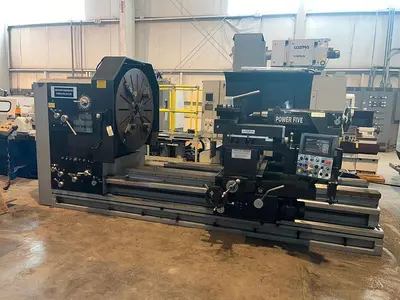

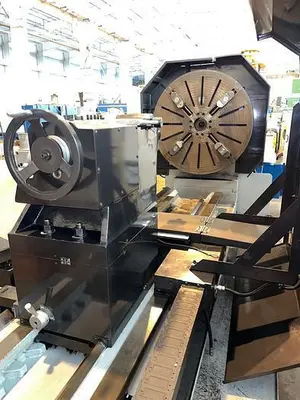

2015 REPUBLIC LAGUN American Turnmaster Power Five

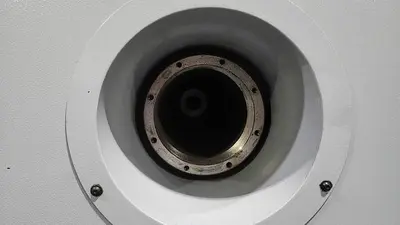

Hole Thru Spindle 6.02"
Swing Over Bed Ways, Actual 60.125"
Swing Thru Gap 80.25"
Swing Over Cross-Slide 47.25"
Distance Between Centers 80"
Length Of Gap 23.75"
Cross-Slide Cross Travel 31.5"
Top-Slide Travel, Power 15.75"
Longitudinal Travel 82"
(18) Spindle Speeds, Range 7 to 700 RPM
Longitudinal Feeds, Range .0018 to 0.1 IPR
Cross Feeds, Range .0009 to 0,05 IPR
Longitudinal Power Rapid Traverse, Rate 80 IPM
Cross Power Rapid Traverse, Rate 50 IPM
Leadscrew Pitch 2 TPI
(60) Inch Threads, Range 0.5 to 28 TPI
(60) Metric Threads, Range 1 to 56 MM
(60) Modular Threads, Range .25 to 14
Diametral Threads, Range 1 to 112"

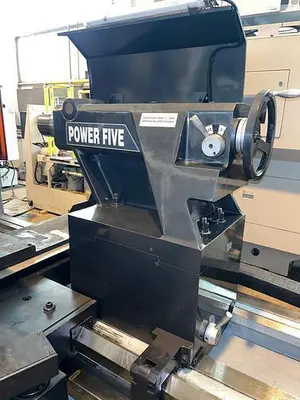

Tailstock Quill Diameter 5.75"
Tailstock Quill Traverse (2-Speed) 7.87"
Tailstock Quill Speed, Ratios 1:1 & 4:1
Tailstock Spindle Center 6 MT
Drive Motor Horsepower 30 HP
Overall Dimensions, L x W 14'x 7'
Overall Height 7'
Weight Approximately 31700 LBS
