2006 MAZAK INTEGREX E-500H
Have one to sell?
ConditionUsed
1 available

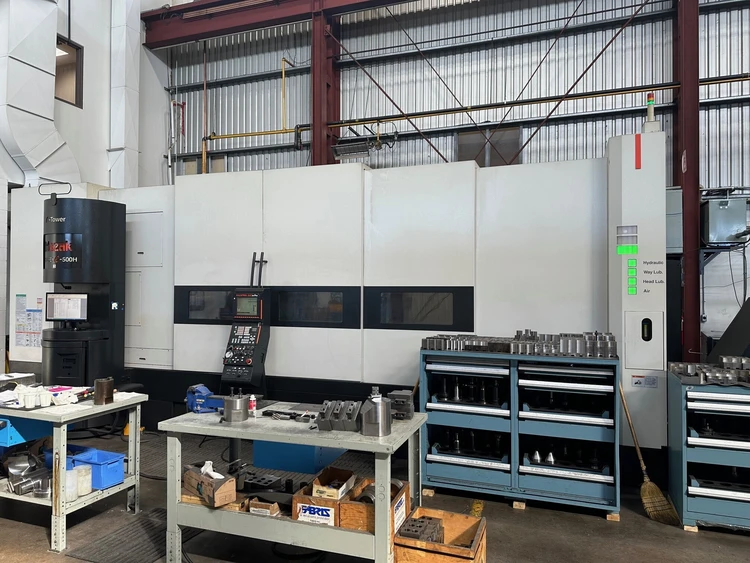

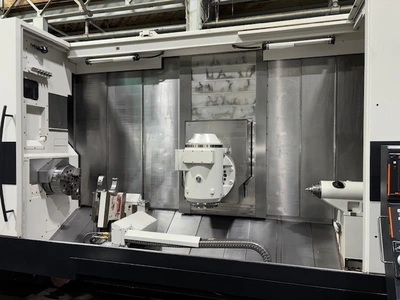

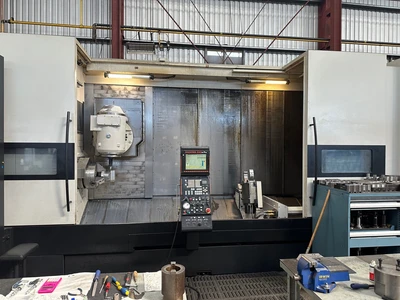

2006 MAZAK INTEGREX E-500H 5-Axis CNC Lathe. Features include a 32.28" max swing, 122.91" center distance, and advanced MAZATROL 640M PRO CNC control. Equipped with a 15" hydraulic chuck, 80-tool magazine, and laser measurement.
MAX. SWING .............. 32.28"
MAX. MACHINING DIAMETER . 32.28"
CENTER DISTANCE ......... 122.91"
BAR CAPACITY ............ 4.09"
X-AXIS TRAVEL ........... 34.25"
Y-AXIS TRAVEL ........... 19.69"
Z-AXIS TRAVEL ........... 122.91"
B-AXIS HEAD TILT ........ -30~+210 deg.
C-AXIS INDEX ............ 0.001 deg.
SPINDLE NOSE ............ A2-11
SPINDLE SPEED ........... 2,000 RPM
MAIN MOTOR .............. 40HP
LIVE TOOL MOTOR ......... 25HP
LIVE TOOLING SPEED ...... 10,000 RPM MILLING SPINDLE
ATC CAPACITY ............ 80 STATIONS
APPROX WEIGHT ........... 63,051 LBS.

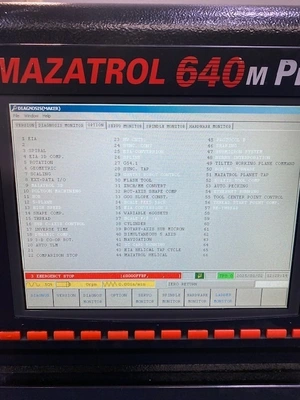

MAZATROL 640M PRO CNC CONTROL

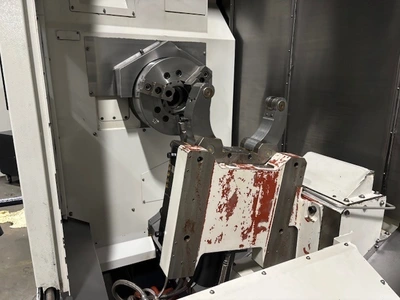

15" B15 KITAGAWA 3-JAW HYDRAULIC CHUCK
80 TOOL MAGAZINE

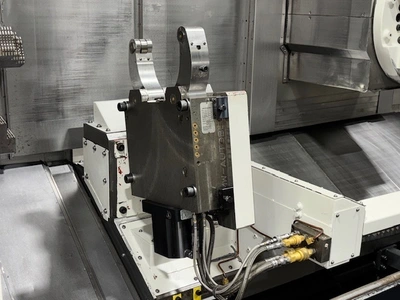

SMW/LNS SLU-4.0/Z STEADYREST 1.181" - 9.646"
MAZAK SUPER FLOW 12 1,000 PSI COOLANT
CONSEP 2000 CHIP CONVEYOR
AUTOMATIC PECK CYCLE
AUTOMATIC POWER OFF
HIGH/LOW CHUCK PRESSURE
LASER MEASUREMENT
