Hole thru Spindle 6"
Swing Over Bed, Maximum 38.5"
Swing Thru Gap 48.4"
Swing Over Cross Slide 26.2"
Distance Between Centers 118"
Cross Travel (X-Axis) 19.09"
Longitudinal Travel (Z-Axis) 118"
Spindle Speeds, Range 40 to 1000 RPM
Rapid Traverse Rate 236 IPM
Tailstock Quill Travel 10.2"
Motor Horsepower 30 HP
Overall Dimensions, L x W 236" x 99"
Overall Height 85"
Weight Approximately 22000 LBS

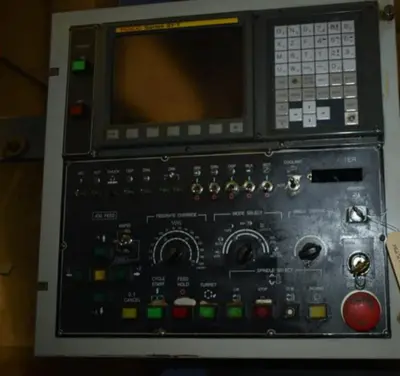

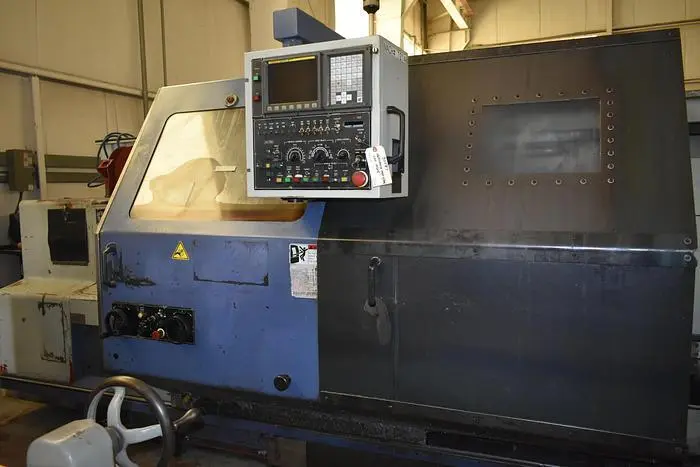

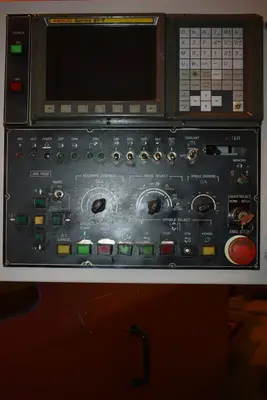

Fanuc 21-T CNC Control w/CRT (Pendant Mounted)

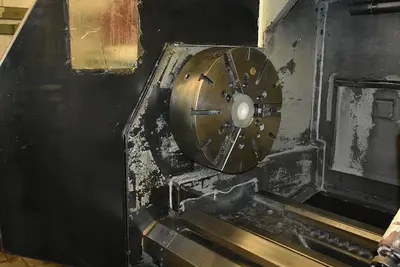

24" 3-Jaw Chuck - A2-15 Spindle Nose
12-Position Hydraulic Tool Holding Turret On Cross-Slide
A2-15 Spindle Nose
Full Lenth Coolant System (Tank & Pump)

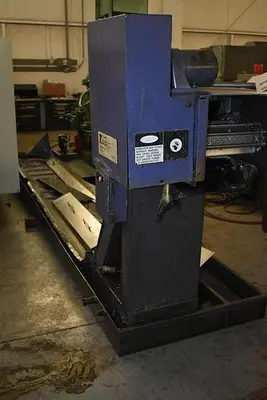

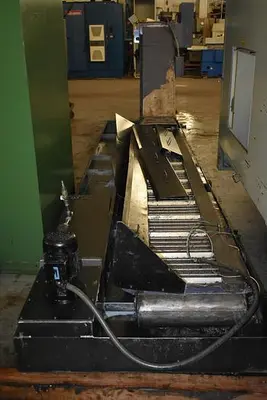

Turbo Systems Chip Conveyor (Full Length)

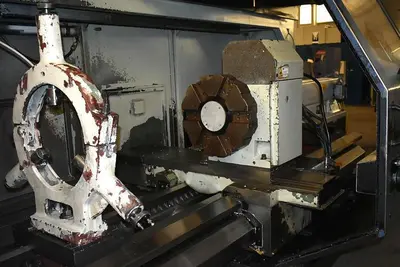

Heavy-Duty Tailstock w/One Shot Lubrication
This equipment is currently unavailable. Similar equipment available now is shown below.
