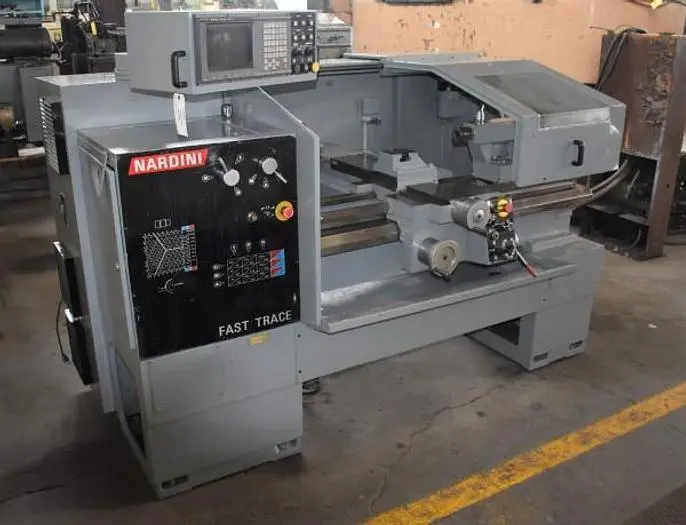

NARDINI FAST TRACE
Have one to sell?
ConditionUsed
1 available
Used CNC lathe for sale: 2" spindle bore, 17.5" swing over bed, 40" max distance between centers, 11.75" swing over cross slide. Equipped with GE/FANUC 20T control, 10" 3-jaw chuck, tailstock, and coolant pump. 8 HP, 37.5-3000 RPM. Approx. 5000 lbs.
Spindle Bore Diameter 2"
Swing Over Bed, Maximum 17.5"
Distance Between Centers, Maximum 40"
Swing Over Cross Slide, Maximum 11.75"
Cross Slide Travel, X-Axis 11.02"
Z-Axis Travel 9.84
Spindle Speeds, Range 37.5 to 3000 RPM
Spindle Motor, Horsepower 8 HP
Overall Dimensions, L x W 104" x 56"
Overall Height 68"
Weight, Approximately 5000 LBS

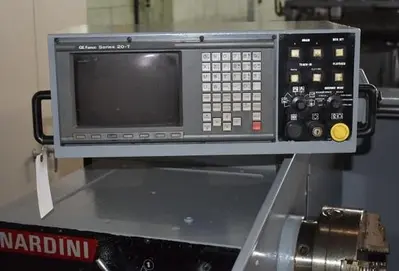

GE/FANUC 20T CNC CONTROL W/TEACH MODE
10" 3-JAW CHUCK W/JAWS
Tailstock
COOLANT PUMP
