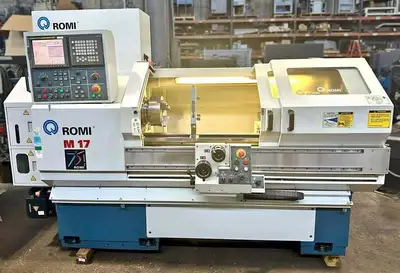

2005 ROMI M17
Have one to sell?
ConditionUsed
1 available

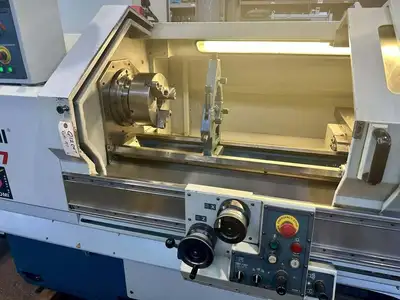

CNC Lathe, used condition. Features include Fanuc 21i-T CNC Control, 10" 3-Jaw Chuck, 40" max distance between centers, and 3-3000 RPM spindle speed.
Max Swing Over Bed............................. 16.9"
Max Swing Over Carriage........................ 15.7"
Max Swing Over Cross Slide..................... 8"

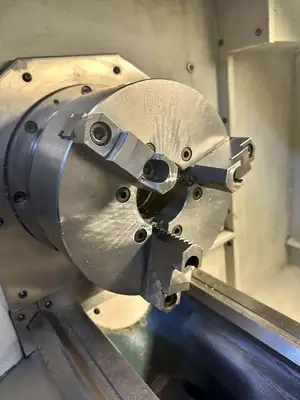

Chuck Size..................................... 10" 3-Jaw
Max Distance Between Centers................... 40"
X-Axis (Cross Travel).......................... 8.7"
Z-Axis (Longitudinal Travel)................... 40"
X-Axis Rapid Traverse Rate..................... 395 IPM
Z-Axis Rapid Traverse Rate..................... 295 IPM
Spindle Nose................................... A2-6
Spindle Bore................................... 2.56"
Spindle Speed Range........................... 3 - 3,000 RPM
Spindle Horsepower............................. 10 HP
Tailstock Quill Travel......................... 4.7"
Tailstock Quill Diameter....................... 2.4"
Tailstock Quill Taper.......................... 4 CM
Electrics...................................... 240/3/60
Approx Machine Dimensions.................... 108" x 50"
Approximate Machine Height...................... 77"
Approximate Machine Weight................... 6,285 LBS

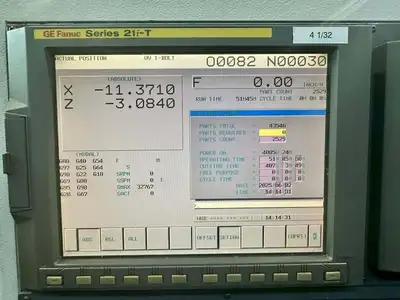

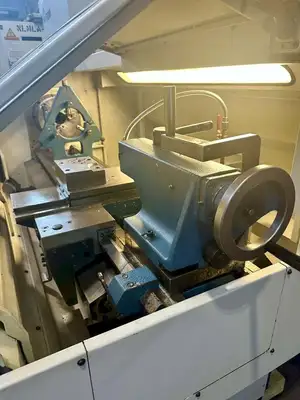

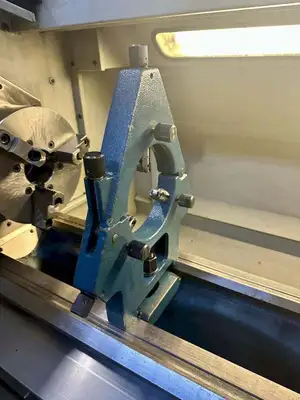

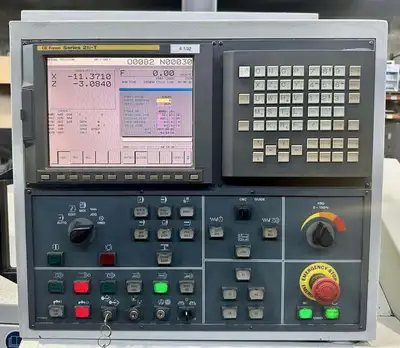

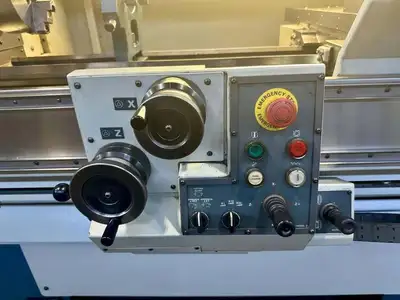

Fanuc 21i-T CNC Control with 10.4" Color LCD Monitor, Apron with 2 Electronic Hand Wheels for X & Z, 4-Position Joystick X & Z Axis Rapid Traverse, Spindle Control Lever for Manual Operation, Automatic Lubrication System, Rigid Cast Iron 'H' Bed Design, Hardened and Ground Ways, Tailstock with Manual Quill and Dual Position Clamps, Coolant System, Removable Chip Box, RS-232 Port, Variable Speed Spindle Between (2) Gear Ranges, 10" 3-Jaw Chuck, 4.25" Capacity Steady Rest, Coolant Pump and Tank.
