2012 MAZAK VERTICAL CENTER SMART 530C
Sold

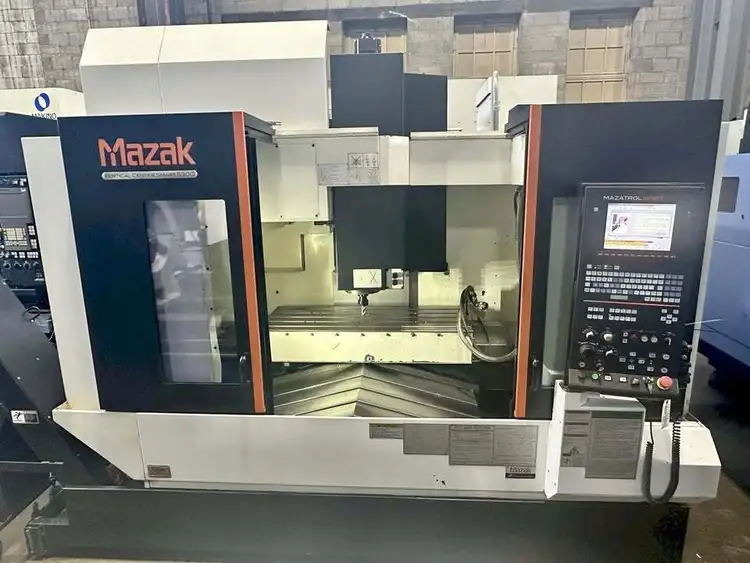

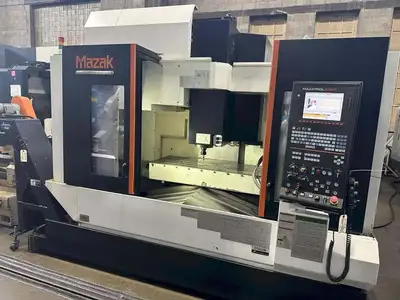

2012 MAZAK VERTICAL CENTER SMART 530C

Vertical Machining Centers
Manufacturer:
MAZAK
Model:
VERTICAL CENTER SMART 530C
Year:
2012
Stock #:
X3X1744
Used vertical Machining Center: Features Renishaw probe, 12,000 RPM spindle, and 30-position tool changer. Includes Mazatrol Smart CNC, 41.34" x 20.87" travel, and coolant through spindle.

Table Size............................... 51.18" x 21.65"
Table Load Capacity...................... 2,646 LBS
X-Axis (Longitudinal Travel)............. 41.34"
Y-Axis (Cross Travel).................... 20.87"
Z-Axis (Vertical Travel).................. 20.08"
Max Clearance Tabletop to Spindle Nose.... 25.98"
Min Clearance Tabletop to Spindle Nose…...5.9"
Rapid Traverse Rate, All Axes............. 1654 IPM
Spindle Power............................. 25 HP
Max Spindle Speed......................... 12,000 RPM
Spindle Taper............................. CAT 40
Coolant Through Spindle................... yes
Automatic Tool Changer Capacity (ATC)....... 30
Automatic Tool Changer Style................ Side-Mount
Electrics................................... 220/3/60
Approx Machine Dimensions........... 113.4" x 115.3"
Approximate Machine Height................... 113.4"
Approximate Machine Weight................ 15,000 LBS

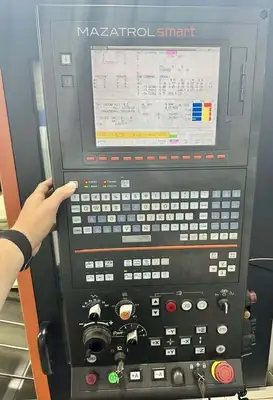

Mazak Mazatrol Smart CNC Control, 4th-Axis Prewire with Drive, 51.18" x 21.65" Table, 12000 RPM Spindle, 30 Station Tool Changer (20 Tool Holders Included), Renishaw Probe, Through Spindle Coolant, Chip Conveyor & Coolant System.

This equipment has been sold. Similar equipment available now is shown below.
