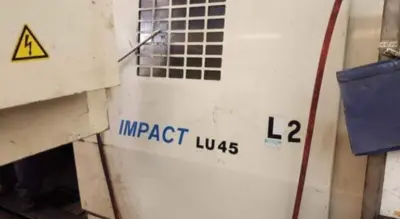

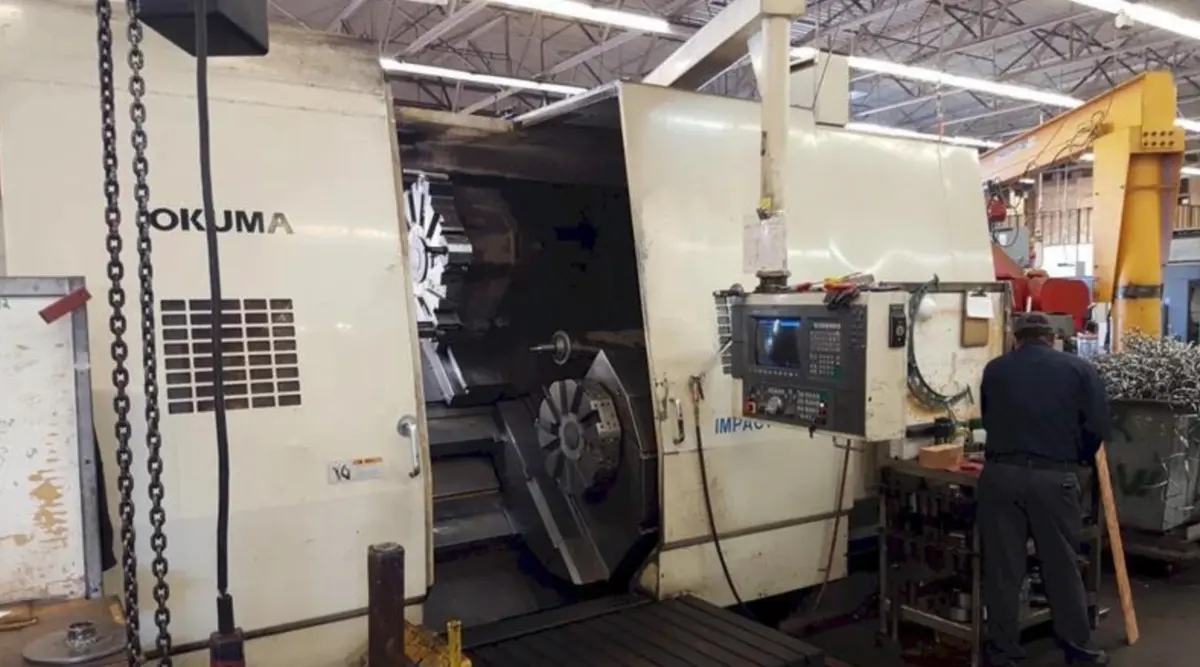

1996 OKUMA IMPACT LU-45 1500

Swing Over Bed: 33.07"
Swing Over Saddle: 21.85"
Distance Between Centers: 78.74"
Maximum Turning Diameter: 25.98"
Maximum Work Length: 78.74"
X-axis Travels: Upper Turret 17.32"/ Lower Turret: 12"
Y-axis Travels: Upper Turret 82.28"/ Lower Turret 79.72"
Speed Range: 12-2800 Rpm
Number Of Speed Ranges: 4 Ranges
Spindle Nose: Jis A2-11
Spindle Bore Diameter: 4.33"
Diameter At Front Bearing: 5.91"

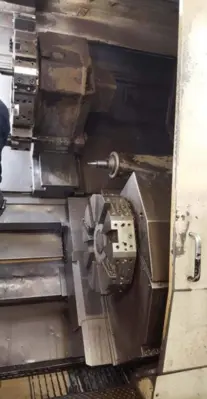

Turret Type: Upper Turret V12 / Lower Turret V10
Number Of Tool Stations: Upper Turret 12 / Lower Turret 10
Tool Shank Height: 1.26" X 1.26"
Boring Bar Shank Diameter: 2.48"
Turret Indexing Time: 0.7 Seconds (lift Up)
Rapid Traverse Rate (x,z): 591 IPM / 787 IPM
Cutting Feed Rate: 0.0001-40.0 IPM
Tailstock Quill Diameter: 5.12"
Tailstock Quill Bore Taper: Mt 5 (built-in)
Tailstock Quill Travel: 6.69"
Spindle Motor: 60/50 HP
Coolant Pump Motor: 0.7 HP
Power Kva: 54.3
Machine Height: 119.69"
Machine Floor Space: 238.58" X 111.49"
Machine Weight: 45,540 Lbs
