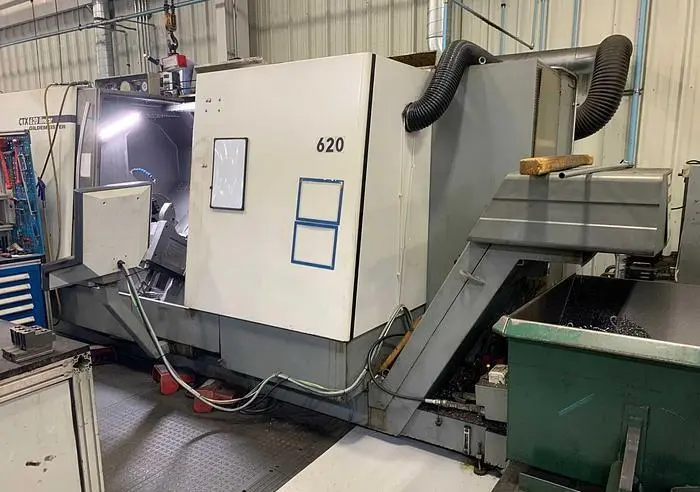

2005 GILDEMEISTER CTX620 X 1000
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe CTX620 X 1000, used, equipped with Siemens 840D CNC, 15" 3-jaw chuck, tailstock, and coolant filtration. Swing: 26.4", Machining Length: 40". Ideal for precision tasks. Dimensions: 205"x83"x90", Weight: 22,000 lbs.
Spindle Hole Diameter 5.3"
Bar Capacity, Maximum 4.75"
Swing Diameter, Maximum 31.5"
Swing Over Saddle, Maximum 19.68"
Turning Diameter, Maximum 23.6/19.6"
Turning Length, Maximum 42.52"
Transverse Stroke 15.06"
Longitudinal Stroke 43.21"
Y-Axis Stroke 2.55"
Spindle Speed, Range 20 to 2500 RPM
Motorized Tool Speed, Range 1 to 3500 RPM
C-Axis Speed, Range 0 to 100 MIN-1
X, Z-Axis Rapid Travers 1771 IPM
YAxis Rapid Traverse 32.8 IPM
Tailstock Stroke, Automatic 43.31"
Tailstock Quill Diameter 4.72"
Tailstock Quill Shaft 5 MT
Tailstock Quill Travel 5.9"
Main Drive Motor Horsepower 44.2 HP
Dimensions w/Chip Conveyor, L x W x H 205" x 83" x 90"
Weight Approximately 22,000 LBS

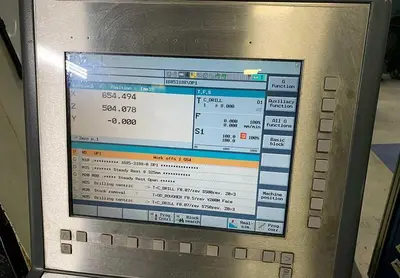

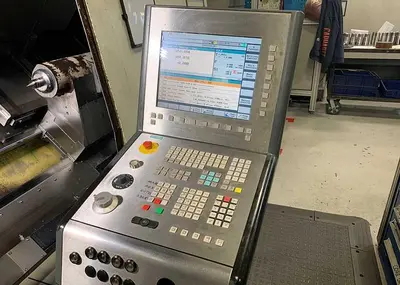

Siemens 840D CNC Control

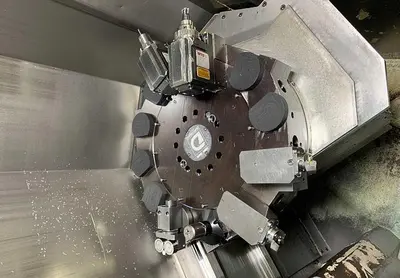

12(+4) Position VDI 50 Turret w/Live Milling

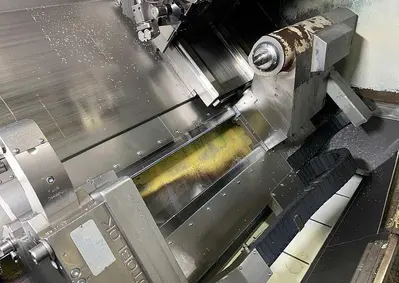

Y-Axis - Hydraulic Tailstock - 15" 3-Jaw Chuck w/Jaws

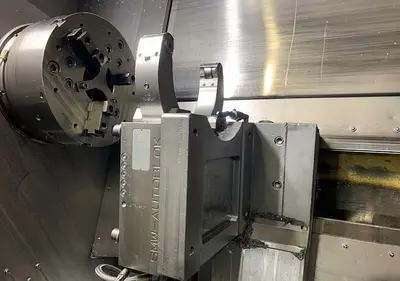

SMW-Autoblok BHD Hydraulic Self-Centering Steady Rest
Automatic Electric Sliding Door
Pedia "TRK 30-FF-3" Coolant Filtration System w/Rolling Paper Filtering
ChipBlaster High Pressure Coolant Filtration System w/MistBlaster Mist Collector
BMF "SPE 63/30-376 Z60" Heavy-Duty Chip Conveyor
Fargo "DA93XN1/K4/FE" Electrical Transformer
Some Assorted Tool Holders
