2010 HWACHEON MEGA 100/3000
Have one to sell?
ConditionUsed
1 available

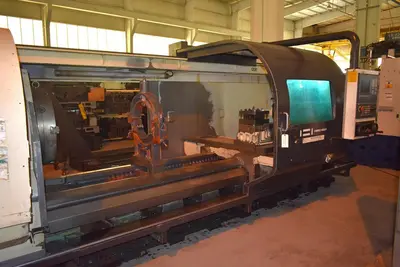

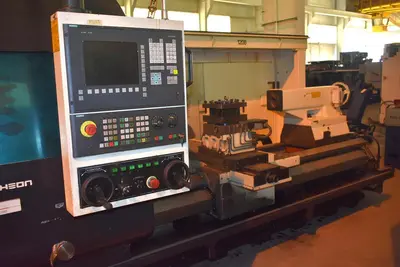

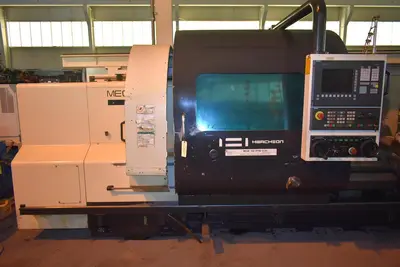

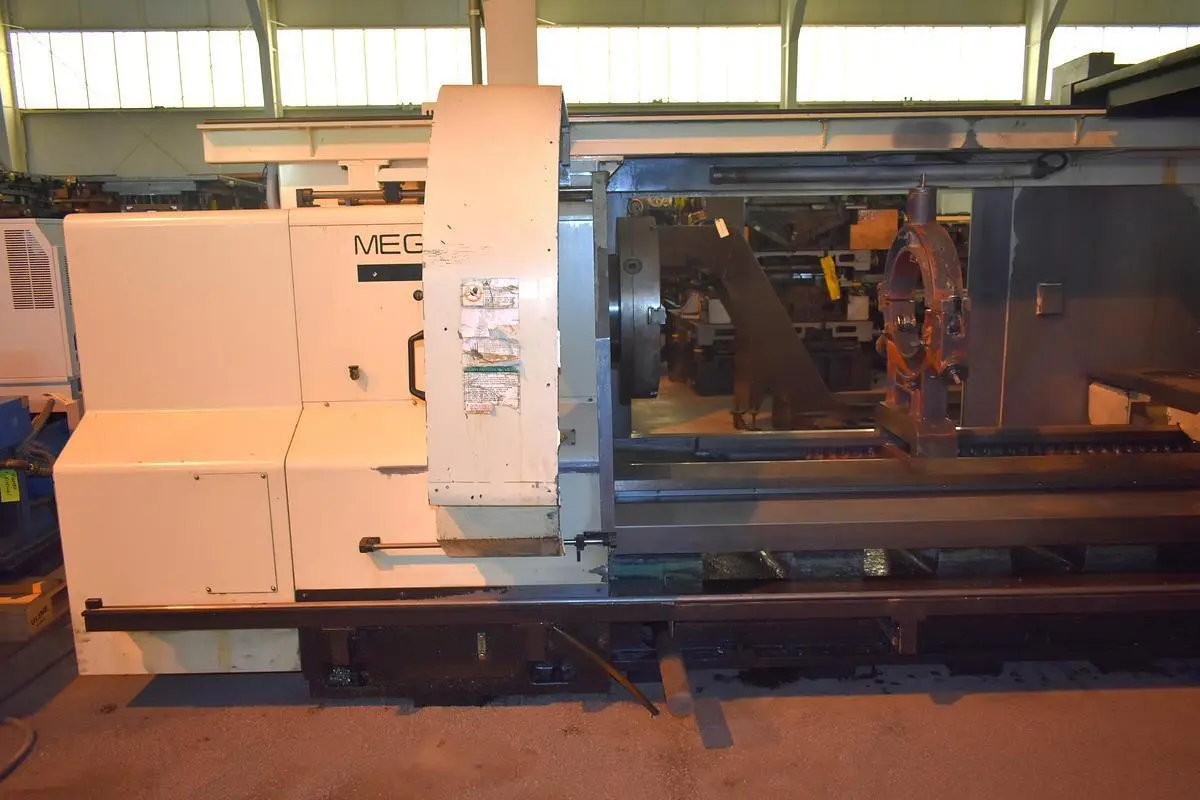

Used CNC Lathe featuring a 24.5" chuck, 6.1" spindle bore, Siemens CNC control, and a 4-position hydraulic turret. Capable of 40-750 RPM spindle speeds, it offers 39.3" max cutting diameter and comes with a full-length chip conveyor.

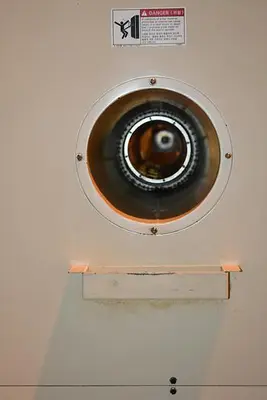

Hole thru Spindle 6.1"
Chuck Diameter 24.5"
Swing Over Bed, Maximum 42.5"
Swing Over Saddle 28.3"
Distance Between Centers 118"
Cutting Diameter Over Bed, Maximum 39.3"
Cutting Diameter Over Saddle, Maximum 27.5"
Cross Travel (X-Axis) 20"
Longitudinal Travel (Z-Axis) 118"
Spindle Speeds, Range 40 to 750 RPM
Power Rapid Traverse, X-Axis 236 IPM
Power Rapid Traverse, Y-Axis 236 IPM
Tailstock Quill Diameter 7.87"
Tailstock Spindle Center 6 MT
Bed Width 27.5"
Bed Length 211.4"
Floor Space Required, L x W 244" x 93"
Overall Height 85"
Motor Horsepower 45 KVA
Weight Approximately 25500 LBS

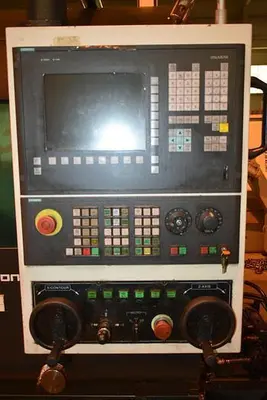

Siemens "Sinumerik" CNC Control w/CRT (Pendant Mounted)

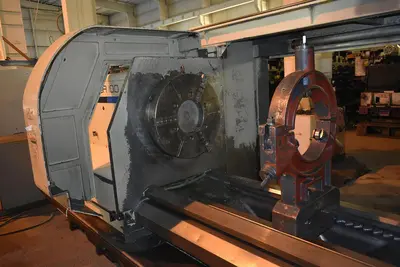

24.5" 3-Jaw Chuck

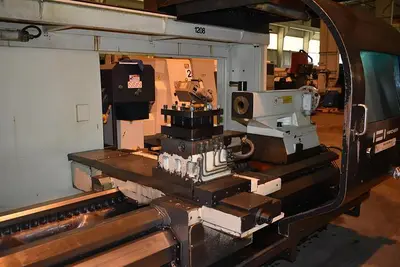

4-Position Hydraulic Turret
Steady Rest
A2-15 Spindle Nose

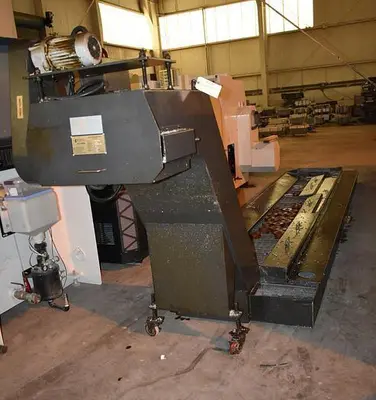

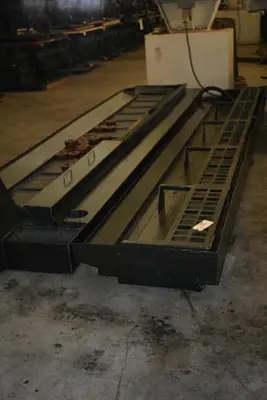

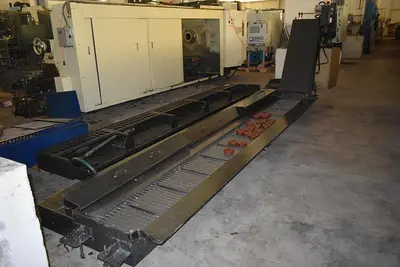

Chip Conveyor (Full Length)
