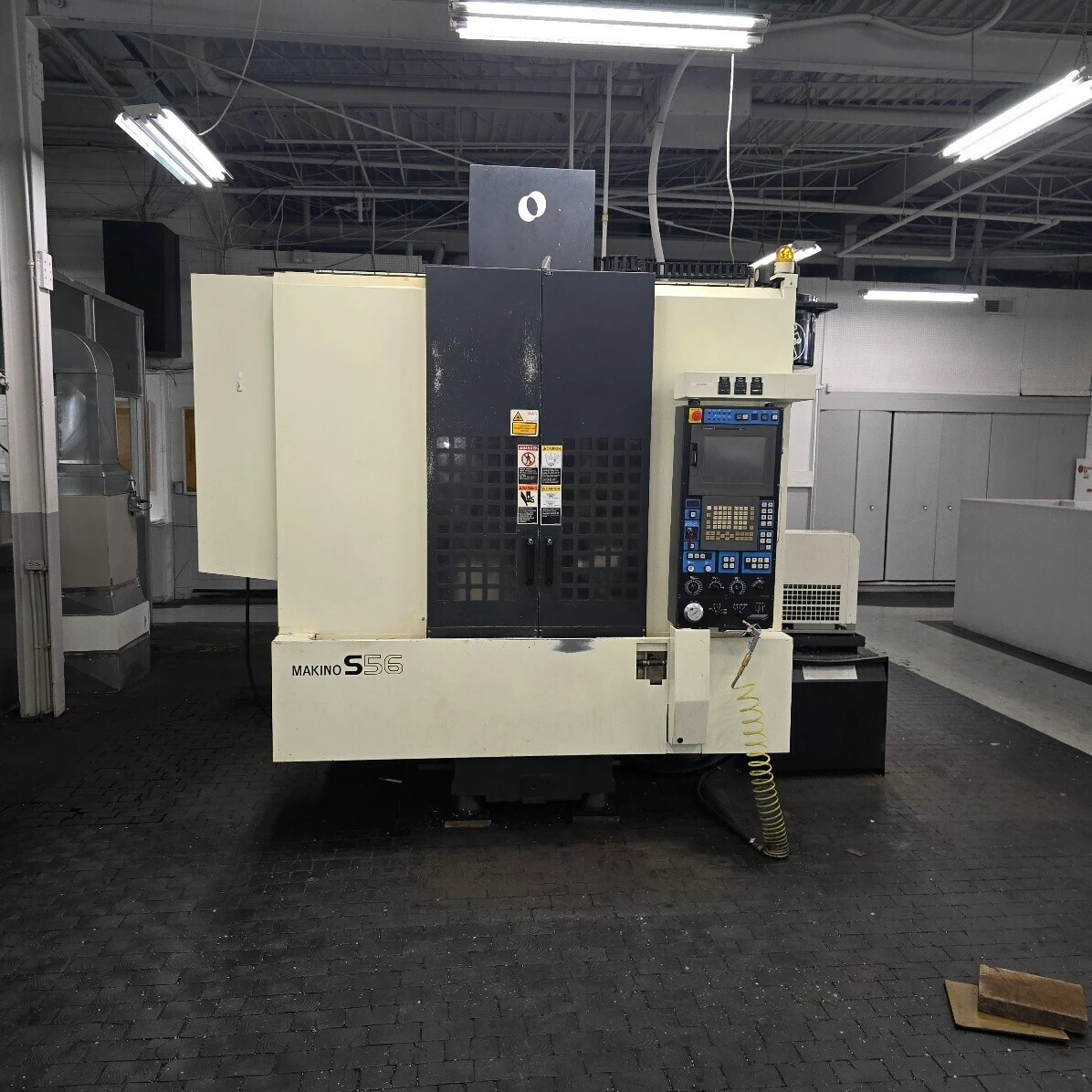

2010 MAKINO S56
Have one to sell?
ConditionUsed
1 available
Used Vertical machining center with a 35.4" x-axis travel, 20,000 RPM spindle speed, and 20 ATC tool changer. Equipped with Professional 5 CNC control, FANUC drives, and an air dryer for efficient operation. Comes with manuals.
X AXIS TRAVEL............. 35.4" (900 MM)
Y AXIS TRAVEL............. 19.7" (500 MM)
Z AXIS TRAVEL............. 17.7" (450 MM)
RAPID TRAVERSE RATES...... 1575 IPM
FEED RATES................ 0 TO 1575 IPM
JOG FEED RATE............. 0 TO 157 IPM
TABLE SIZE................ 39.4" X 19.7"
TABLE LOAD CAPACITY....... 1325 LBS (600 KG)
SPINDLE SPEED............. 200 - 20,000 RPM
NO. SPINDLE SPEED RANGES.. 2
SPINDLE DRIVE MOTOR....... 20 HP (15 MIN)
.......................... 14.75 HP (CONT.)
SPINDLE NOSE TO TABLE..... 5.9" TO 23.6"
TOOL CHANGER.............. 20 ATC
TOOL SHANK TYPE........... HSK-A63
CHANGE TIME TOOL TO TOOL.. 1.2 SEC.
CHANGE TIME CHIP TO CHIP.. 4.5 SEC.
MACHINE WEIGHT............ 16,500 LBS
MACHINE SIZE.............. 105" X 98" X 120"

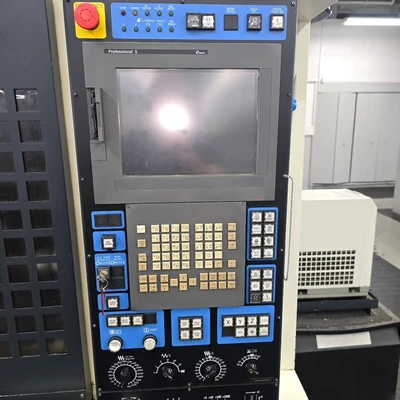

PROFESSIONAL 5 SYSTEM CNC CONTROL

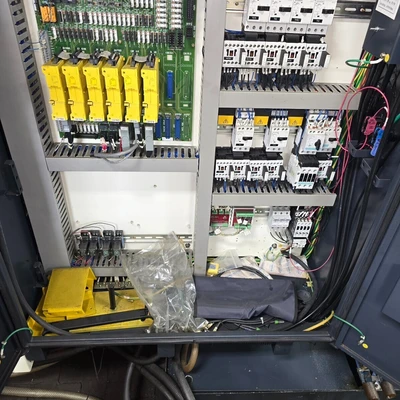

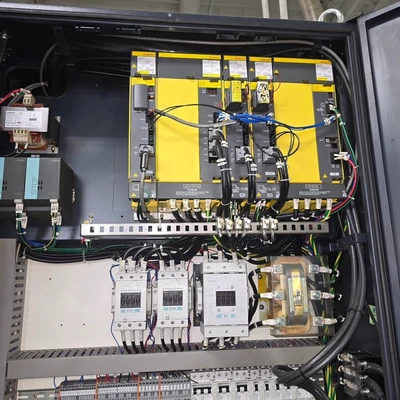

FANUC DRIVES
10.4" COLOR LCD DATA DISPLAY

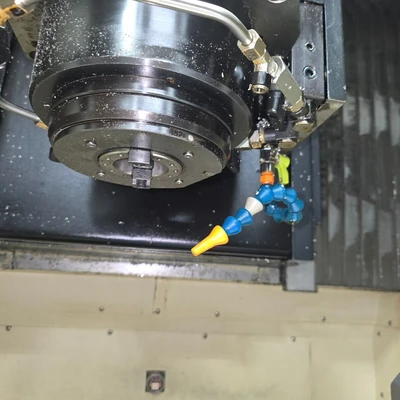

COOLANT FLUSH
AIR DRYER
ATC SHUTTLE
SUPER GI WITH DATA SERVER
THROUGH SPINDLE AIR
S/G DOOR WITH INTERLOCK
AUTOMATIC AIR BLOWER
320 M MEMORY
HELICAL INTERPOLATION G02.2, GO3.3
MANUALS

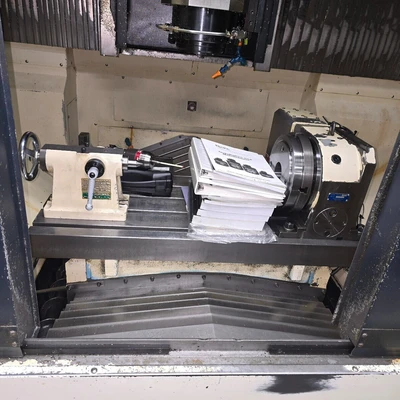

TSUDAKOMA 12" ROTARY TABLE
TOOL PROBE
