2015 HAAS DS-30SSY
Have one to sell?
ConditionUsed
1 available

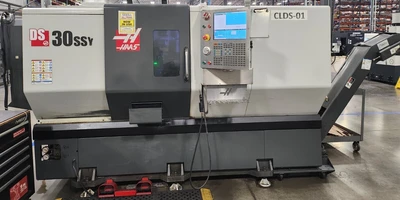

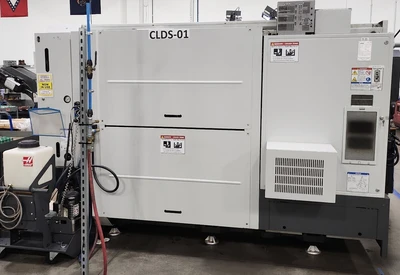

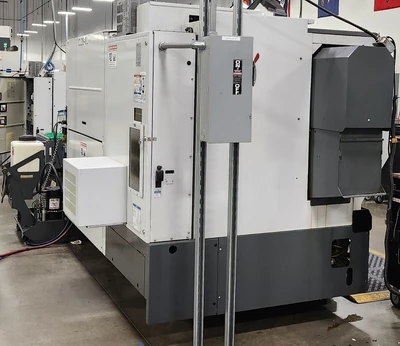

Used CNC Lathe: Features 3-axis, 30 hp, max RPM 4,800. Equipped with parts catcher, chip conveyor, tool pre-setter, and upgraded 24-station tool turret. Includes live tooling and sub spindle.
X-AXIS: 12.5”
Y-AXIS: 4”
Z-AXIS: 23”
B-AXIS TRAVEL (SUB-SPINDLE): 32.68”
MAX SWING:31.8”
MAX CUTTING DIAMETER:18”
MAX CUTTING LENGTH:23”
STANDARD BAR CAPACITY: 3.0”
MAIN SPINDLE CHUCK SIZE: 8.3”
MAIN SPINDLE SPEED: 4,500 MAX RPM
MAIN SPINDLE BORE: 3.5”

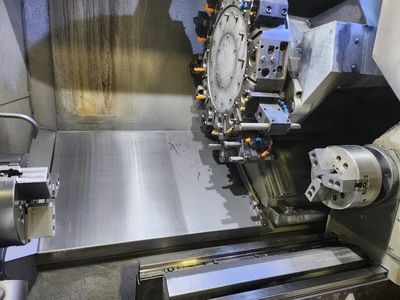

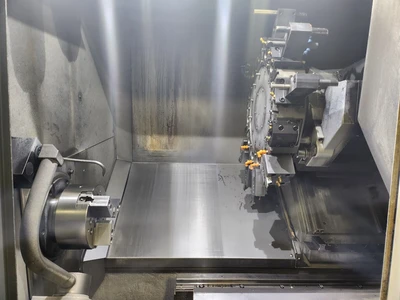

TURRET TOOLS:24 STATION
LIVE TOOLING:6,000 RPM
SUB-SPINDLE SPEED:4,800 RPM
PARTS CATCHER

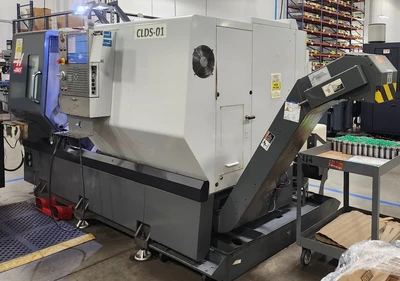

CHIP CONVEYOR
2 LIVE TOOLS
TOOL PRE-SETTER
MAIN SPINDLE AIR BLAST
UPGRADED 24 STATION TOOL TURRET
