2008 OKUMA CAPTAIN L470M
Have one to sell?
ConditionUsed
1 available
2008 OKUMA CAPTAIN L470M CNC Lathe offers 24.4" swing, 50" machining length, and 15" chuck. Equipped with OSP-P200L CNC, live tooling, LNS chip conveyor, and 12-position VDI turret.
SWING OVER BED 24.4"
SWING OVER CROSS SLIDE 18.89"
MAX CUTTING DIAMETER 16.53"
MAX CUTTING LENGTH 49.21"
X-AXIS TRAVEL 11.81"
Z-AXIS TRAVEL 50"
C-AXIS INDEXING Yes
CHUCK SIZE 15"
BAR CAPACITY 3.5"
SPINDLE MOTOR 30 hp
SPINDLE SPEED 3,000 RPM
RAPID TRAVERSE RATE - X-AXIS 787 in/min.
RAPID TRAVERSE RATE - Z-AXIS 981 in/min.
TURRET CAPACITY 12
TURRET TYPE VDI
LIVE MILLING Yes
Weight 18,000 LBS

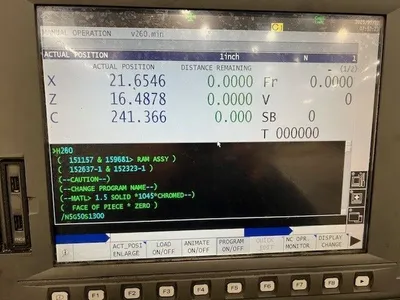

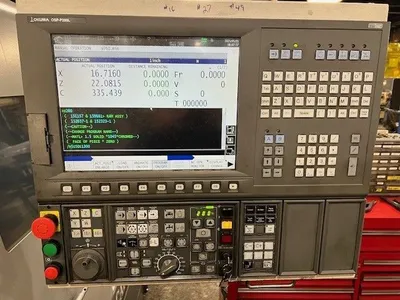

OSP-P200L CNC

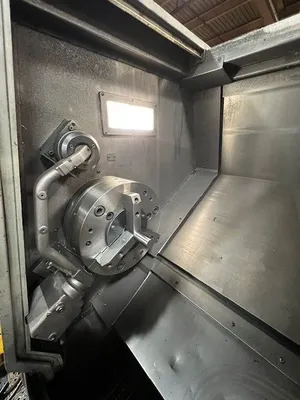

15" ATS NCSE 400-128 3-JAW HYDRAULIC CHUCK
LARGE ASSORTMENT OF LIVE AND STATIONARY HOLDERS

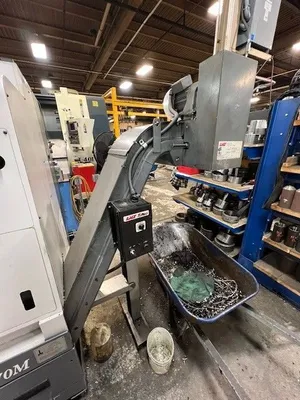

LNS CHIP CONVEYOR
TOUCH SETTER
TAILSTOCK - TOW STYLE

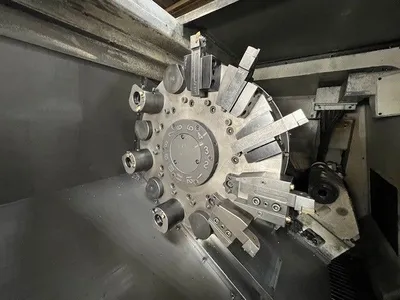

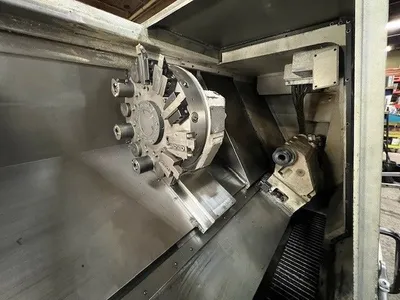

12 POSITION VDI TURRET
Hi-G CONTROL
TOOL LIFE MANAGEMENT
LAP4
NOSE-R 2B
USER TASK 2
3D ANIMATION
ANIMATION
M-AXIS ORIENT
ALL AVAILABLE MANUALS
