2007 MORI SEIKI NV5000
Have one to sell?
ConditionUsed
1 available

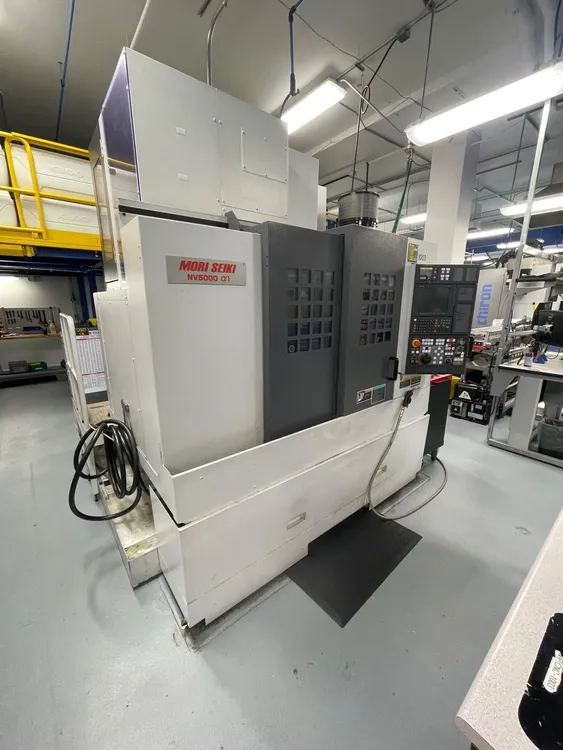

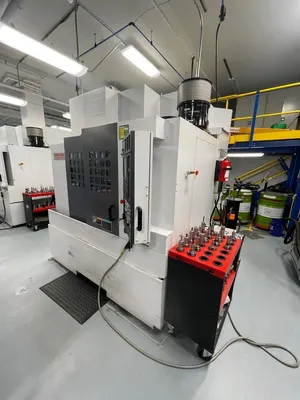

2007 MORI SEIKI NV5000 A1A/40, 5-axis vertical machining center. Features 31.5"X x 20"Y x 20"Z travel, 30 hp, 14,000 RPM, BT-40 taper, 23.6"W x 43.3"L table. Includes through spindle coolant, Nikken 3+2 table, and fire suppression. Used condition.
TABLE WORKING SURFACE 43.3" x 23.6"
TABLE LOAD CAPACITY 2,200 LBS.
LONGITUDINAL TRAVEL (X-AXIS) 31.5"
CROSS TRAVEL (Y-AXIS) 20"
VERTICAL TRAVEL (Z-AXIS) 20"
SPINDLE NOSE TO TABLE 5.9"- 26"
RAPID TRAVERSE RATE, X-Y 1653 IPM
TOOL STORAGE CAPACITY 30 ARM TYPE
SPINDLE HORSEPOWER 25 / 30 HP
SPINDLE SPEEDS RANGE 14,000 RPM
SPINDLE TAPER BT-40
WAY SYSTEM LINEAR
OVERALL DIMENSIONS 97" x 107" x 103"
APPROXIMATE WEIGHT - NET 14,3000 LBS.
POWER 220V / 3PH / 33 KVA / 50HZ
Through spindle coolant

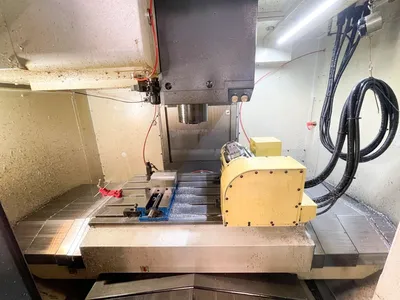

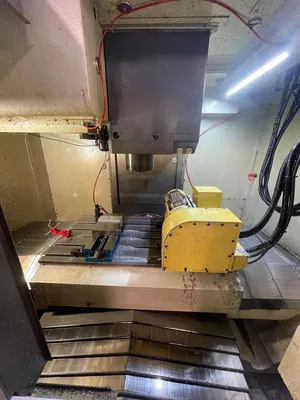

Nikken 3+2 table

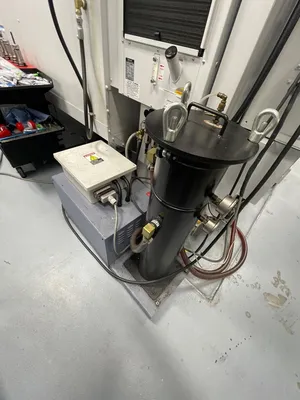

Fire suppression
