2013 JOHNFORD SL-650+C+Y
Have one to sell?
ConditionUsed
1 available

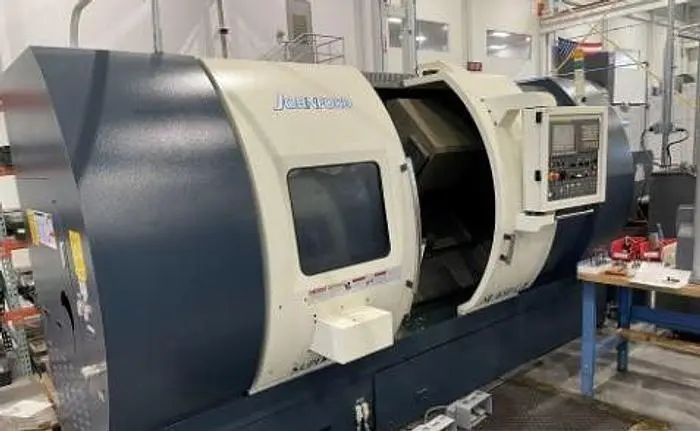

2013 Johnford SL-650+C+Y CNC lathe in used condition features a 22.8" swing, 60" machining length, 3-axis operation, 10" chuck, and 25 hp power. Equipped with Fanuc Oi-TD control, live tooling, Y-axis, and hydraulic tailstock.
Bar Capacity 3"
Swing Over Bed 22.8”
Swing Over Cross-Slide 17.7"
Distance Between Centers 60”
Cross Travel, X-Axis 9.8"
Longitudinal Travel, Z-Axis 55.1"
C-Axis Indexing 0.001-DEGREES
Spindle Speeds, Maximum 0 to 3500 RPM
Live Tooling Speed 3800 RPM
Rapid Traverse Rate, X Axis .......... 590 IPM
Rapid Traverse Rate, Z-Axis .......... 708 IPM
Main Motor Horsepower 25 HP
Live Tooling Motor Horsepower 7.5 HP
Fanuc Oi-TD CNC Control
C-Axis w/Live Tooling
Y-Axis Functionality
Collet Chuck - 10" 3-Jaw Chuck - Steady Rest
12-Position VSI Live Tooling Turret w/Tooling Shown
45-Degree Slant Bed Design
#A2-8 Spindle Nose
Hydraulic Programmable Tailstock
Chip Conveyor
Renishaw Probe
