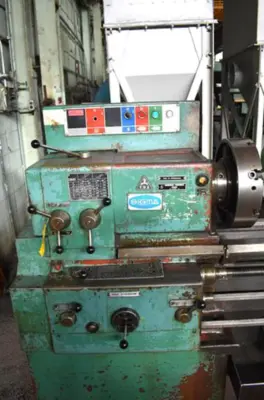

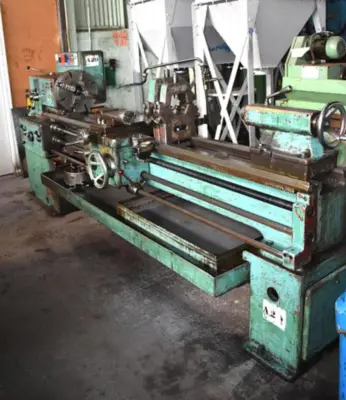

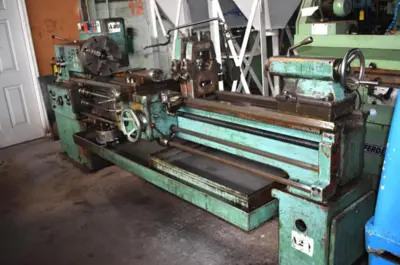

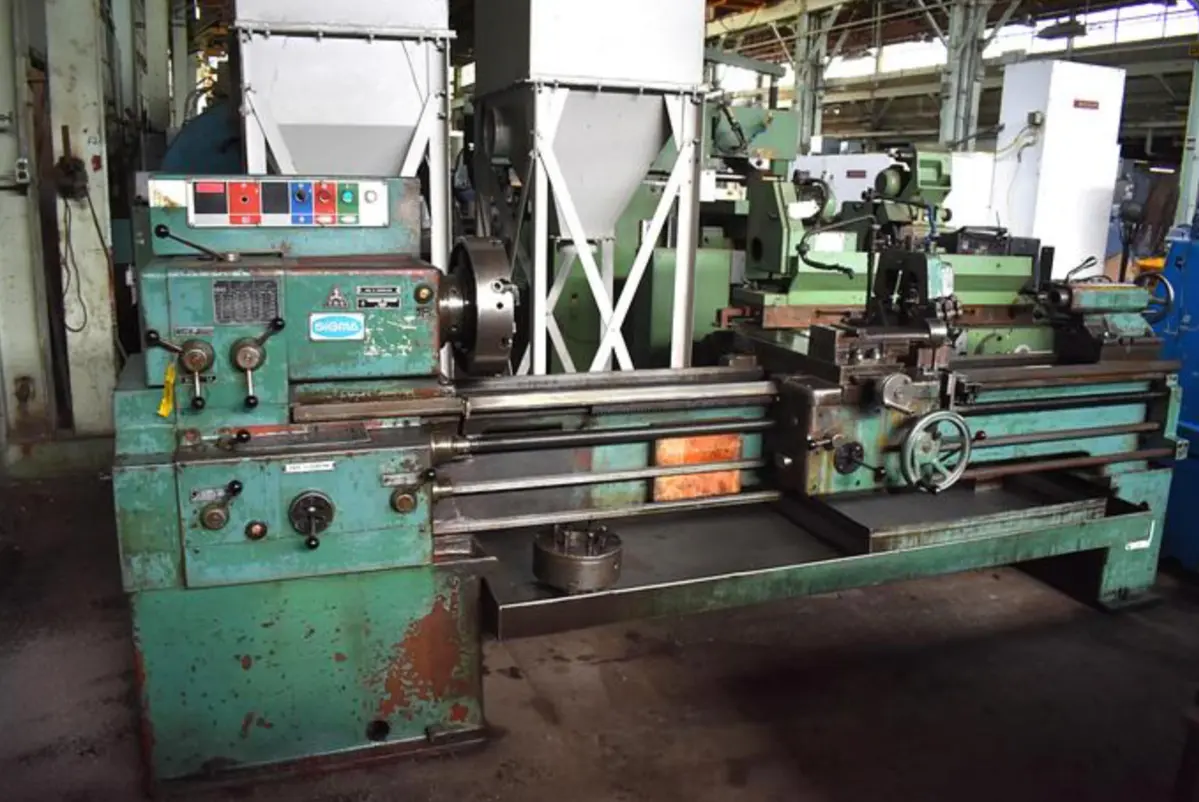

TOS-TRENCHIN SN45B

Hole Thru Spindle 2"
Swing Over Bed Ways, Rated 17"
Swing Over Bed Ways, Actual 17-23/32"
Swing thru Gap 25-19/32"
Swing Over Carriage 10-5/8"
Distance Between Centers 80"
Gap Length 91/16"
Tailstock, Spindle Diameter 2-3/4"
Tailstock, Spindle Travel 7-3/32"
Tailstock, Spindle Taper #5 MT
(24) Spindle Speeds, Range 22 to 2000 RPM
Carriage Longitudinal Feeds .002 to .242 IPR
Carriage Longitudinal Feeds .05 to 6.4 MMPR
Cross-Slide Cross Feeds .025 to 3.2 MMPR
Cross-Slide Cross Feeds .001 to .121 IPR
(35) Whitworth Thread Changes, Range 1 to 80 TPI
(29) Metric Leads, Range .5 to 40 MM
(26) Module Threads, Range .25 to 20 PIM
(31) D.P. Threads 2 to 71 DP
Overall Dimensions, L x W 152" x 40"
Overall Height 53"
