2012 HAAS VF-2
Have one to sell?
ConditionUsed
1 available

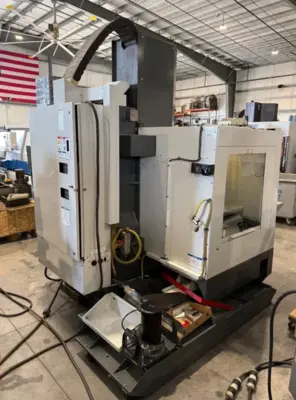

Vertical Machining Center, 2012. Specs: X/Y/Z 30"/16"/20", 30 hp, 8,100 RPM, CAT-40 taper, 3-axis. Features HAAS Control with Rigid Tapping, DNC, and more. Prewired 4th axis, 230V/3-ph, 5,911 servo hours. Used condition.
Minimum/Maximum distance, spindle nose to table- 4’’/24’’
Spindle taper- CAT-40
Spindle speeds- 0 – 8,100 R.P.M.
Maximum weight on table- 3,000 Lbs.
Rapid feed rate on X, Y, & Z axes- 1000 I.P.M.
Maximum cutting feed rate- 650 I.P.M.
Number of tools in changer- 20
Maximum tool diameter- 3.5”
Maximum tool weight- 12 Lbs.
HAAS Control options- Rigid Tapping, DNC, Quick Code, Pre-Orient Tap, Advanced Tool Management
Prewired for the 4th axis
Brushless servos on all axis
HAAS CNC Control USB port
Telescopic way covers
(6) Leveling pads
BIJUR automatic lubrication system
External coolant tank & Coolant pump
20 H.P. spindle drive motor
Machine hours -Servo Time 5,911, Motion Time 2,109, Spindle Time 1,765
Machine is wired for 230 Volt / 3 phase / 60 HZ
