2015 ROMI C-680
Have one to sell?
ConditionUsed
1 available

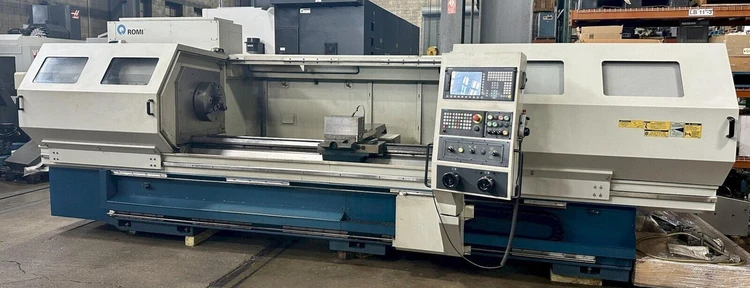

Used CNC Lathe. Features: 26.8" swing, 120" machining length, 16" chuck, 45 hp, max 1800 RPM, Siemens control, steady rest, heavy-duty construction, spindle chiller, chip conveyor.
Max Swing Over Bed 26.8"
Max Swing Over Cross Slide 16.9"
Max Swing Over Saddle Wings 24"
Chuck Size 19" 4-Jaw and 16" 3-Jaw
Max Distance Between Centers 118"
Max Turning Length 119.1"
X-Axis (Cross Travel) 14.2"
Z-Axis (Longitudinal Travel) 119.1"
X-Axis Rapid Traverse Rate 315 IPM
Z-Axis Rapid Traverse Rate 315 IPM
Spindle Nose A2-11
Spindle Bore 6.77"
Bar Capacity 2.55"
Max Spindle Speed 1,800 RPM
Spindle Power 45 HP
Tailstock Quill Travel 7.1"
Tailstock Quill Diameter 5.1"
Electrics 480/3/60
Approximate Machine Dimensions 303" x 96"
Approximate Machine Weight 15,400 LBS

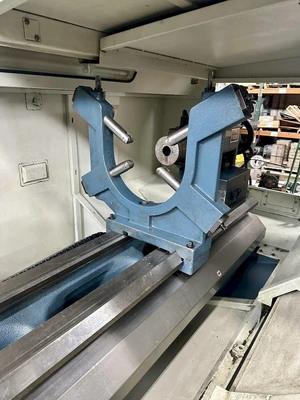

Siemens Sinumerik 828D CNC Control, 16" 3-Jaw Chuck & 19" 4-Jaw Chuck, 2 Sided Dorian Tool Post, 16" Max Diameter Turn Thru Steady Rest, Heavy Duty Flat Bed Construction, 1-450 RPM Low Gear, 1-1800 RPM High Gear, 2.55" Thru Hole, Handwheels for X & Z Axis, Rapid Traverse Jog Stick for X & Z Axis, Chip Conveyor & Coolant System, Foot Pedal Controls For Chuck Clamp/ Unclamp & Quill In/ Out, Spindle Chiller
