2020 SOUTHWESTERN INDUSTRIES TRL-1630RX
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe: 16" swing over bed, 30" centers, D1-6 spindle, 150-2,500 RPM, SWI TRAK RLX control, 8-position turret, 8” chuck, LED light, auto lubrication, equipped for 208V 3-phase. C
Height of centers- 8”
Distance between centers- 30”
Swing over the bed- 16”
Swing over the saddle wings- 16”
Swing over cross slide- 8.6”
Cross slide travel- 8.5”
X axis rapids- 200 I.P.M.
Z axis rapids- 400 I.P.M.
Bed width- 12.6”
Spindle nose- D1-6
Spindle through hole- 2.12”
Spindle speeds-150 -2,500 R.P.M.
Tailstock quill travel- 5.75”
Tailstock quill diameter- 2.36”
Tailstock quill taper-#4 Morse

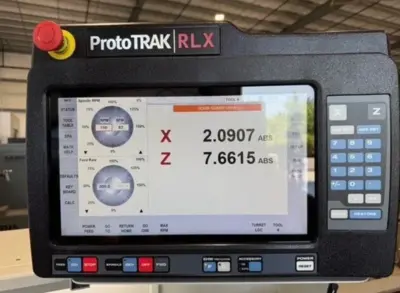

SWI TRAK RLX CNC Touch Screen Control- advanced features, Traking, Network, Electronic handwheels, DXF converter
8” BUCK “Adjust-Tru” Chuck
8 Position Turret attachment
LED work light
Automatic lubrication system
7.5 H.P. Spindle motor
Machine is wired for 208 volt / 3 phase / 60 H.Z.
Machine weight- 3,450 Lbs.
Machine dimensions- 82” x 45” x 72”
