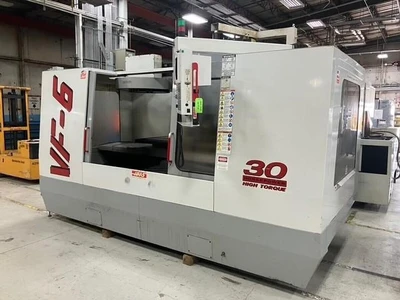

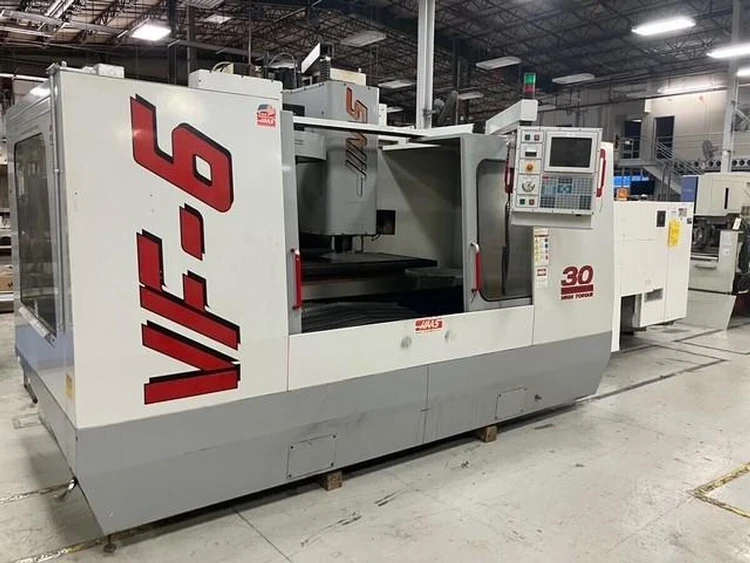

1999 HAAS VF-6
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center. Featuring a 30 hp motor, 10,000 RPM spindle, and 3-axis capability, it's equipped with CNC control, tool changer, auto lubrication, and more.
Weight On Table, Maximum 4000 LBS
Spindle Nose to Table, Maximum 34"
Spindle Nose to Table, Minimum 4"
Spindle Taper #40
Spindle Speeds, Range 0 to 10000 RPM
Cutting Feedrate, Maximum 500 IPM
Rapid Traverse Rate, X-Axis 540 IPM
Rapid Traverse Rate, Y & Z-Axis' 600 IPM
Tool Diameter, Full Toolchanger 3"
Tool Diameter, Adjacent Empty 6"
Tool Weight, Maximum 12 LBS
Spindle Motor, Horsepower Rating 30 HP
Weight, Approximately 2200 LBS

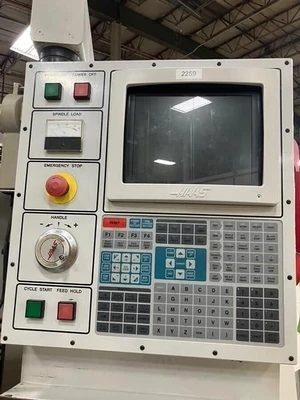

Haas CNC Control w/Hand Held Pendant Control (4th-Axis Ready)
30-Position Side Mounted Automatic Tool Changer
10000 RPM High-Speed Spindle w/Vector Spindle Drive
30 HP High Torque Motor
Rigid Tapping - Automatic Lubrication
Through Spindle Coolant System
Chip Conveyor
