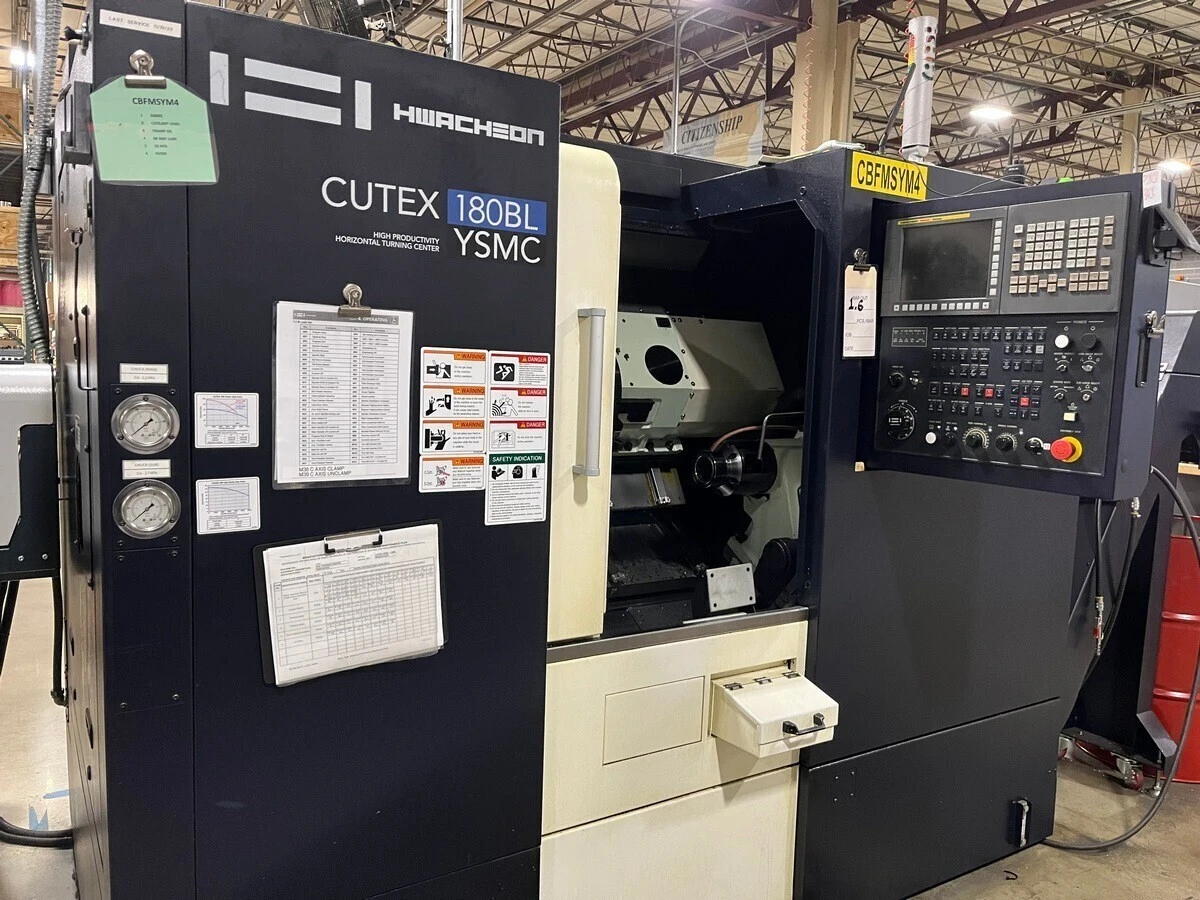

2019 HWACHEON CUTEX-180BL YSMC

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Request Financing
Have one to sell?

Overview

Type:
5-Axis or More CNC Lathes
Manufacturer:
HWACHEON
Model:
CUTEX-180BL YSMC
Year:
2019
Stock #:
X4X1565
Status:
For Sale

Description

5-Axis CNC Lathe, 20 hp, Swing: 27.55", Machining Length: 17.79", Max RPM: 4,500, 8" Chuck, 12 Station Turret, Fanuc i Control, Auto Tool Presetter, Parts Catcher, Tailstock, Chip Conveyor. Used condition.

Swing27.55"699.77 mm
Machining Length17.79"451.87 mm
Chuck Size8"203.2 mm
Bar Capacity2.55"64.77 mm
Power20 hp14.9 kW
Max RPM4,500 RPM4,500 RPM
Turning Dia13.77"349.76 mm

Chuck Size 8"
Bar Capacity 2.55"
Swing 27.55"
Turning Diameter 13.77"
Spindle Speed 4,500 RPM
Distance Between Centers 22"
Max Cutting Length 17.79"
Turret 12 Station
Live Tooling C-Axis Live Tooling, Y-Axis
Sub-Spindle 6,000 RPM

Control Fanuc i
Barfeed in Picture Not Included
Auto Tool Presetter
Parts Catcher
Tailstock
Chip Removal
Chip Conveyor
