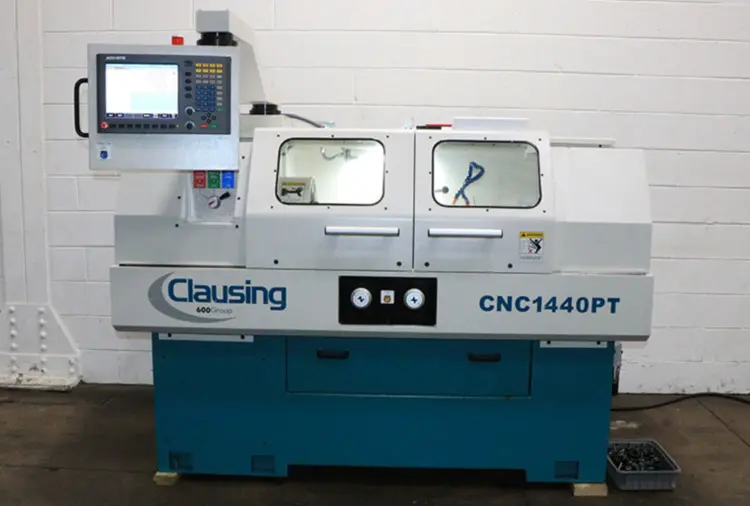

2021 CLAUSING CNC1440PT
Have one to sell?
ConditionUsed
1 available
Used CNC lathe: 14" swing, 40" machining length, 5 HP, 2,000 RPM max. Features Acu-Rite TurnPwr, 12.1” LED display, DRO mode, coolant system, 6-jaw Buck chuck, and Aloris toolpost.
SWING OVER BED ........................ 14"
SWING OVER CROSS SLIDE ................ 6.7"
HEIGHT OF CENTER ...................... 6.8"
DISTANCE BETWEEN CENTERS .............. 40"
CROSS SLIDE WIDTH ..................... 6.625”
BED WIDTH & DEPTH ..................... 8.5" x 10"
SPINDLE NOSE CAMLOCK .................. D1-4
SPINDLE BORE .......................... 1.5"
SPINDLE SPEEDS INFINITELY VARIABLE 3 RANGES
- LOW RANGE ......................... 30 - 140 RPM
- MEDIUM RANGE ...................... 110 - 540 RPM
- HIGH RANGE ........................ 410 - 2000 RPM
SPINDLE TAPER ......................... #5MT
SPINDLE MOTOR ......................... 5 HP
MIN SPINDLE SPEED FOR FULL POWER ...... 70 RPM
AXES X-AXIS RAPID TRAVERSE ............ 100 IPM
Z-AXIS RAPID TRAVERSE ................. 100 IPM
X, Z SERVO MOTOR ...................... 1.6 HP
TAILSTOCK TAILSTOCK QUILL DIAMETER .... 1.75"
TAILSTOCK QUILL TAPER ................. 3MT
TAILSTOCK QUILL STROKE ................ 4.75"
FLOOR DIMENSIONS ...................... 81.5" X 53.5" X 66.3"
APPROXIMATE MACHINE WEIGHT ............ 2,750 LBS.
ACU-RITE TURN POWER CONTROL
THE TURNPWR IS A CONTOURING CONTROL THAT ENABLES YOU TO
PROGRAM CONVENTIONAL
MACHINING OPERATIONS RIGHT AT THE MACHINE IN AN EASY-TO-USE CONVERSATIONAL LANGUAGE.
12.1” COLOR LED DISPLAY, 1.4 GHZ DUAL CORE CELERON PROCESSOR, 2.5GB CFAST (SATS)
USER INTERNAL STORAGE.
DRO MODE
• MULTIPLE DATUMS (FIXTURE OFFSET):99
• ZERO RESET
• NEAR ZERO WARNING
PGM MODE
• THREAD CYCLES, RECESS CYCLES,
TURNING CYCLES
• POSITION/DRILL, LINE, ARC, BLEND
(BLEND/CHAMFER)
• ESTIMATED MACHINING TIME
• VIEW GRAPHICS: 2DLINE / 3D LINE /
3D SOLID
• BLOCK FORM W/USER OVERIDE
• REPLICATION (REPEAT)
• COMMENT STEP – EVENT COMMENTS
• PROGRAM MANAGER NAVIGATION TREE
W/PROGRAM TYPE FILTER
• LONG PROGRAM NAMES
• PROGRAM PREVIEW: LISTING AND
GRAPHIC W/ESTIMATED MACHINE TIME
• EXPLODE STEP: REPEAT
• REVERSE (STEP / PATH)
• SHIFT STEPS
• AUTO SAVE (PROGRAM)
• PROGRAM SIZE LIMIT (TPT ONLY):9999
STEPS
• DXF FILE IMPORT
• G-CODE PROGRAM: W/GRAPHICS
SUPPORT / SIMPLE EDIT
• ON SCREEN HELP: USER MANUAL
VIEWER (TEXT AND GRAPHICS)
• PARTS COUNTER AND CLOCK
• OPTIONAL STOP (G-CODE ONLY)
• FEED OVERRIDE BY POTENTIOMETER
• ERROR COMPENSATION: LINEAR AND
BIDIRECTIONAL NON-LINEAR
• COMMUNICATION PORTS – (2) USB AND
ETHERNET
* COOLANT SYSTEM
* 6-JAW BUCK CHUCK
* ALORIS QUICK CHANGE TOOLPOST w/HOLDERS
* 5 HORSE POWER SPINDLE MOTOR
