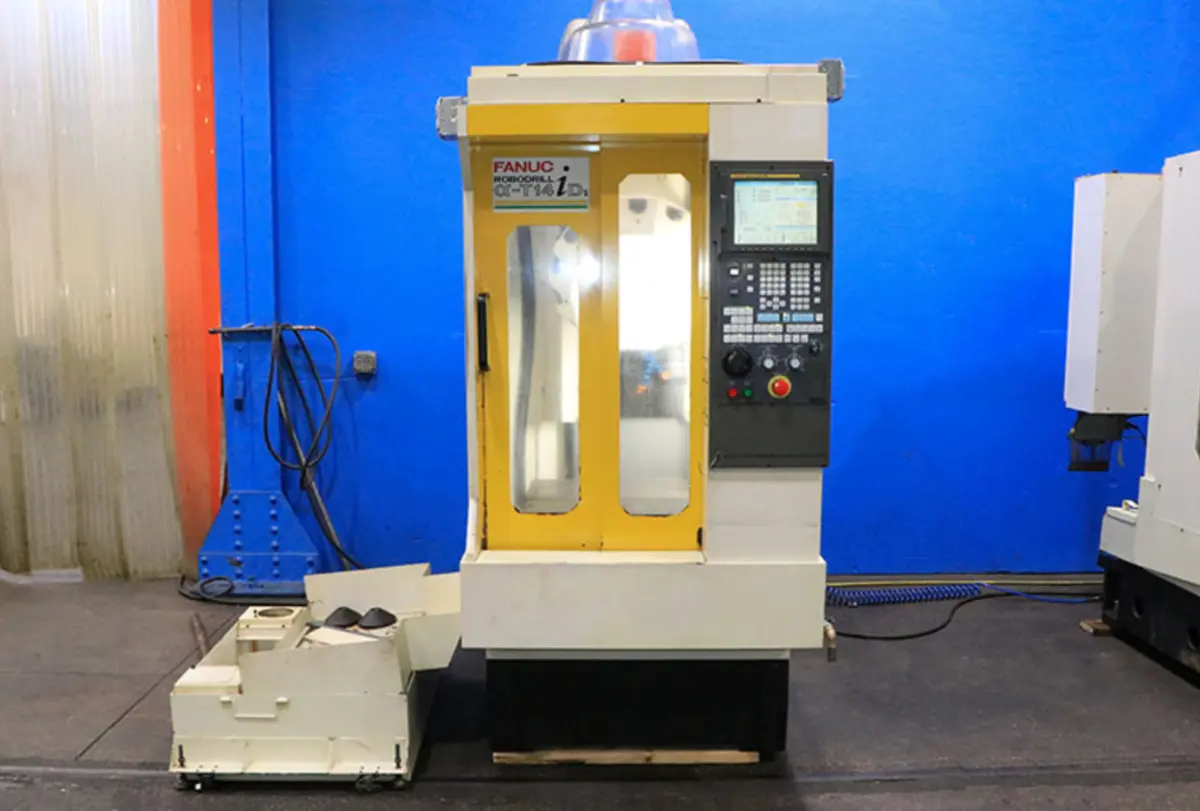

2004 FANUC ROBODRILL ALPHA T14IDS
Have one to sell?
ConditionUsed
1 available
Used drilling & tapping center. Table: 24.8"x13", travels: X/Y 11.8", Z 12.99". Spindle: BT30, 20,000 RPM; 14 ATC, 2,125 IPM rapid. Includes FANUC 16i-MB control, rigid tapping, coolant system. Machine weight: 4500 lbs.
TABLE SIZE ............................... 24.8" x 13"
X - AXIS TRAVEL .......................... 11.8" / 300mm
Y - AXIS TRAVEL .......................... 11.8" / 300mm
Z - AXIS TRAVEL .......................... 12.99" / 330mm
TABLE CAPACITY ........................... 440 LBS.
SPINDLE TAPER ............................ BT30
SPINDLE SPEED ............................ 20,000 RPM
TOOL STORAGE CAPACITY .................... 14 ATC
TOOL CHANGE TIME ......................... .9 SECS
RAPID TRAVERSE X,Y,Z ..................... 2,125 IPM
FLOOR SPACE WITH PALLET CHANGER .......... 40" x 86" x 90"
MACHINE WEIGHT ........................... 4500 LBS

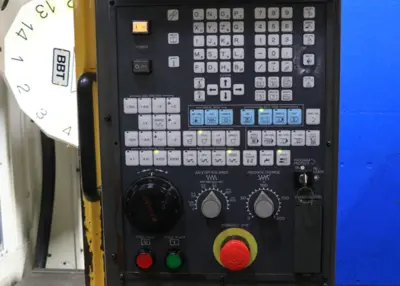

FANUC MODEL: 16i-MB CONTROL
RIGID TAPPING
COOLANT SYSTEM
