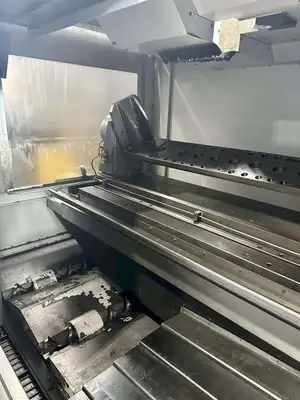

2010 HAAS VF-6SS

Axis............................................. 4
Table Length..................................... 64"
Table Width...................................... 28"
Table Load Capacity.............................. 2000 LBS
X-Axis (Longitudinal Travel)...................... 64"
Y-Axis (Cross Travel)............................. 32"
Z-Axis (Vertical Travel).......................... 30"
Max Clearance Tabletop to Spindle Nose.......... 34"
Min Clearance Tabletop to Spindle Nose............. 4"
Feed Rates, All Axes............................... 833 IPM
X-Axis Rapid Traverse Rate......................... 900 IPM
Y-Axis Rapid Traverse Rate.......................... 1200 IPM
Z-Axis Rapid Traverse Rate.......................... 1200 IPM
Spindle Power....................................... 40 HP
Max Spindle Speed.................................... 12,000 RPM
Spindle Taper........................................ CAT 40
Torque, Up To....................... 90 FT-LBS @ 2000 RPM
Automatic Tool Changer Capacity (ATC)............... 24
Automatic Tool Changer Style............... Side-Mount
Electrics............................................. 440/3/60
Approx Machine Dimensions.................. 204" x 108"
Approximate Machine Height.............................. 123"
Approximate Machine Weight................ 22,300 LBS
