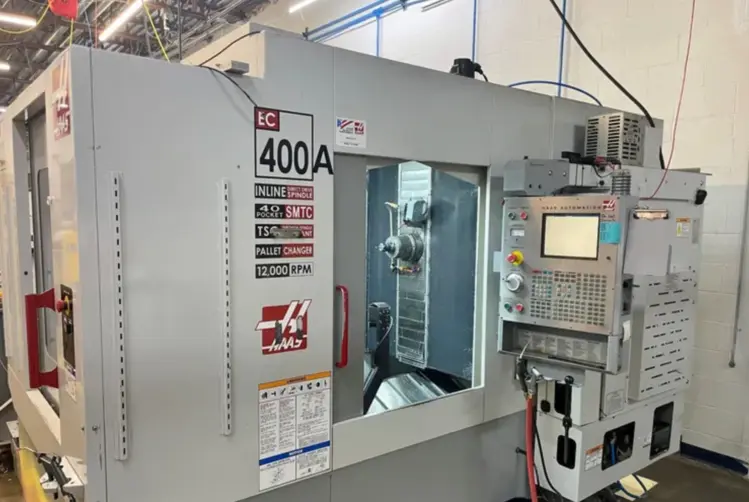

2005 HAAS EC-400
Have one to sell?
ConditionUsed
1 available
Used Horizontal Machining Center, fully equipped with a 4th axis, 12,000 RPM spindle, 40-position tool changer, and programmable coolant. Includes Renishaw probing, rigid tapping, chip conveyor. Ideal for aluminum, plastic, tool steel.
PALLET WIDTH 15.75"
PALLET LENGTH 15.75"
PALLET INDEXING FULL 4TH
X-AXIS TRAVEL 20"
Y-AXIS TRAVEL 20"
Z-AXIS TRAVEL 20"
SPINDLE SPEED 12,000 RPM
SPINDLE MOTOR 30 hp
SPINDLE TAPER CAT 40
TOOL POSITIONS (ATC) 40
FULL 4TH AXIS
300 PSI THROUGH-SPINDLE COOLANT (ROTARY UNION NEEDS TO BE REPLACED)
RENISHAW PROBING SYSTEM
12,000 RPM SPINDLE
40-POSITION TOOL CHANGER
PROGRAMMABLE COOLANT
REMOTE JOG HANDLE
CHIP CONVEYOR
COORDINATE ROTATION & SCALING
(8) SPARE M FUNCTIONS
SPINDLE ORIENTATION
VISUAL QUICK CODE
RIGID TAPPING
MACROS
USB PORT
MACHINE CUT PRIMARILY ALUMINUM, PLASTIC & TOOL STEEL
CHICK TOMBTONES & TOOL HOLDERS SHOWN IN PHOTOS ARE NOT INCLUDED WITH THE MACHINE
