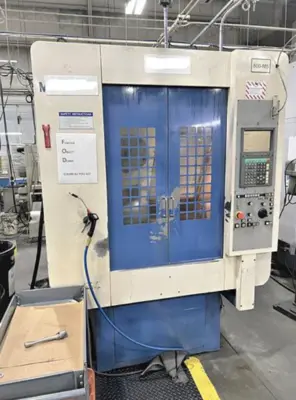

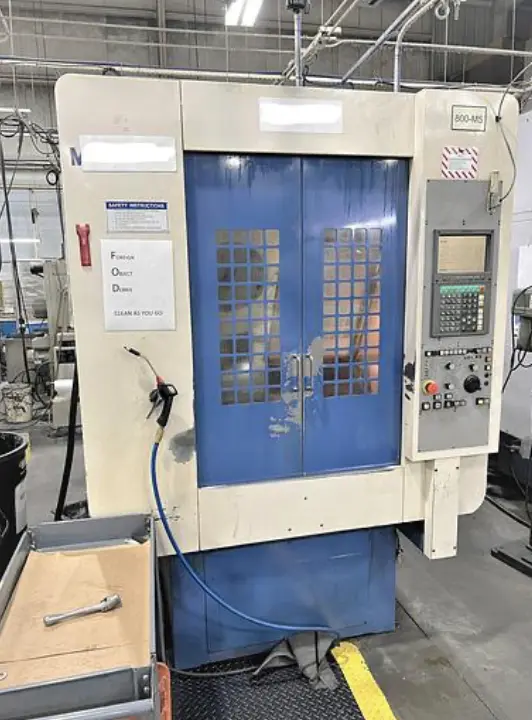

2000 MIYANO MTV-C410

Drilling & Tapping Centers
Manufacturer:
MIYANO
Model:
MTV-C410
Year:
2000
Stock #:
X3X1535
Drilling & Tapping Center, used but packed with features. Specs: X/Y/Z: 15.76"/11.82"/11.82", 8,000 rpm spindle, 10-station tool changer. Equipped with rigid tapping, coolant system, and 42 BT 40 tool holders.

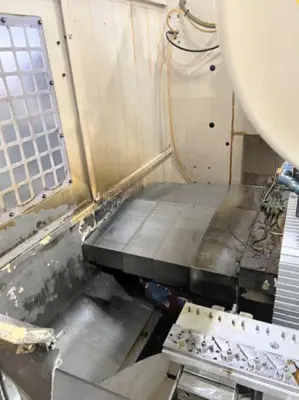

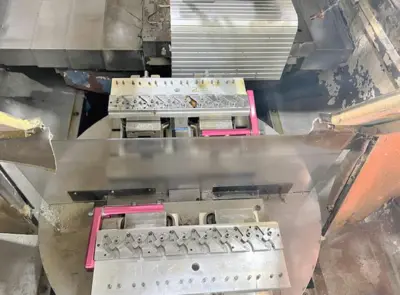

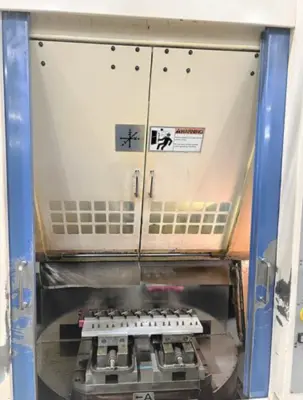

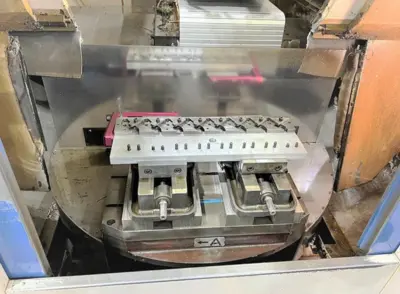

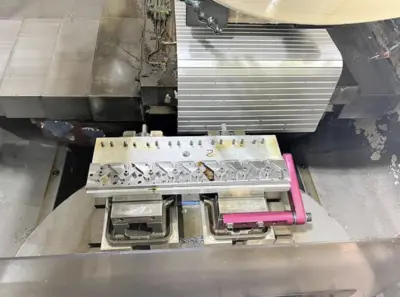

Table Size 19" x 14.25" (2) Pallets
Maximum Table Load 220 lbs.
Table Indexing Time 2.3 seconds
Distance Spindle Nose to Table Top 9.85" - 21.67"
X-Axis Travel 15.76"
Y-Axis Travel 11.82"
Z-Axis Travel 11.82"
Spindle Taper BT #40
Spindle Speed 8,000 rpm
Spindle Motor 7.3 HP
Tool Magazine Capacity 10 Station Tool Changer
Maximum Tool Diameter / Length / Weight 3.15" / 7.88" / 8.8 lbs.
Tool Change Time Chip to Chip 2.5 seconds
Tool Change Time Tool to Tool 1.2 seconds
Rapid Traverse Rates X, Y / Z 1891 IPM / 1418 IPM
Machine Dimensions LxWxH 104" x 60" x 89"
Machine Weight 6,820 lbs.

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

Rigid Tapping (maximum tapping speed 5,000 rpm)

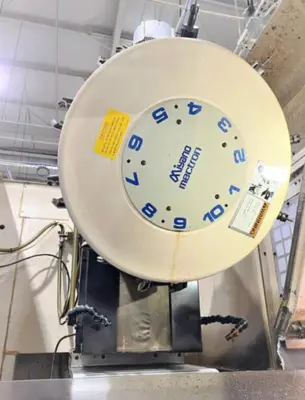

10 Station Tool Changer

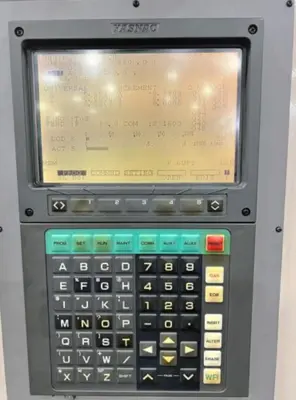

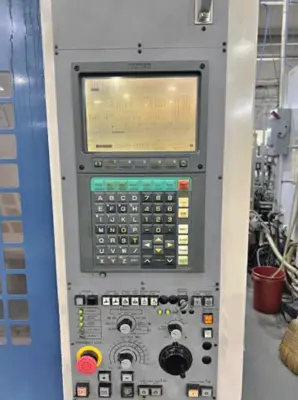

RS 232 Port Interface

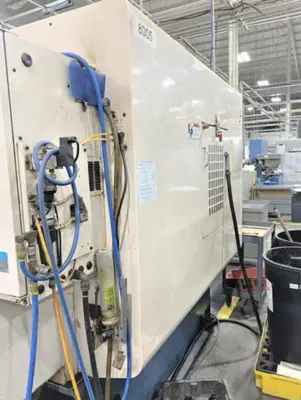

Flood Coolant System

Air Blow on Spindle

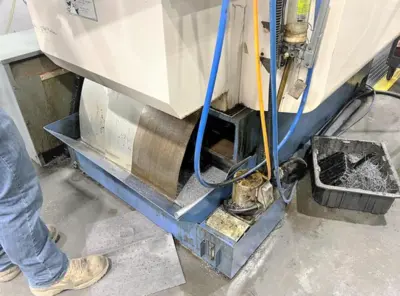

Coolant Tank with Pump

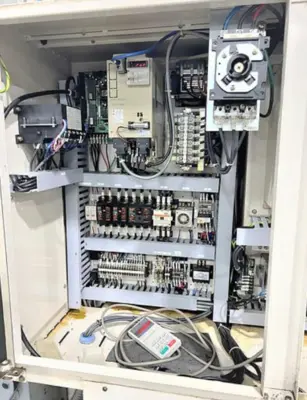

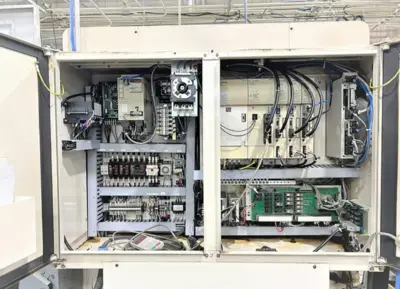

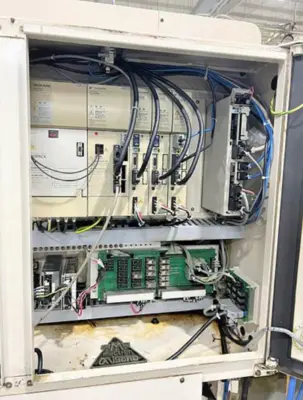

Wired 230V Electrics
All Available Manuals

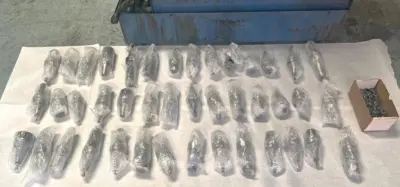

(42) BT 40 Tool Holders Included (Kennemetal, Nikken, Etc.)

This equipment is currently unavailable. Similar equipment available now is shown below.
