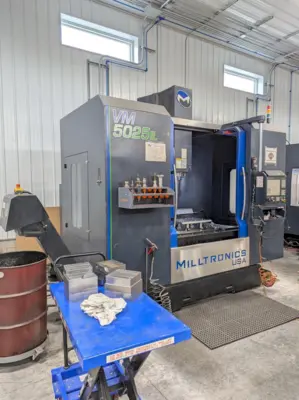

2018 MILLTRONICS VM5025IL
Have one to sell?
ConditionUsed
1 available

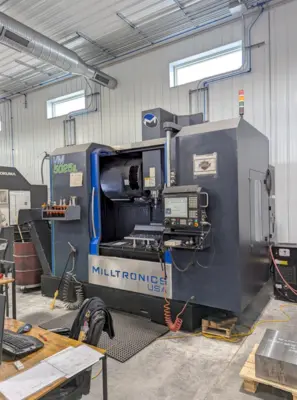

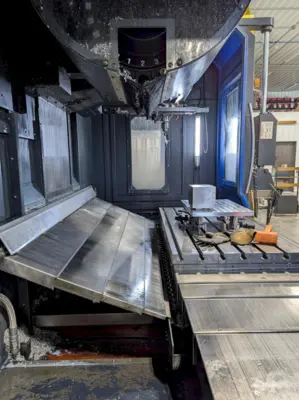

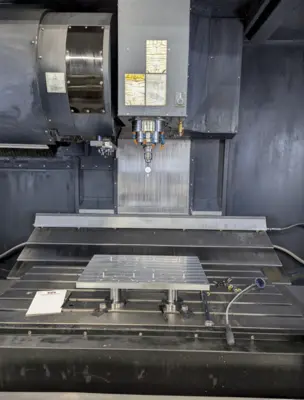

Used Vertical Machining Center. Features include 24 hp, 10,000 RPM, 50"x25"x24" travel, 54"x25" table, Milltronics 9000 Control, chip conveyor, and enclosed guards. I
Allowable Table Load - 3000 lbs.
T-Slot Size - .71"
Spindle Nose to Table - 6" to 30"
Column to Spindle Center - 28.7"
Spindle Taper - Big Plus ISO No. 40
Standard Spindle Speed - 10,000 rpm
AC Spindle Motor - 24/15 HP
ATC # of Tools - 24 Double Arm
Tool Shank - CT40
Pull Stud - MAX 60 deg Retention Knob Style CT-Flange
Max Tool Diameter - 3.1"
Max Tool Length - 11.8"
Max Tool Weight - 15 lbs.
XY, Z Axis Rapid Traverse Rate - 1000 , 787 ipm
Max Cutting Feed Rate - 500 ipm
Least Command Increment - 0.0001"
Axis Thrust Force XY, Z - 6020 , 8575 lbs
Machine Height - 122"
Floor Space Required - 128" x 103"
Additional Width for Conveyor - 166"
Machine Weight - 17,900 lbs.
Milltronics 9000 Control

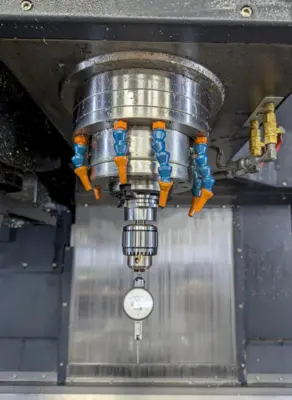

Inline Spindle
Chip Conveyor
Fully Enclosed Machine Guard with Side Doors

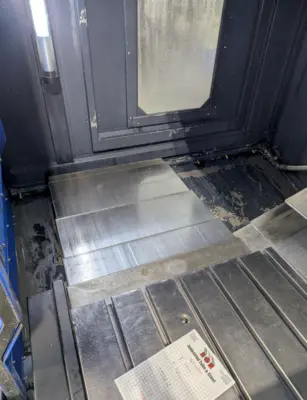

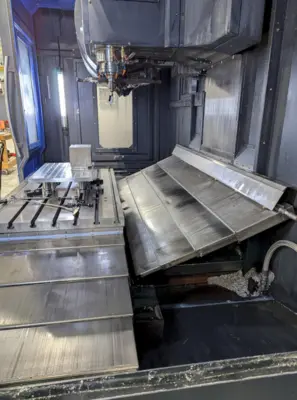

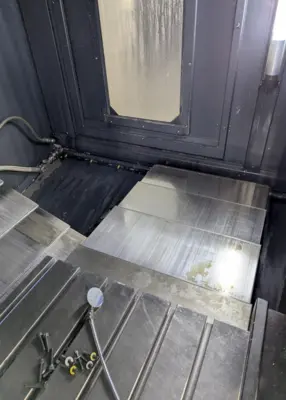

Telescopic Metal Way Guards
AC Digital Servos
Dual Work Lights
Spindle Taper Blow-out and Tool Release Push Button
Programmable on/off Flood Coolant
Rigid Tap
Spindle Load Meter
Feedrate and Spindle Speed Overrides
Spindle Air Purge
