2017 SMEC SL 2000ASY
Have one to sell?
ConditionUsed
1 available

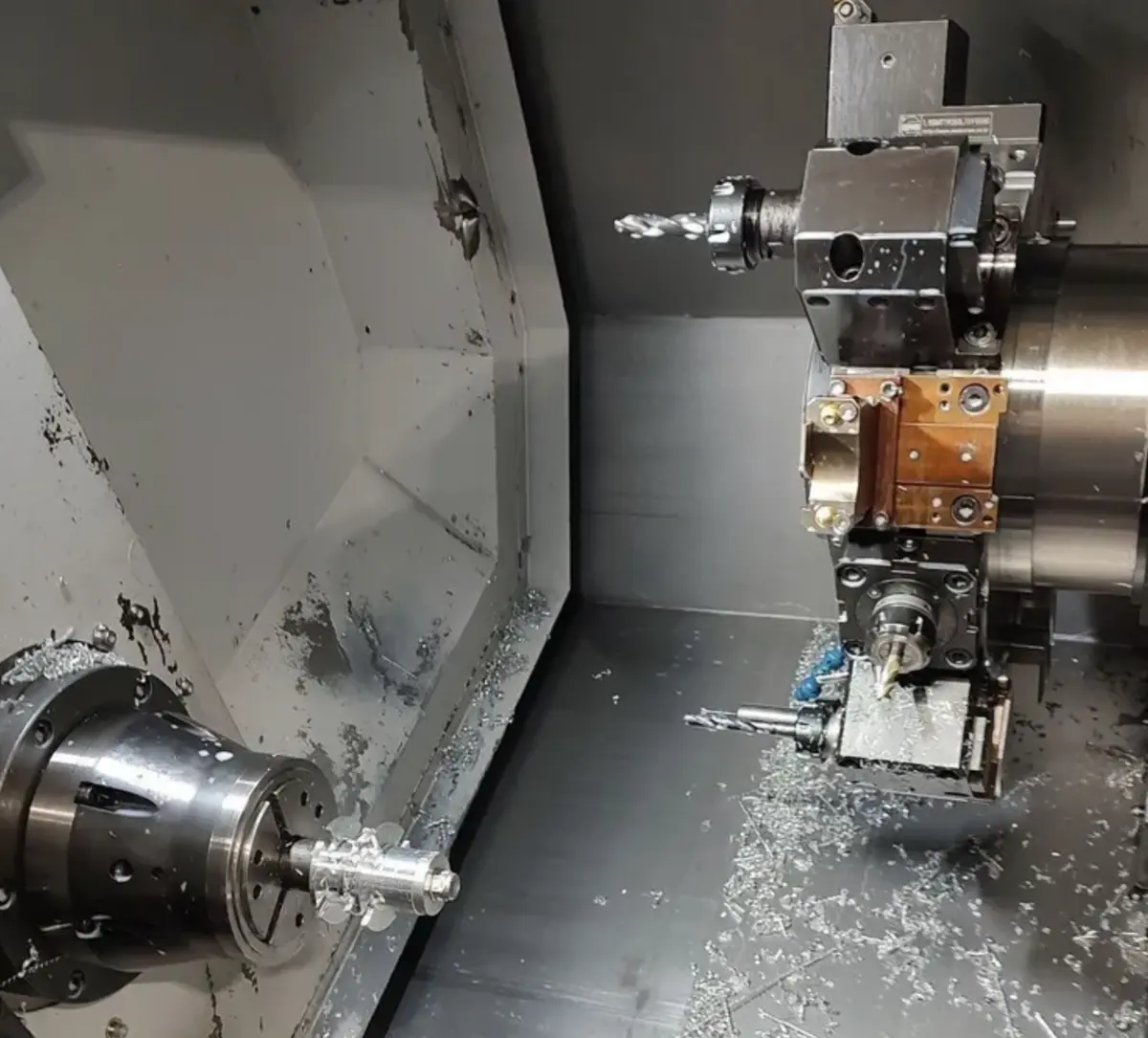

CNC lathe, 4-axis, 6" chuck, 2" bar capacity, 25 hp, Max RPM 6,000. Equipped with Fanuc 0i-TF, sub-spindle, parts catcher, tool setter, chip conveyor, static/2 live tool holders.
Bar Capacity(main/sub) 2.05/1.42
Chuck size(Main/Sub) 6/6
Spindle speed(Main/Sub) 6,000/6,000
Spindle nose(Main/Sub) A2-5/A2-5
Main Spindle motor(cont./30min) 25/15
Sub Spindle motor(cont./30min) 10/7.5
Rapid traverse(X/Y/Z/ZB) 945/394/1,181/945
Axis travel(X/Z) 9.25/4.13/22.83/22.83
Number of tool positions 12(BMT55)
Fanuc 0i-TF
SUB-SPINDLE
PARTS CATCHER
TOOL SETTER
CHIP CONVEYOR
STATIC TOOL HOLDERS
2 LIVE TOOL HOLDERS
