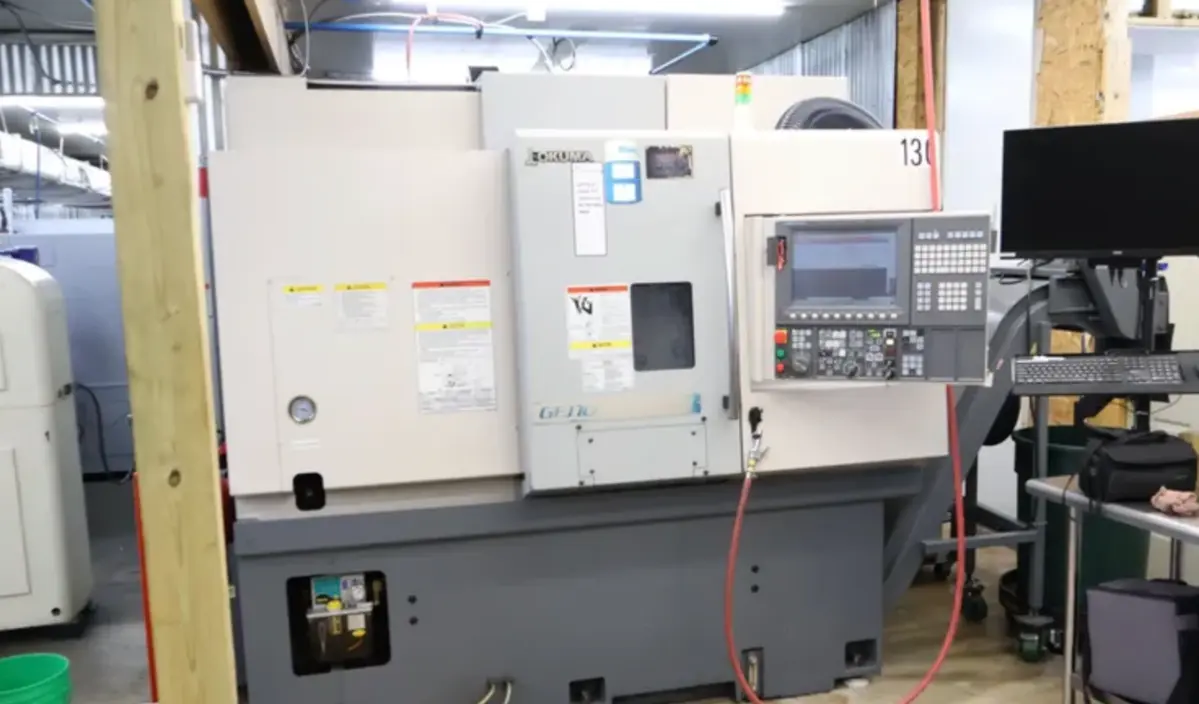

2013 OKUMA GENOS L300MY
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe, equipped with OSP-P200LA-R CNC control, Kitagawa hydraulic chuck, mist collector, and more. Features live milling, 12 turret capacity, and manual tailstock. Dimensions: 101"x84"x88". Operating: 12,101 hrs.
SWING OVER BED 20.47"
MAX CUTTING DIAMETER 11.81"
X-AXIS TRAVEL 9"
Y-AXIS Yes
Z-AXIS TRAVEL 17.7"
CHUCK SIZE 10"
BAR CAPACITY 2.75"
SPINDLE NOSE A2-8
SPINDLE MOTOR 30 hp
SPINDLE SPEED 3,000 RPM
TURRET CAPACITY 12
LIVE MILLING Yes
LIVE MILLING SPEED 4,500 RPM
Dimensions 101" x 84" x 88"
Weight 11,000 LBS
OSP- P200LA-R CNC CONTROL
KITAGAWA B210 3-JAW HYDRAULIC CHUCK
TOUCHSETTER

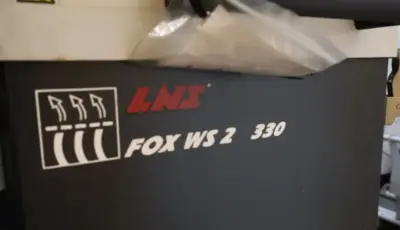

LNS FOX WS 2 330 MIST COLLECTOR
OIL FILTRATION SYSTEM
MACHINE WILL COME WITH MISC BORING AND CUTTING HOLDERS, IN ADDITION TO (2) RADIAL AND (2) AXIAL LIVE HOLDERS
MANUAL TAILSTOCK W/PROGRAMMABLE QUILL
MACHINE PRIMARILY CUT ALUMINUM, SOME STEEL, COMING OUT OF SINGLE SHIFT SHOP
HOURS OF USE AS OF 3/27/2025:
* OPERATING: 12,101 HOURS
* CUTTING: 9,932 HOURS
