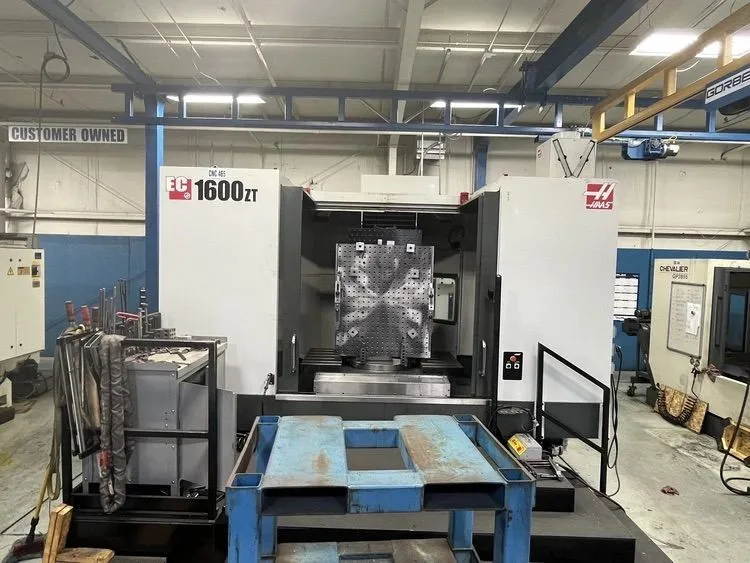

2015 HAAS EC-1600ZT

TRAVELS S.A.E METRIC
X Axis: 64.0 in 1626 mm
Y Axis: 50.0 in 1270 mm
Z Axis: 40.0 in 1016 mm
Spindle Centerline to Table: 11.97 in 304 mm

SPINDLE S.A.E METRIC
Max Rating: 30.0 hp 22.4 kW
Max Speed: 7500 rpm 7500 rpm
Max Torque: 340.0 ft-lbf @ 700 rpm 460.0 Nm @ 700 rpm
Drive System: 2-Speed Gearbox 2-Speed Gearbox
Taper: CT or BT 50

TABLE S.A.E METRIC
Length: 64.0 in 1626 mm
Width: 36.0 in 914 mm
T-Slot Width: 0.626 in to 0.630 in - 15.90 mm to 16.00 mm
T-Slot Center Distance: 4.92 in 125 mm
Number of Std T-Slots: 7
Max Weight on Table (evenly distributed): 10000 lb 4536 kg

INTEGRATED 4TH AXIS (B AXIS) S.A.E METRIC
Table: 64 in x 32 in 1626 mm x 813 mm
Platter Diameter: 30.00 in 762 mm
Travel: 360 ° 360 °
Max Part Swing: 78.0 in 1981 mm
Max Weight on Platter: 10000 lb 4536.0 kg
Max Rating: 5.0 hp 3.7 kW
Rotational Torque (continuous) 2000 ft-lbf 2712 Nm
Backlash: 30 arc-sec 30 arc-sec
Brake Torque: 4000 ft-lbf 5423 Nm
Min Resolution: 0.001 ° 0.001 °
Indexing Accuracy: ± 30 arc-sec ± 30 arc-sec
Repeatability: 15 arc-sec 15 arc-sec
Rapids on B: 36 °/sec 36 °/sec
Max Cutting B: 36 °/sec 36 °/sec
Spindle Centerline to Table: 5.75 in 146 mm

FEEDRATES S.A.E METRIC
Max Cutting: 500 ipm 12.7 m/min
Rapids on X: 600 ipm 15.2 m/min
Rapids on Y: 600 ipm 15.2 m/min
Rapids on Z: 600 ipm 15.2 m/min

AXIS MOTORS S.A.E METRIC
Max Thrust X: 4000 lbf 17793 N
Max Thrust Y: 8000 lbf 35586 N
Max Thrust Z: 8000 lbf 35586 N

GENERAL S.A.E METRIC
Coolant Capacity: 95 gal 360 L

TOOL CHANGER S.A.E METRIC
Type: SMTC
Capacity: 50+1
Max Tool Diameter (full): 4.0 in 102 mm
Max Tool Diameter (adjacent empty): 10.0 in 254 mm
Max Tool Length (from gage line): 20 in 508 mm
Max Tool Weight 30 lb: 13.6 kg
Tool-to-Tool (avg): 8.0 s 8.0 s
Chip-to-Chip (avg): 12.6 s 12.6 s

AIR REQUIREMENTS S.A.E METRIC
Air Required: 9 scfm @ 100 psi 255 L/min @ 6.9 bar
Inline Air Hose: 3/8 in 3/8 in
Coupler (Air): 3/8 in 3/8 in
Air Pressure Min: 80 psi 5.5 bar

ELECTRICAL SPECIFICATION S.A.E METRIC
Spindle Speed: 7500 rpm
Drive System: 2-Speed Gearbox
Spindle Power: 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low: 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC
Full Load Amps (3 Phase) - High* 35 A
