2023 WEILER E90 x 236"
Have one to sell?
ConditionUsed
1 available

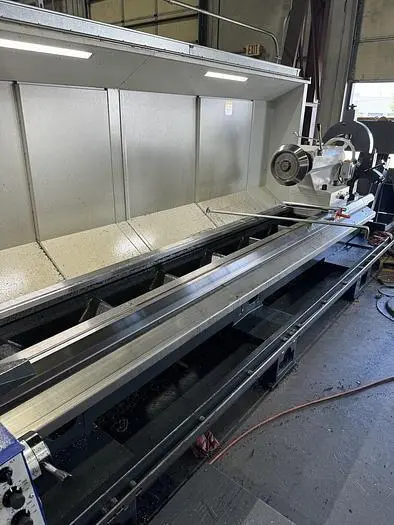

2023 WEILER E90 x 236" CNC Lathe used but powerful; 35.43" max swing, 236" centers, AC 60/50 hp motor, 1-500 rpm. Equipped with Weiler ONE1 CNC, quick-change tool post, 4-jaw chuck, steady rest, and more.
Max Swing 35.43"
Max Swing over Cross Slide 23.23"
Distance Between Centers 236"
Main Motor (2 Gear Stages) AC 60/50 hp
Total Speed 1 ~ 500 rpm
Spindle Nose 20
Spindle Bore Dia. 14.25"
Weiler ONE1 Conversational CNC Control
Parat Size 4 Quick Change Indexable Tool Post
4 x WDR 4/40 Turning & Facing Holders
2 x WB 4/60 Ø 2.0” Diameter Boring Bar Holders
32” 4-Jaw Oil Country Independent Chuck w/ 14.37” Hole (Front)
32” 4-Jaw Oil Country Independent Chuck w/ 14.37” Hole (Rear)

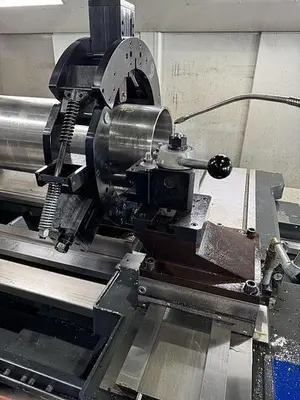

Steady Rest with Roller Jaws 8.66”-15.75” diameter
Rear Quill adjustable from front
Extended Quills for Roller Jaws 0.787”-8.66” diameter
Chip Conveyor for 236” Center Distance Machine
Removable 4” diameter Boring Bar Block
Increased Capacity Coolant
