2009 MAZAK Quick Turn Nexus 350 MSY W/ (7) LIVE TOOL HOLDERS
Have one to sell?
ConditionUsed
1 available
2009 MAZAK Quick Turn Nexus 350 MSY CNC Lathe with MAZATROL MATRIX NEXUS Control, Y-axis, live milling, and sub spindle. Features 15” chuck, 4-axis, 3,300 RPM, and 30 hp spindle. Includes bar feeder, parts catcher, and high-pressure coolant system.
SWING OVER BED - 29.5"
MAX CUTTING DIAMETER - 14.75"
MAX CUTTING LENGTH - 25.6"
X-AXIS TRAVEL - 11.75"
Y-AXIS - Yes
Y-AXIS TRAVEL - 4" (+/- 2")
Z-AXIS TRAVEL - 26.25"
CHUCK SIZE- - 15"
BAR CAPACITY - 4"
SPINDLE BORE - 4.4"
SPINDLE NOSE - A2-11
SPINDLE MOTOR - 30 hp
SPINDLE SPEED - 3,300 RPM
SUB SPINDLE - Yes
SUB SPINDLE - CHUCK SIZE - 10"
SUB SPINDLE - SPINDLE NOSE - A2-8
SUB SPINDLE - SPINDLE MOTOR - 20 hp
SUB SPINDLE - SPINDLE SPEED - 4,000 RPM
TURRET CAPACITY - 12
LIVE MILLING - Yes
LIVE MILLING SPEED - 4,000 RPM

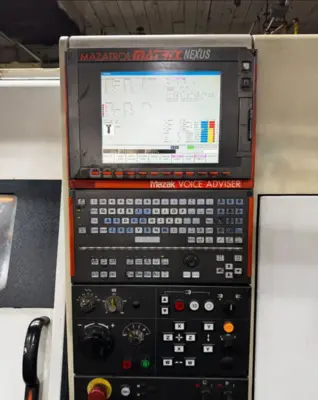

MAZATROL MATRIX NEXUS CONTROL (VOICE ADVISER)
LNS QUICK LOAD SERVO S3 MAGAZINE BAR FEEDER (5’)
Y-AXIS
LIVE MILLING
SUB SPINDLE
HAINBUCH COLLET CHUCK (MAIN)
15”, 3-JAW ATS (400-128) HYDRAULIC CHUCK (MAIN)
10” 3-JAW KITAGAWA (B-210) HYDRAULIC CHUCK (SUB)
MAZAK SUPERFLOW T8-1000 HIGH-PRESSURE COOLANT SYSTEM (1,000 PSI)
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
PARTS CONVEYOR
(7) LIVE TOOL HOLDERS
