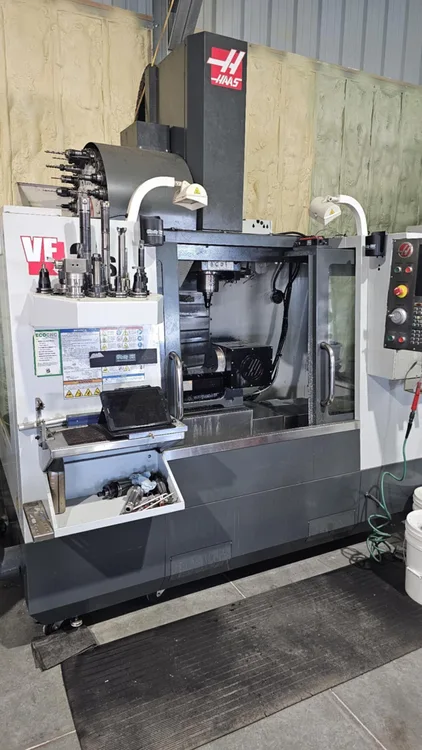

2010 HAAS VF-2SS
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center: 30"x16"x20" travel, 30 hp, 12,000 RPM, 24+1 tool changer, 40 taper, and WIPS 4th Axis. Table 36"x14", max load 1500 lbs. Spindle power 22.4 kW, coolant 55 gal, dimensions 106"x101"x101". Weight 7,800 lbs.
12000 RPMS 24+1 Tool Changer
Spindle: 12,000-rpm, inline direct-drive spindle.
Taper: 40 Taper.
Tool Capacity: 24+1.
Tool Changer: Ultra-fast side-mount tool changer.
Axes & Travel:
Axis: 3 Axis.
X-Axis Travel: 30 in).
Y-Axis Travel: 16 in).
Z-Axis Travel: 20 in).
Table & Capacity:
Table Size: 914.4 mm x 355.6 mm (36 in x 14 in).
Max. Table Load: 1500 lbs (680.6 kg).
Max. Part Weight: 1500 lbs (680.6 kg).
Other Specifications:
Spindle Motor Power: 22.4 kW.
Max. Spindle Speed: 12000 rpm.
Coolant Capacity: 55 gallons.
Dimensions: 106 in x 101 in x 101 in.
Weight: 7,800 lbs.
WIPS 4th Axis
