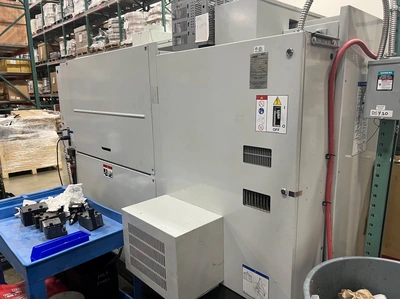

2019 HAAS DS-30Y

Swing Diameter
Over Front Apron 31.8 in
Over Cross Slide 20.8 in
Over Second Spindle 21.8 in
Capacities
Max Cutting Diameter (varies with turret) 18.0 in
Max Cutting Length (varies with workholding) 23.0 in
Bar Capacity 3.00 in
Travels
X Axis Travel 12.5 in
Z Axis Travel 23.0 in
Y-Axis Travel +/- 2.00”
Feedrates
Rapids on X 472 ipm
Rapids on Y 472 ipm
Rapids on Z 945 ipm
Main Spindle
Spindle Nose A2-6
Drive System Direct Speed, Belt Drive
Max Rating 30.0 hp
Max Speed 4500 rpm
Max Torque 275 ft-lbf @ 600 rpm
Spindle Bore 3.50 in
Main Spindle C Axis
Max Rating 5.0 hp
Positioning (±) 0.01 °
Secondary Spindle
Spindle Nose A2-5
Drive System Direct Speed, Belt Drive
Max Rating 20.0 hp
Max Speed 4800 rpm
Max Torque 110 ft-lbf @ 700 rpm
Spindle Bore ø 2.00 in
Bar Capacity 2.00 in
Secondary Spindle Positioning
Control Type Positioning Only
Turret
Number of Tools 24-Station
OD vs ID Tools Any Combination (will vary with turret)
Live Tooling
Max Speed 6000 rpm
Tooling BMT65
Dimensions - Shipping
Domestic Pallet 171 in x 90 in x 92 in
Weight 16000 lb
