2012 HAAS DS-30SS
Have one to sell?
ConditionUsed
1 available

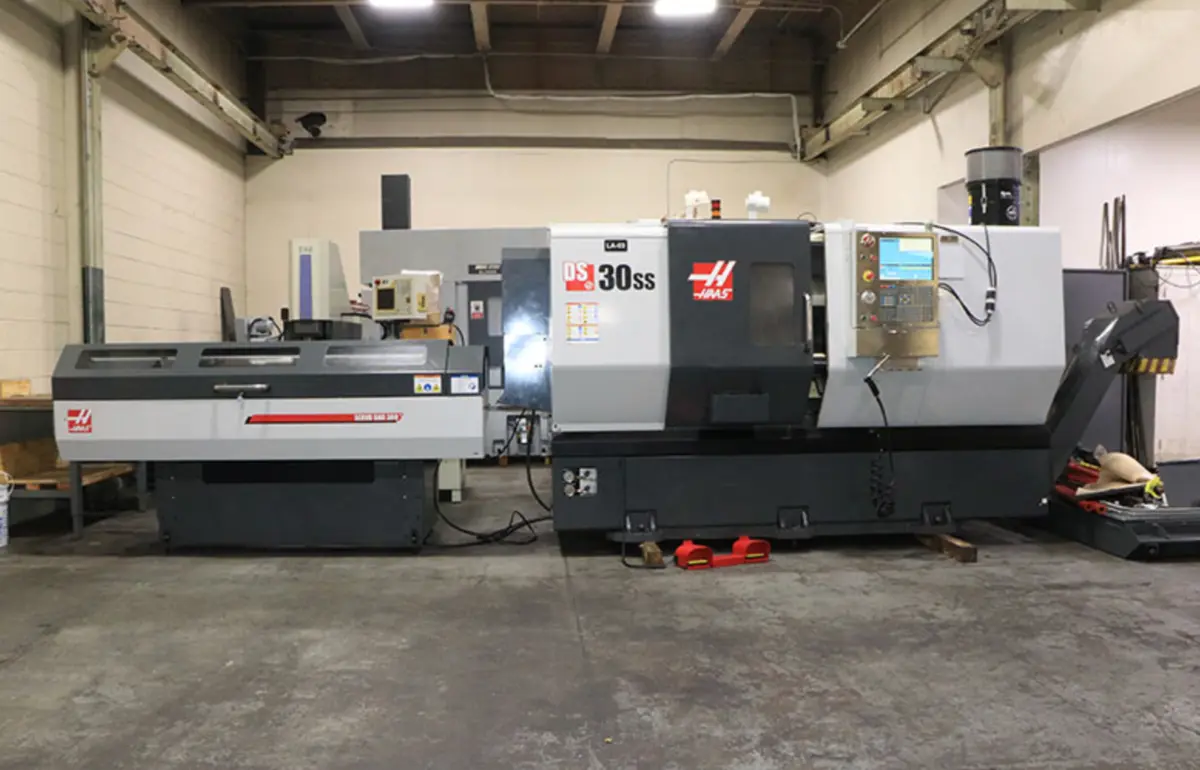

Used CNC lathe offers precision with 31.75" swing, 26.11" max turning length, and 4,800 RPM spindle speeds. Equipped with HAAS CNC control, barfeeder, and toolsetter. Features include twin spindles, chip conveyor.
SWING OVER BED ........................ 31.75"
SWING OVER CROSS SLIDE ................ 20.75"
MAXIMUM TURNING DIAMETER .............. 16"
MAXIMUM TURNING LENGTH ................ 26.11"
X-AXIS TRAVEL ......................... 12.5"
Z-AXIS TRAVEL ......................... 26"
SPINDLE SPEED, MAIN/SUB SPINDLE ....... 4,800 RPM
SPINDLE BORE .......................... 2.44"
SPINDLE NOSE, MAIN .................... A2-6
SPINDLE MOTOR, MAIN ................... 30 HP
SPINDLE NOSE, SUB ..................... A2-5
SPINDLE MOTOR, SUB .................... 20 HP
HAAS CNC CONTROL
MAIN SPINDLE & SUB-SPINDLE
12-STATION TURRET WITH 24-TOTAL POSITIONS
HAAS BARFEEDER - MODEL BAR 48B
TOOLSETTER
ROYAL QUICK-GRIP 42, A2-6 COLLET CHUCK ON MAIN SPINDLE
ROYAL QUICK-GRP. 42, A2-5 COLLET CHUCK ON SUBSPINDLE
AUTO CHIP BLAST
HIGH PRESSURE COOLANT
RIGID TAPPING
SPINDLE ORIENTATION
PARTS CATCHER
HENNIG CHIP CONVEYOR
ROYAL MIST MIST FILTER

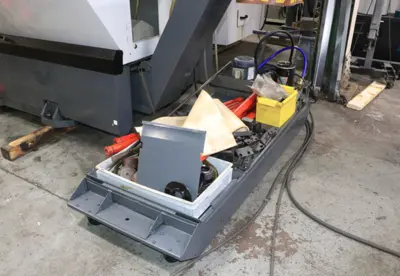

MISCELLANEOUS TOOLING
SPINDLE LINERS
