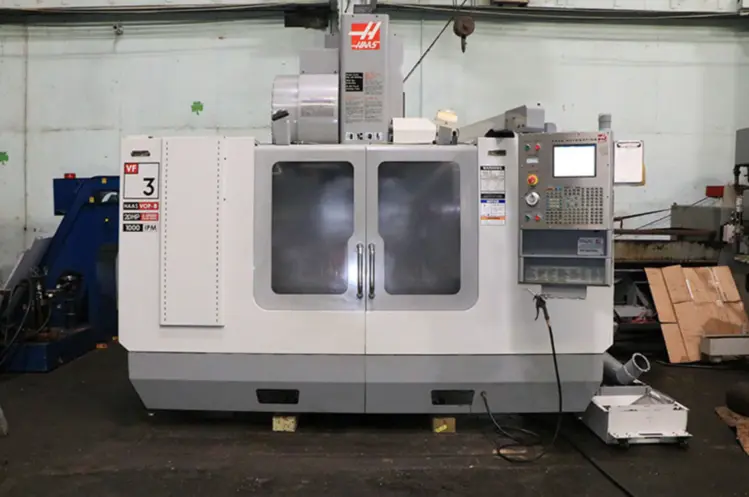

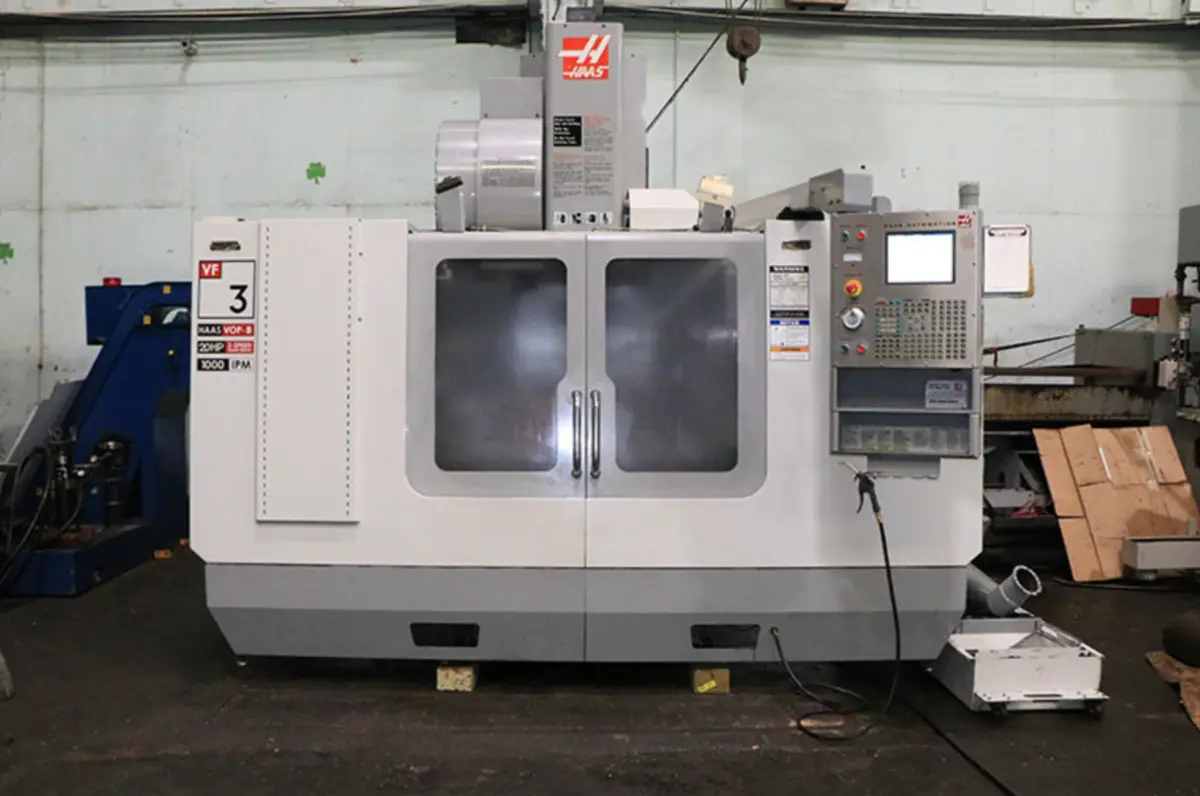

2005 HAAS VF-3B
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center. Features 40"x20"x25" travels, 20 hp spindle, and 7,500 RPM. Includes HAAS 4-Axis Control, 4th Axis drive, chip auger, and programmable coolant. 24-position tool changer and CAT-40 taper.
X-AXIS TRAVEL ................. 40" 1016mm
Y-AXIS TRAVEL ................. 20" 508mm
Z-AXIS TRAVEL ................. 25" 635mm
TABLE SIZE .................... 48" X 18"
SPINDLE NOSE TO TABLE ......... 4 - 29"
TABLE DIMENSIONS .............. 48" x 18"
MAX WEIGHT ON TABLE ........... 3,500 LBS
SPINDLE TAPER SIZE ............ #40 TAPER (CAT)
SPINDLE SPEED RANGE ........... 0 - 7,500 RPM
TRANSMISSION .................. 2-SPEED GEARED HEAD
SPINDLE MOTOR ................. 20 HP VECTOR DRIVE
SPINDLE TAPER ................. CAT#40
RAPID TRAVERSE ................ 1000 IPM
TOOL CHANGER .................. 24 POSITION
APPROXIMATE MACHINE WEIGHT..... 12,500 LBS
FLOOR SPACE REQUIRED .......... 110"F-B, 118" L-R
MAXIMUM MACHINE HEIGHT ........ 117.5"
- HAAS 4-AXIS CONTROL
- 4TH AXIS DRIVE & WIRING
- 2-SPEED GEAR BOX
- CHIP AUGER
- PROGRAMMABLE COOLANT
- SIDE MOUNTED TOOL CHANGER
- HIGH INTENSITY LIGHTING
- 20 HORSE POWER SPINDLE DRIVE
